WAGO

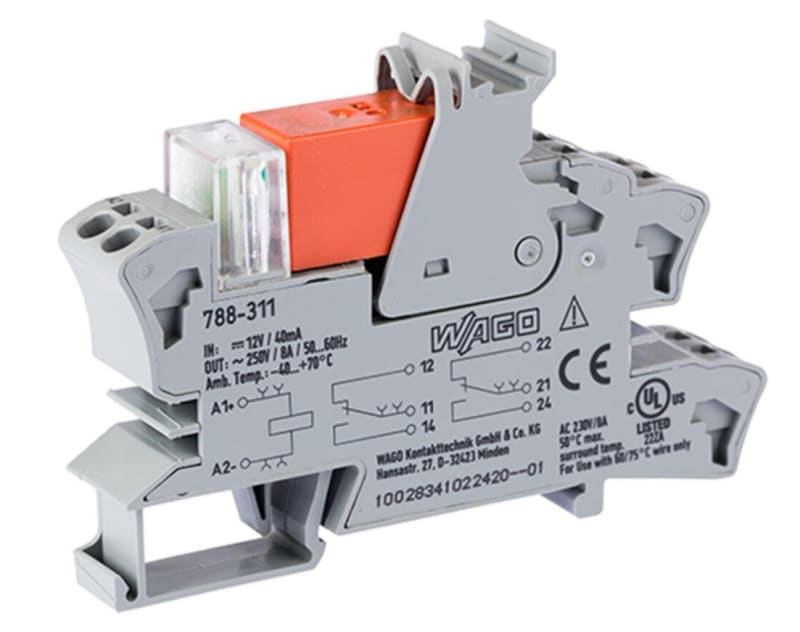

Relay module, Nominal input voltage: 12 VDC, 2 changeover contacts, Limiting continuous current: 8 A
Part number788-311EAN / GTIN4055143184120HS code8536.49
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 788-311 Manufacturer description: Relay module; Nominal input voltage: 12 VDC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray. Relaymodule; Nominal input voltage: 12 VDC; 2 changeover contacts; Limited continuous current: 8 A.
Technical Specifications
- Manufacturer part number (MPN)
- 788-311
- EAN / GTIN
- 4055143184120
- Sales unit
- pcs
- Note
- Reinforced insulation between coil and contacts | To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
- Rated Voltage
- 250 V
- Rated impulse withstand voltage
- 4 kV
- Pollution degree
- 3
- Dielectric strength (control/load circuit) (AC, 1 min)
- 5 kVrms
- Dielectric strength (open contact) (AC, 1 min)
- 1 kVrms
- Dielectric strength (load/load circuit) (AC, 1 min)
- 2.5 kVrms
- Protection type
- IP20
- Connection technology
- Push-in CAGE CLAMP®
- Solid conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
- Width
- 15 mm / 0.591 inches
- Height
- 86 mm / 3.386 inches
- Depth from upper-edge of DIN-rail
- 54 mm / 2.126 inches
- Mounting type
- DIN-35 rail
- Color
- gray
- Fire load
- 0.67 MJ
- Weight
- 45.4 g
- Ambient temperature (operation at UN)
- -40 … +70 °C
- Ambient temperature UL (operation at UN)
- -40 … +50 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Processing temperature
- -25 … +50 °C
- Temperature range of connection cable
- ≥ (Tambient + 20 K)
- Standards/specifications
- EN 61010-2-201 | EN 61810-1 | EN 61373 | UL 508
- WAGO Basic Relay
- 788-152
- Product Group
- 6 (INTERFACE ELECTRONIC)
- PU (SPU)
- 20 (1) pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85364900990
- UNSPSC
- 39,122,334
- eCl@ss 10.0
- 27-37-16-01
- eCl@ss 9.0
- 27-37-16-01
- ETIM 9.0
- EC001437
- ETIM 10.0
- EC001437
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- SCIP notification number (Austria)
- 6cb17f3d-a438-4180-947f-430dbc9c5622
- SCIP notification number (Belgium)
- f5ee941f-e9d8-4cfc-ab36-c2dbe3aa2603
- SCIP notification number (Bulgaria)
- 42048296-e89b-4a19-8cc8-c329f22cd90c
- SCIP notification number (Czech Republic)
- 12684f0d-ed36-4226-bcc3-6f9f1e3c12e8
- SCIP notification number (Denmark)
- 8d6dd953-b583-4558-95b2-154cd93ef817
- SCIP notification number (Finland)
- 411ef4a0-8b14-4733-bfee-0a07c8ab569d
- SCIP notification number (France)
- 576c1a8d-b2f1-45cc-bc30-a1ec7a13f9d3
- SCIP notification number (Germany)
- 3aed2e25-4110-44b8-b215-d3bfbc882a24
- SCIP notification number (Hungary)
- 35607a4c-44e5-44c9-ac03-b94610697251
- SCIP notification number (Italy)
- ee02c7f0-8a4e-4812-a3ff-20672aa15ac9
- SCIP notification number (Netherlands)
- 0b7ded81-a4f9-4300-86c0-d4c7ceb401c2
- SCIP notification number (Poland)
- ec289dc0-b26a-4fdd-bf55-f033332566cc
- SCIP notification number (Romania)
- 8c5dd94a-0b6d-4d59-8d75-24f638fe372f
- SCIP notification number (Sweden)
- 51d232f7-c7af-4143-872d-16428ba97485
- Rated current
- 8 A
- MPN
- 788-311
- Operating voltage DC
- 11–13 V
- Max. starting current
- 8 A
- Voltage type (operating voltage)
- DC
- Type of electric connection
- Spring clamp connection
- With detachable clamps
- No
- Nominal current
- 8 A
- Rated control supply voltage DC
- 11–13 V
- Voltage type for actuating
- DC
- Drive, polarization
- Polarized
- Drive, switching attitude
- Mono stable
- Number of contacts as change-over contact
- 2
- With forced-guided contacts
- No
- Type of switch contact
- Single contact
- Complete with socket
- Yes
- With LED indication
- Yes
- Material of contact surface
- Silver
- Degree of protection (IP)
- IP20
- Depth
- 54 mm
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4055143184120
- SAP 1200931862
- Code 84220403
Product Documentation
Document preview: Relay module, Nominal input voltage: 12 VDC, 2 changeover contacts, Limiting continuous current: 8 A (788-311) — Specification sheet
