WAGO

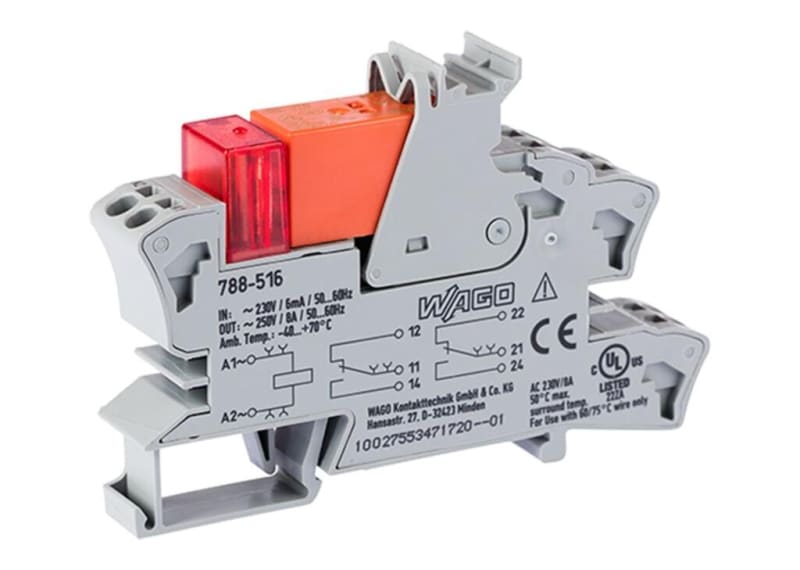

Relay module, Nominal input voltage: 230 VAC, 2 changeover contacts, Module width: 15 mm, 2,50 mm²
Part number788-516EAN / GTIN4055143192378HS code8536.49
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 788-516 Manufacturer description: Relay module; Nominal input voltage: 230 VAC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray. Relay Module;Nominal input voltage: 230 VAC;2 changeover contacts;grey.
Technical Specifications
- Manufacturer part number (MPN)
- 788-516
- EAN / GTIN
- 4055143192378
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Note
- Reinforced insulation between coil and contacts | To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
- Rated Voltage
- 250 V
- Rated impulse withstand voltage
- 4 kV
- Pollution degree
- 3
- Dielectric strength (control/load circuit) (AC, 1 min)
- 5 kVrms
- Dielectric strength (open contact) (AC, 1 min)
- 1 kVrms
- Dielectric strength (load/load circuit) (AC, 1 min)
- 2.5 kVrms
- Protection type
- IP20
- Connection technology
- Push-in CAGE CLAMP®
- Solid conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
- Width
- 15 mm / 0.591 inches
- Height
- 86 mm / 3.386 inches
- Depth from upper-edge of DIN-rail
- 54 mm / 2.126 inches
- Mounting type
- DIN-35 rail
- Color
- gray
- Fire load
- 0.775 MJ
- Weight
- 45.7 g
- Ambient temperature (operation at UN)
- -40 … +70 °C
- Ambient temperature UL (operation at UN)
- -40 … +50 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Processing temperature
- -25 … +50 °C
- Temperature range of connection cable
- ≥ (Tambient + 20 K)
- Standards/specifications
- EN 61010-2-201 | EN 61810-1 | EN 61373 | UL 508 | DNV
- WAGO Basic Relay
- 788-180
- Product Group
- 6 (INTERFACE ELECTRONIC)
- PU (SPU)
- 20 (1) pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85364900990
- UNSPSC
- 39,122,334
- eCl@ss 10.0
- 27-37-16-01
- eCl@ss 9.0
- 27-37-16-01
- ETIM 9.0
- EC001437
- ETIM 10.0
- EC001437
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 7439-92-1 | 7440-43-9 | 79-94-7
- REACH Candidate Strip Substance
- 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | Cadmium | Lead
- RoHS Compliance Status
- Compliant,No Exemption
- SCIP notification number (Austria)
- b0e534fc-6e2a-476f-af3a-adc4f5ad784e
- SCIP notification number (Belgium)
- f5fb74a2-c3b0-40c0-98da-03976d135990
- SCIP notification number (Bulgaria)
- 19a69d1f-1eac-4af1-a82f-60b7cd39e307
- SCIP notification number (Czech Republic)
- e9ac98ec-36be-424b-bf0a-c385a9fb437c
- SCIP notification number (Denmark)
- 97398917-a0b9-438b-a009-ec705113136d
- SCIP notification number (Finland)
- 6d5f6774-30bf-43ed-a808-bbc48db312c5
- SCIP notification number (France)
- 33f68cdd-e88a-4b75-9ddb-b9542e5e979b
- SCIP notification number (Germany)
- e244a908-f765-40c7-b634-d9738f4d9568
- SCIP notification number (Hungary)
- 62cbd900-173a-420f-aa49-b0385499542a
- SCIP notification number (Italy)
- 30a343f2-20a6-4847-a57e-6c4f35c2ab5b
- SCIP notification number (Netherlands)
- a241131d-fb8e-47da-99b3-176d01cbd59d
- SCIP notification number (Poland)
- 18110e8e-0396-4ae3-9bcd-6399915f98d2
- SCIP notification number (Romania)
- 4c1827a3-594e-47e5-93c0-87c8cd85c0df
- SCIP notification number (Sweden)
- a63b4428-d34d-484d-b9de-d06779aecb17
- MPN
- 788-516
- Type of electric connection
- Spring clamp connection
- With detachable clamps
- No
- Nominal current
- 8 A
- Rated control supply voltage AC 50 Hz
- 230 V
- Rated control supply voltage AC 60 Hz
- 230 V
- Voltage type for actuating
- AC
- Drive, polarization
- Polarity free
- Drive, switching attitude
- Mono stable
- Number of contacts as change-over contact
- 2
- With forced-guided contacts
- No
- Type of switch contact
- Single contact
- Complete with socket
- Yes
- With LED indication
- Yes
- Material of contact surface
- Silver
- Degree of protection (IP)
- IP20
- Depth
- 54 mm
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4055143192378
- SAP 1200824941
- Code 84010840
Product Documentation
Document preview: Relay module, Nominal input voltage: 230 VAC, 2 changeover contacts, Module width: 15 mm, 2,50 mm² (788-516) — Specification sheet
