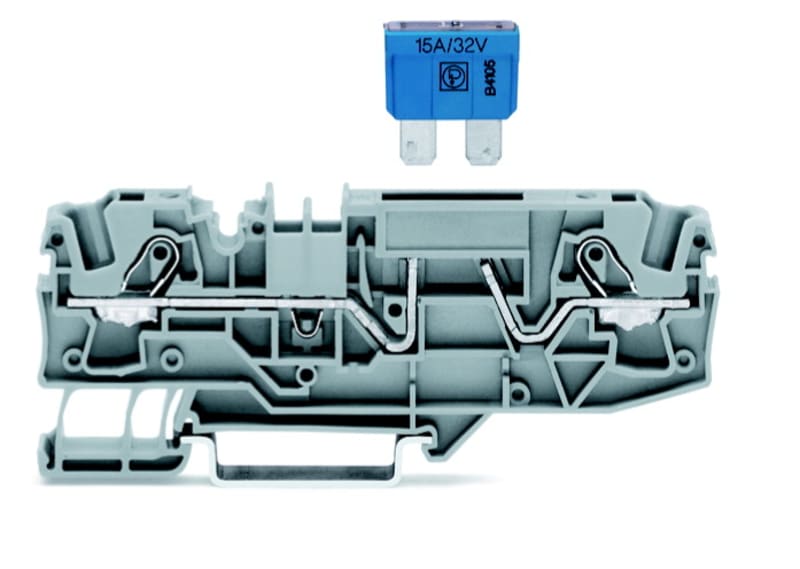

2-Conductor fuse terminal block, 6 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2006-1681 Manufacturer description: 2-conductor fuse terminal block; for automotive blade-style fuses; with test option; without blown fuse indication; 6 mm²; Push-in CAGE CLAMP®; gray. TopJobS knife fuse terminal. 6mm2.
Technical Specifications
- Manufacturer part number (MPN)
- 2006-1681
- EAN / GTIN
- 4045454753566
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Clamping units
- 2
- Total number of potentials
- 2
- Number of levels
- 1
- Number of jumper slots
- 2
- Width
- 7.5 mm / 0.295 inches
- Height
- 96.3 mm / 3.791 inches
- Depth from upper-edge of DIN-rail
- 32.9 mm / 1.295 inches
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.273 MJ
- Weight
- 17 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 25 pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85369095000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-16
- eCl@ss 9.0
- 27-14-11-16
- ETIM 9.0
- EC000899
- ETIM 10.0
- EC000899
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 6 mm²
- EAN
- 4050821181729
- MPN
- 2006-1681
- Type of fuse insert
- Blade fuse
- Type of fuse holder
- Pluggable
- Type of indication element for defect indication
- None
- Connectable conductor cross section solid-core
- 1–10 mm²
- Connectable conductor cross section multi-wired
- 0.5–6 mm²
- Rated current In
- 25 A
- Rated voltage
- 500 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- 105 °C
- Depth
- 32.9 mm
- Closing plate required
- Yes
- Colour
- Grey
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4045454753566
- SAP 1200708415
- Code 83813283
Product Documentation
