WAGO

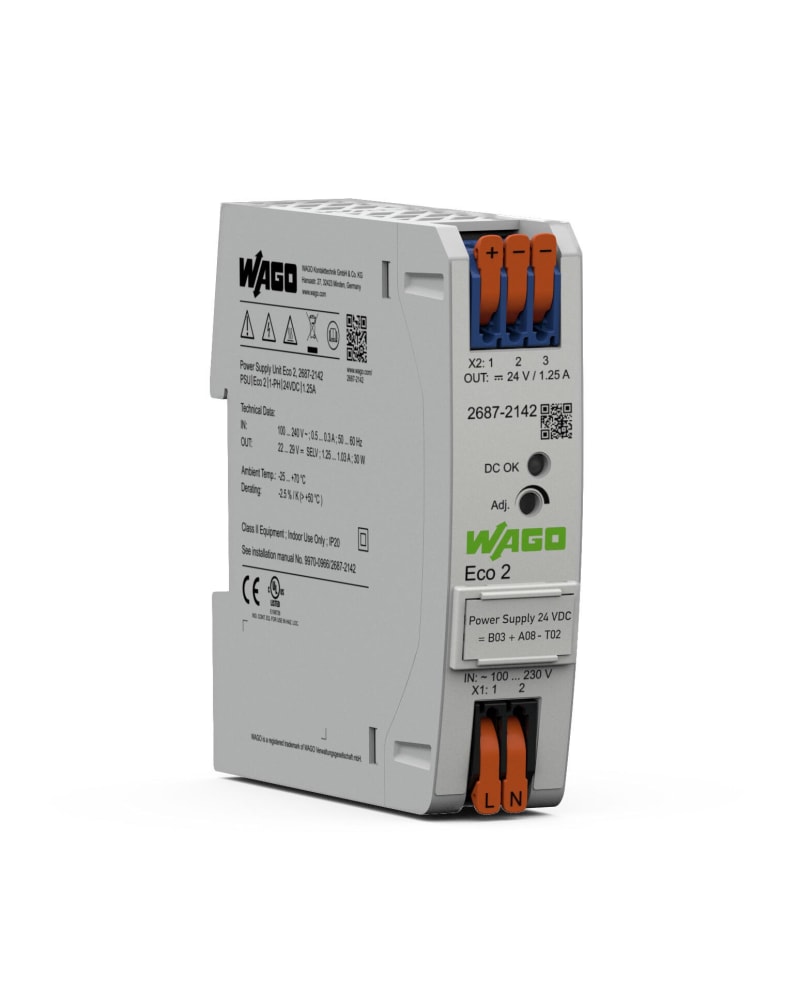

Power supply; Eco 2; 1-Phase; 24 VDC output voltage; 1.25 A output current; DC-OK LED
Part number2687-2142EAN / GTIN4055144103922HS code8504.40
Control & Automation
Power Supplies
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2687-2142 Manufacturer description: Power supply; Eco 2; 1-phase; 24 VDC output voltage; 1.25 A output current; DC-OK LED. WAGO power supply ECO2, 24V/1,25 with hendeltilkoblinger.
Technical Specifications
- Manufacturer part number (MPN)
- 2687-2142
- EAN / GTIN
- 4055144103922
- Sales unit
- pcs
- Isolation voltage (pri.-sec., AC)
- 3,510 V
- Protection class
- II
- Protection type
- IP20; per EN 60529
- Resistance to reverse feed
- ≤ 35 VDC
- Overvoltage category
- III (≤ 2000 m a.s.l.); II (> 2000 m a.s.l.)
- Pollution degree
- 2
- Short-circuit-protected
- Yes
- Open-circuit-proof
- Yes
- Parallel operation
- Yes
- Series operation
- Yes
- MTBF
- > 1,000,000 h (per IEC 61709)
- Width
- 25 mm / 0.984 inches
- Height
- 100 mm / 3.937 inches
- Depth from upper-edge of DIN-rail
- 90 mm / 3.54 inches
- Mounting type
- DIN-35 rail
- Weight
- 160 g
- Ambient temperature (operation)
- -25 … +70 °C (Device starts at -40 °C (type-tested))
- Ambient temperature (storage)
- -40 … +85 °C
- Relative humidity
- 5 … 96 % (no condensation permissible)
- Derating
- See type label/manual
- Climatic category
- 3K3 (per EN 60721)
- Operating altitude (max.)
- 5000 m
- Conformity marking
- CE
- Standards/specifications
- EN 61010-1 | EN 61010-2-201 | EN 61204-3 | UL 61010-1 | UL 61010-2-201 | SEMI F47 | UL 121201 (HazLoc)
- PU (SPU)
- 1 pcs
- Packaging type
- Box
- Country of origin
- CN
- Customs tariff number
- 85044083900
- UNSPSC
- 39,121,004
- ETIM 9.0
- EC002540
- ETIM 10.0
- EC002540
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 1303-86-2 | 1317-36-8 | 7439-92-1 | 79-94-7
- REACH Candidate Strip Substance
- 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | Diboron trioxide | Lead | Lead monoxide
- RoHS Compliance Status
- Compliant,With Exemption
- RoHS Exemption
- 6(c) | 7(a) | 7(c)-I | 7(c)-II
- SCIP notification number (Austria)
- 9b403ba9-f691-48b6-b7e9-603b089e67e6
- SCIP notification number (Belgium)
- f1123ee4-48ff-4a70-bbbf-1b951fcaa4e8
- SCIP notification number (Bulgaria)
- df339ba3-d4bf-446c-9814-4a47201f1fd5
- SCIP notification number (Czech Republic)
- dc4e5824-d5f3-47d5-89db-6733f3388d7b
- SCIP notification number (Denmark)
- f249a554-0261-48db-a7bd-b170a7cfb7e2
- SCIP notification number (Finland)
- 723b3c42-d328-44d9-b92c-6d94efe6aac7
- SCIP notification number (France)
- 2e69deff-80c5-43ea-bb0e-1304ca263196
- SCIP notification number (Germany)
- ab87850c-6d44-45f7-9b5d-85554085def1
- SCIP notification number (Hungary)
- b2fb9e28-baf9-482b-9382-97dd67c40729
- SCIP notification number (Italy)
- cf8859b7-2e31-4206-ab95-822a0087c774
- SCIP notification number (Netherlands)
- ce3539f4-a927-4dc7-a42e-04e5928eae84
- SCIP notification number (Poland)
- c7d5340a-56bd-4d28-8b5b-38d1b0e40a5a
- SCIP notification number (Romania)
- 40c031c1-ca60-4f13-9599-8039b1be4139
- SCIP notification number (Sweden)
- f75a91c5-b1eb-48ad-b86c-6ef95d158486
- EAN
- 4066966296501
- MPN
- 2687-2142
- Voltage type (supply voltage)
- AC
- 1st secondary output voltage
- 22–29 V
- Max. output current 1
- 1.25 A
- Max. output current 2
- 1.25 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 1.25 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 90–264 V
- Rated supply voltage AC 60 Hz
- 90–264 V
- Rated supply voltage DC
- 22–29 V
- Output voltage stabilized
- Yes
- Power consumption
- 0.3 VA
- Power output
- 30 W
- Stabilized
- Yes
- Type of electric connection
- Spring clamp connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 2
- Direct mounting possible
- No
- Depth
- 90 mm
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4055144103922
- SAP 1200549153
- Code 82881265
Product Documentation
Document preview: Power supply; Eco 2; 1-Phase; 24 VDC output voltage; 1.25 A output current; DC-OK LED (2687-2142) — Specification sheet
More from WAGO
WAGO

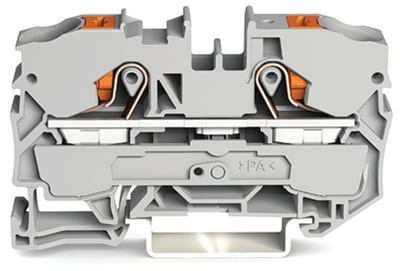

2-Conductor through terminal block, 10 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2210-1201)
WAGO

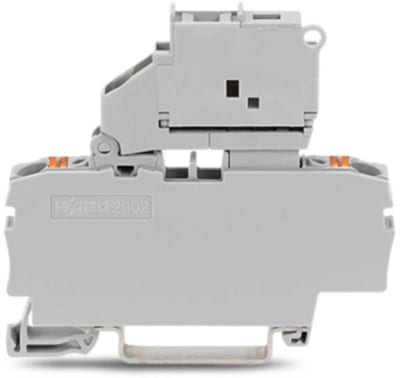

2-Conductor fuse terminal block, for 5 x 20 mm miniature metric fuse, 2.5 mm²
2202-1611
WAGO

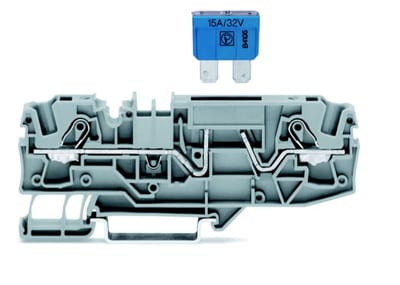

2-Conductor fuse terminal block, 6 mm²
2006-1681
WAGO
Splicing connector with levers, for all conductor types, max. 6 mm², 2-Conductor (221-682)
WAGO

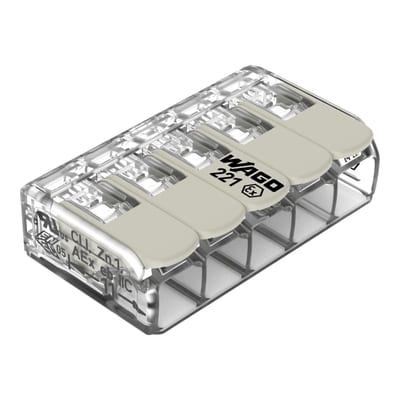

Splicing connector with levers, for all conductor types, max. 4 mm², 5-Conductor (221-485)
