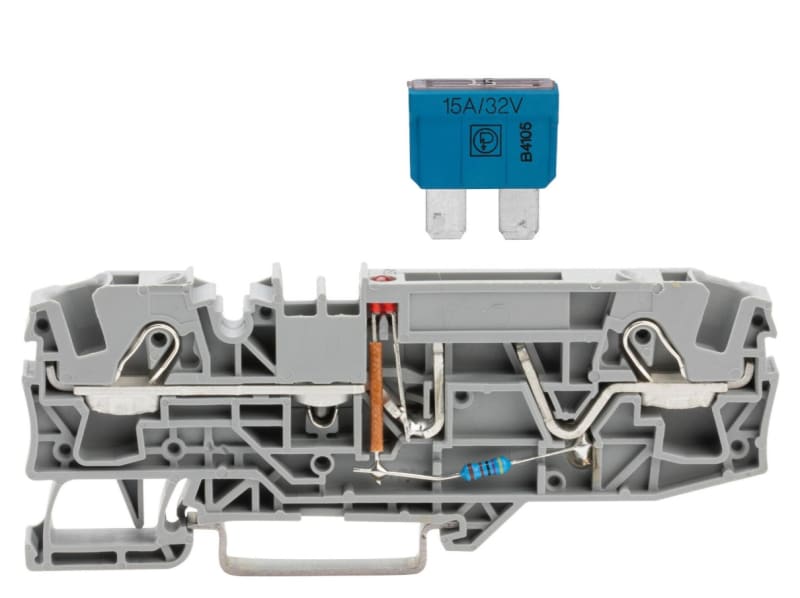

2-Conductor fuse terminal for flat fuses
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2006-1681/1000-449 2-conductor fuse terminal; for flat fuses in car; with test option; with blown fuse-indication.
Technical Specifications
- Manufacturer part number (MPN)
- 2006-1681/1000-449
- EAN / GTIN
- 4045454789824
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Clamping units
- 2
- Total number of potentials
- 2
- Number of levels
- 1
- Number of jumper slots
- 2
- Width
- 7.5 mm / 0.295 inches
- Height
- 96.3 mm / 3.791 inches
- Depth from upper-edge of DIN-rail
- 32.9 mm / 1.295 inches
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.273 MJ
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 25 pcs
- Packaging type
- box
- Customs tariff number
- 85369095000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-16
- eCl@ss 9.0
- 27-14-11-16
- ETIM 9.0
- EC000899
- ETIM 10.0
- EC000899
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4045454789824
- SAP 1000340248
- Code 8966762
