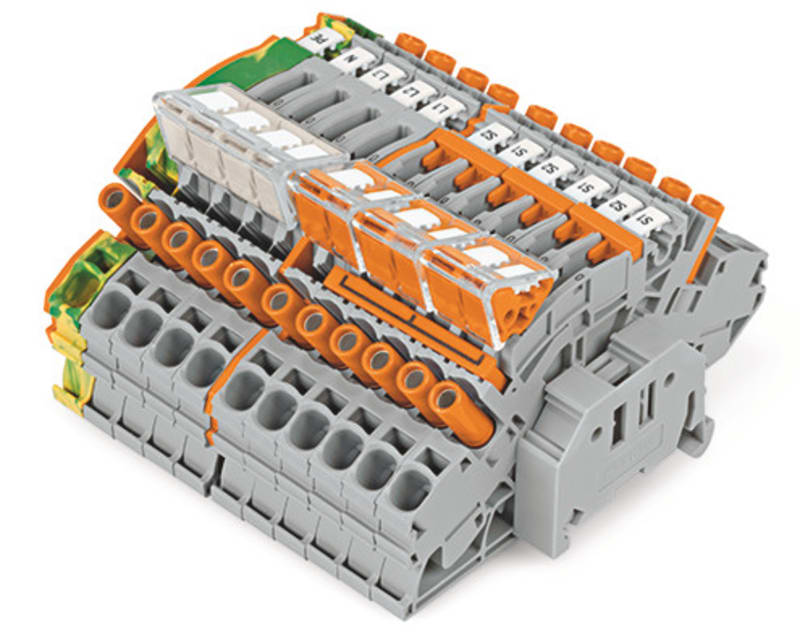

Compact terminal block; for current and voltage transformers; 6,00 mm²; multicoloured
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2007-8873 Manufacturer description: Compact terminal block; for current and voltage transformers; 6,00 mm²; multicoloured. Wago Terminal blocks for measuring transformers.
Technical Specifications
- Manufacturer part number (MPN)
- 2007-8873
- EAN / GTIN
- 4050821776697
- Sales unit
- pcs
- Number of levels
- 1
- Width
- 112 mm / 4.409 inches
- Height
- 99.6 mm / 3.921 inches
- Depth from upper-edge of DIN-rail
- 65.3 mm / 2.571 inches
- Module width
- 8 mm / 0.315 inches
- Mounting type
- DIN-35 rail | DIN-35 rail
- Marking level
- Center/side marking
- Color
- multi-colored
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 5.067 MJ
- Weight
- 347.5 g
- Test socket color
- orange
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 1 pcs
- Packaging type
- Box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-47
- eCl@ss 9.0
- 27-14-11-47
- ETIM 9.0
- EC000276
- ETIM 10.0
- EC000276
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 7439-92-1
- REACH Candidate Strip Substance
- Lead
- RoHS Compliance Status
- Compliant,With Exemption
- RoHS Exemption
- 6(c)
- SCIP notification number (Austria)
- 9a02a54f-67f0-4e40-8cc8-8aea0d730074
- SCIP notification number (Belgium)
- d9d1a20b-28ce-40a3-b167-f49fdf4032c2
- SCIP notification number (Bulgaria)
- 3d39520b-1fce-49bc-a0fc-dcb3a64777b9
- SCIP notification number (Czech Republic)
- cfedf63f-df48-4e6f-aa7d-6e86c757639b
- SCIP notification number (Denmark)
- 84a46ab5-28c4-44b3-88b4-7eef1e1d695f
- SCIP notification number (Finland)
- 6586b91a-c192-4fd1-89a7-02d08adb8e98
- SCIP notification number (France)
- b2926040-333e-4558-88fb-cd9c23ba5075
- SCIP notification number (Germany)
- fe1cc17d-0dd0-40b1-8b47-feec55670a58
- SCIP notification number (Hungary)
- f69d3ad2-f0a5-4771-8d4d-824ce92fd9ad
- SCIP notification number (Italy)
- eacfeb2b-3120-4519-a8f9-56c2e5f0f1b3
- SCIP notification number (Netherlands)
- 2e859d8a-4d5a-4ce1-b3e0-3befd2b1e8c5
- SCIP notification number (Poland)
- 6dfc79df-fceb-4607-a188-a8b3ccc82039
- SCIP notification number (Romania)
- 496afc7e-0340-4fb2-8779-5948dd9da026
- SCIP notification number (Sweden)
- fc2d2baa-f684-422a-badf-d87fd0ae14ad
- MPN
- 2007-8873
- Core cross section
- 6 mm²
- With seal head
- No
- Number of poles
- 11
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4050821776697
- SAP 1200073092
- Code 81921925
