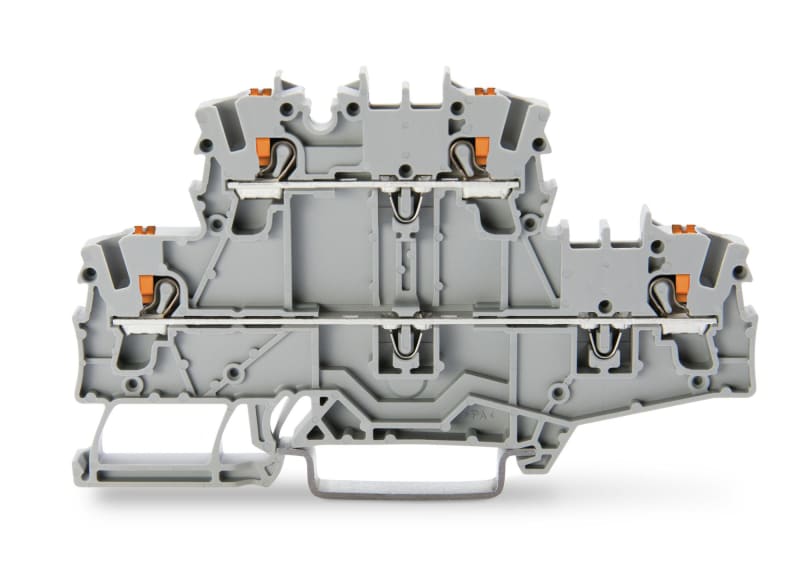

Double-deck terminal block, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm² (2202-2701)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2202-2701 Manufacturer description: Double-deck terminal block; with push-button; Through/through terminal block; L/L; without marker carrier; suitable for Ex e II applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray. Toetasjes DIN-rail terminal;with push-button;Through-/through DIN-rail terminal;grey.
Technical Specifications
- Manufacturer part number (MPN)
- 2202-2701
- EAN / GTIN
- 4055143844598
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Clamping units
- 4
- Total number of potentials
- 2
- Number of levels
- 2
- Number of jumper slots
- 4
- Width
- 5.2 mm / 0.205 inches
- Height
- 92.5 mm / 3.642 inches
- Depth from upper-edge of DIN-rail
- 51.7 mm / 2.035 inches
- Potential marking
- L/L
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.221 MJ
- Actuator color
- orange
- Weight
- 12.5 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- PU (SPU)
- 50 pcs
- Packaging type
- box
- Country of origin
- IN
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- ETIM 9.0
- EC000897
- ETIM 10.0
- EC000897
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 2.5 mm²
- MPN
- 2202-2701
- Connectable conductor cross section solid-core
- 1–4 mm²
- Connectable conductor cross section multi-wired
- 0.25–2.5 mm²
- Rated current In
- 24 A
- Rated voltage
- 800 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Atop
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- 105 °C
- Width/grid dimension
- 5.2 mm
- Depth
- 51.7 mm
- Length
- 92.5 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Grey
- Internally connected stages
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055143844598
- SAP 1200854250
- Code 84068901
