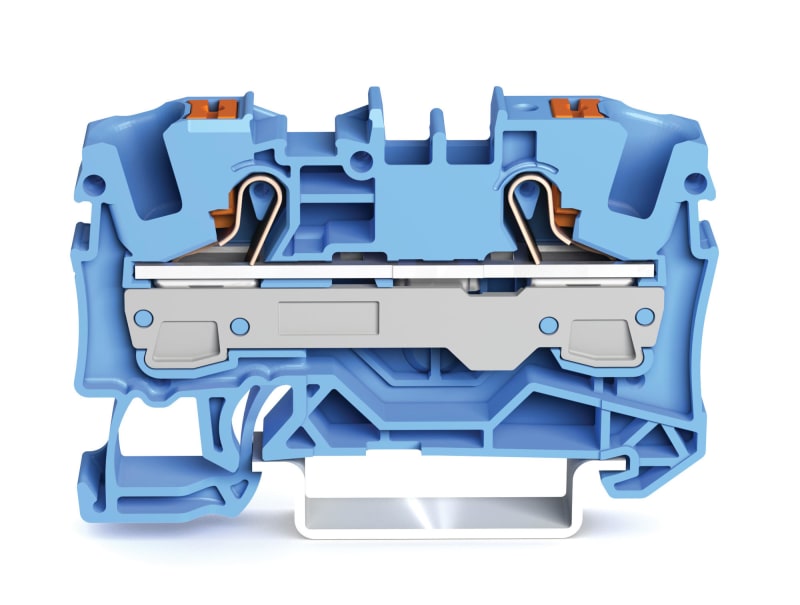

2-Conductor through terminal block, 6 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2206-1204)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2206-1204 Manufacturer description: 2-conductor through terminal block; with push-button; 6 mm²; with test port; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm²; blue. 2-conductor through-going DIN-rail terminal;with push-button;6 mm²;blue.
Technical Specifications
- Manufacturer part number (MPN)
- 2206-1204
- EAN / GTIN
- 4055143712040
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Clamping units
- 2
- Total number of potentials
- 1
- Number of levels
- 1
- Number of jumper slots
- 2
- Width
- 7.5 mm / 0.295 inches
- Height
- 57.3 mm / 2.256 inches
- Depth from upper-edge of DIN-rail
- 32.9 mm / 1.295 inches
- Depth
- 39.5 mm / 1.555 inches
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- blue
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.168 MJ
- Actuator color
- orange
- Weight
- 10 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- PU (SPU)
- 50 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-20
- eCl@ss 9.0
- 27-14-11-20
- ETIM 9.0
- EC000897
- ETIM 10.0
- EC000897
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 6 mm²
- EAN
- 4055143846639
- MPN
- 2206-1204
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 1–10 mm²
- Connectable conductor cross section multi-wired
- 0.5–6 mm²
- Rated current In
- 41 A
- Rated voltage
- 800 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Atop
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- 105 °C
- Width/grid dimension
- 7.5 mm
- Length
- 57.3 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Blue
- Internally connected stages
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055143712040
- SAP 1200141928
- Code 82035101
Product Documentation
