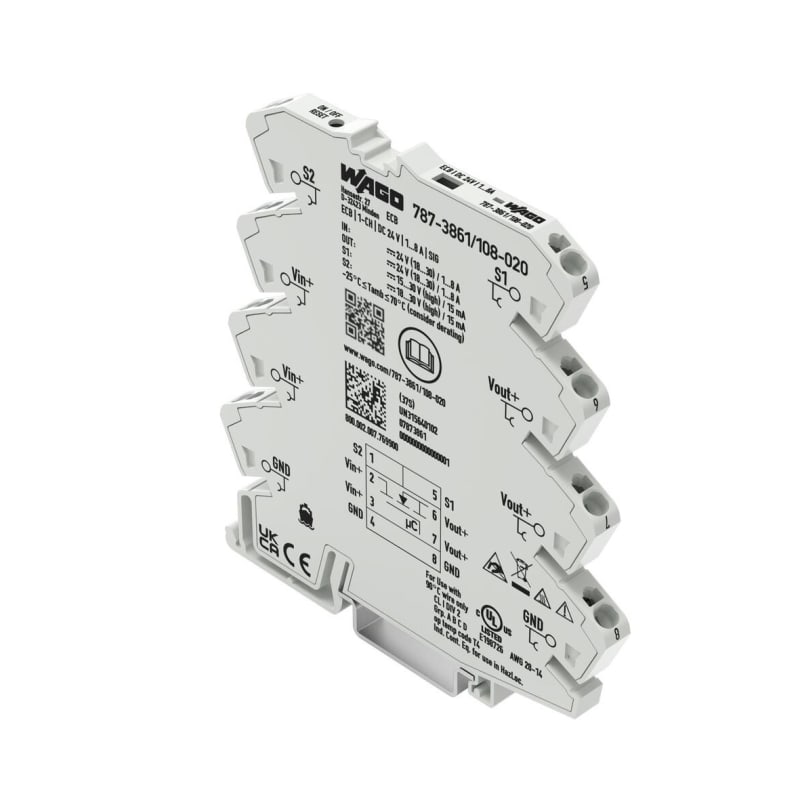

electronic fuse 1-8A
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 787-3861/108-020 Electronic circuit breaker; 1-channel; 24 VDC input voltage; adjustable 1 … 8 A; Signal contact.
Technical Specifications
- Manufacturer part number (MPN)
- 787-3861/108-020 EAN / GTIN: 4066966363548 HS code: 8536.90 Sales unit: pcs Package quantity: 10 pcs External power supply required: Yes Supply voltage DC: 18–30 V Response value amperage 1: 1–8 A Type of current: DC Voltage type (operating voltage): DC Type of electric connection: Spring clamp connection With detachable clamps: No Single-phase under current possible: No Three-phase under current possible: No Single-phase overcurrent possible: Yes Three-phase overcurrent possible: No Single-phase hysteresis possible: No Three-phase hysteresis possible: No Contains function DC-voltage under current: Yes Contains function DC-voltage overcurrent: Yes Function DC-current hysteresis: No Rated control supply voltage DC: 18–30 V Voltage type for actuating: DC Current measuring range: 1–8 A Min. adjustable delay-on energization time: 0.01 s Max. permitted delay-on energization time: 90 s External current transformer: No Width: 6 mm Height: 98 mm Depth: 94 mm Country of origin: India
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4066966363548
- SAP 1200778548
- Code 83939738
Product Documentation
More from WAGO
WAGO

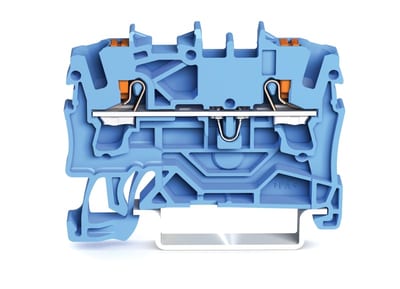

2-Conductor through terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2202-1204)
WAGO
Compact terminal block; for current transformer circuit; 6,00 mm²; multicoloured
2007-8875
WAGO

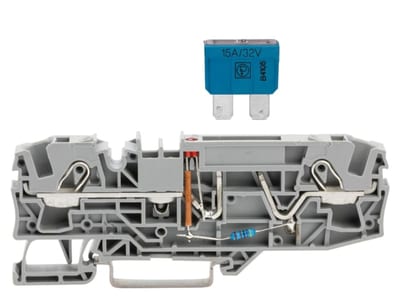

2-Conductor fuse terminal for flat fuses
2006-1681/1000-449
WAGO

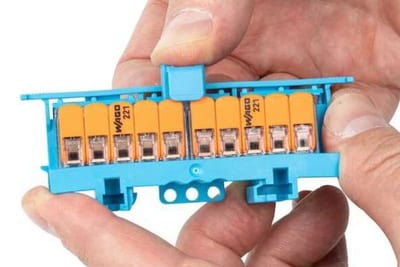

Jumper for WAGO 221 Series Connectors, 2-Way, Insulated
221-941/000-006
WAGO

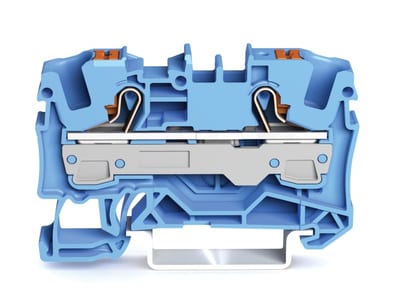

2-Conductor through terminal block, 6 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2206-1204)
