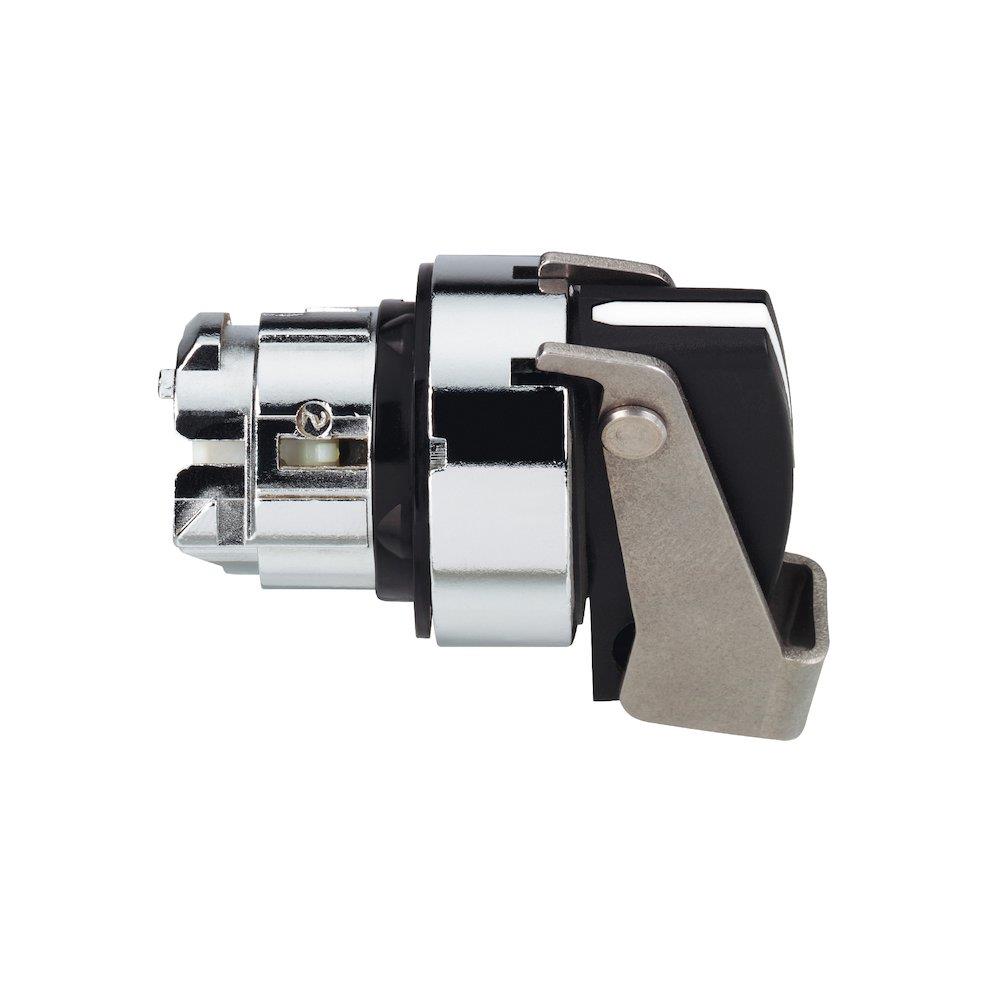

Schneider ZB4 Rotary Handle - Harmony XB4, 3PCS 3389110173703
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider ZB4 Rotary Handle. Rotary switches and key switches (Electrical Engineering / Push buttons and signal units / Push buttons). Principal data: series Harmony XB4, number of posts 3 pcs. Supplied under manufacturer part number ZB4BJ891, EAN 3389110173703, HS code 8538.90, country of origin France.
Technical Specifications
- Product type
- Rotary switches and key switches
- Product group
- Push buttons and signal units
- Series
- Harmony XB4
- Number of posts
- 3 pcs
- Carbon footprint (EPD)
- 0.2828 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 85389099
- HS code
- 8538.90
- Manufacturer part number
- ZB4BJ891
- Range of product
- Harmony XB4
- Product or component type
- Head for selector switch
- Device short name
- ZB4
- Bezel material
- Chromium plated metal
- Mounting diameter
- 22 mm
- Head type
- Standard
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- Right to centre spring return
- Operator profile
- Black long handle
- Operator additional information
- Padlockable
- Operator position information
- 3 positions +/- 45°
- Locking position
- On the left
- CAD overall width
- 29 mm
- CAD overall height
- 38 mm
- CAD overall depth
- 50 mm
- Product weight
- 0.048 kg
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Mechanical durability
- 1000000 cycles
- Electrical composition code
- C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C5 for <5 contacts using single blocks in front mounting; C6 for <5 contacts using single and double blocks in front mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting
- Device presentation
- Basic element
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class I conforming to IEC 60536
- IP degree of protection
- IP67 conforming to IEC 60529; IP69; IP69K
- Enclosure Type
- UL type 4X/13
- IK degree of protection
- IK06 conforming to IEC 50102
- Standards
- IEC 60947-5-1; IEC 60947-1; JIS C8201-5-1; CSA C22.2 No 14; IEC 60947-5-4; IEC 60947-5-5; UL 508; JIS C8201-1
- Product certifications
- CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Warranty (in months)
- 18
- EAN
- 3389110173703
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110173703
- MPN ZB4BJ891
