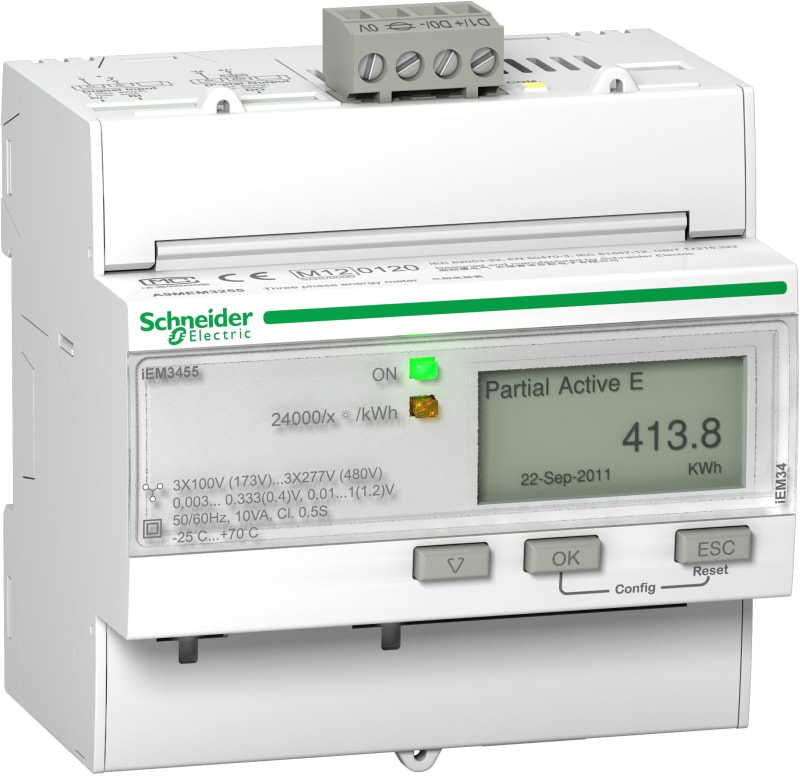

Schneider Electric IEM3555 energy meter - Modbus - 1 DI - 1 DO - multi-tariff - Rogowski coil A9MEM3555

Schneider Electric A9MEM3555 — iEM3555 energy meter - Modbus - 1 DI - 1 DO - multi-tariff - Rogowski coil.

Manufacturer part number (MPN)

A9MEM3555

EAN / GTIN

3606480845246

Sales unit

pcs

Range

Acti9

range of product

Acti9 iEM3000

Product or component type

Energy meter

Device short name

iEM3555

Market segment

Buildings small building cost management: billing: main incomer; Buildings small building cost management: billing: sub feeder; Buildings small building cost management: billing: panelboard; Buildings medium building cost management: billing: main incomer; Buildings medium building cost management: billing: sub feeder; Buildings medium building cost management: billing: panelboard; Buildings large building cost management: billing: main incomer; Buildings large building cost management: billing: sub feeder; Buildings large building cost management: billing: panelboard; Buildings multi-site cost management: billing: main incomer; Buildings multi-site cost management: billing: sub feeder; Buildings multi-site cost management: billing: panelboard; Data center cost management: billing; Healthcare cost management: billing; Industry cost management: billing; Buildings small building cost management: cost allocation: main incomer; Buildings small building cost management: cost allocation: sub feeder; Buildings small building cost management: cost allocation: panelboard; Buildings medium building cost management: cost allocation: main incomer; Buildings medium building cost management: cost allocation: sub feeder; Buildings medium building cost management: cost allocation: panelboard; Buildings large building cost management: cost allocation: main incomer; Buildings large building cost management: cost allocation: sub feeder; Buildings large building cost management: cost allocation: panelboard; Buildings multi-site cost management: cost allocation: main incomer; Buildings multi-site cost management: cost allocation: sub feeder; Buildings multi-site cost management: cost allocation: panelboard; Data center cost management: cost allocation; Healthcare cost management: cost allocation; Industry cost management: cost allocation

Poles description

3P; 3P + N; 1P + N

Type of measurement

Active and reactive energy; Active and reactive power; Current; Voltage

Metering type

Active, reactive, apparent energy (signed, four quadrant)

Device application

Multi-tariff; Partial meter; Sub billing

Accuracy class

Class 0.5S active energy conforming to IEC 62053-22; Class 0.5S active energy conforming to ANSI C12.20

input type

Rogowski coil 50...5000 A

Rated voltage

100…277 V +/- 20 %; 173…480 V +/- 20 %

Network frequency

50 Hz; 60 Hz

Technology type

Electronic

Display type

LCD display

Sampling rate

32 samples/cycle

Measurement current

50…5000 A

Maximum value measured

99999999.9 kWh; 99999999 MWh

tariff input

Tariff (4)

Communication port protocol

Modbus RTU at 9.6, 19.2 and 38.4 kbauds even/odd or none

Communication port support

Screw terminal block: RS485

Local signalling

Green indicator light: power ON; Yellow flashing LED: accuracy checking; alarm: overload; Yellow indicator light: communications are active on the Modbus port (Modbus)

Number of inputs

1 digital 0...5 V/11...40 V 24 V DC

Number of outputs

1 digital (static)

Output voltage

5...40 V DC@50 mA

mounting mode

Clip-on

Mounting support

DIN rail

Connections - terminals

Current circuit: screw terminals 6 mm² cable(s) ; Voltage circuit: screw terminals 2.5 mm² cable(s) ; Input/output circuit: screw terminals 1.5 mm² cable(s) ; Communication: screw terminals 2.5 mm² cable(s)

Tightening torque

Input/output circuit: 0.5 N.m Philips screwdriver ; Voltage circuit: 0.5 N.m Philips screwdriver ; Current circuit: 0.8 N.m pozidriv screwdriver ; Communication: 0.5 N.m Philips screwdriver

Wire stripping length

Input/output circuit: 6 mm; Voltage circuit: 8 mm; Current circuit: 8 mm; Communication: 7 mm

Standards

BS EN 61326-1; IEC 61326-1; EN 61326-1; BS EN 61010-1:2010; EN 61010-1:2010; IEC 61010-1:2010; UL 61010-1:2010; BS EN 61010-2-30; IEC 61010-2-30; EN 61010-2-30; UL 61010-2-30; ANSI C12.20

Product certifications

CE conforming to IEC 61010-1 (safety); CE conforming to EN 61557-12 (power monitor); CE conforming to EN/IEC 61326-1 (EMC); UKCA conforming to BS EN 61010-1 (safety); UKCA conforming to BS EN 61557-12 (power monitor); UKCA conforming to BS EN 61326-1 (EMC); CULus conforming to UL 61010-1 (safety); CULus conforming to EN 61010-1 (safety); KZ; RCM

Compatibility code

IEM3555

IP degree of protection

IP40 front panel: conforming to IEC 60529; IP20 body: conforming to IEC 60529

IK degree of protection

IK08

Pollution degree

2

Relative humidity

5…95 % at 36 °C

Ambient air temperature for operation

-25…70 °C - IEC

Ambient air temperature for storage

-40…85 °C

Operating altitude

< 3000 m

Colour

White

9 mm pitches

10

Width

90 mm

Height

87 mm

Depth

69 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.700 cm

Package 1 Width

9.600 cm

Package 1 Length

10.600 cm

Package 1 Weight

328.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

30

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

10.310 kg

Unit Type of Package 3

P06

Number of Units in Package 3

240

Package 3 Height

80.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

100.364 kg

Country of origin

CN

Warranty (in months)

18

Mounting method

DRA (DIN-rail adaptor)

Model

Measurement transformer

Suitable for

Purchase/supply

Type of indication

Digital

Width in number of modular spacings

5

Number of positions total (counter)

9

Type of meter

Electronic

Degree of protection (IP)

IP20

Type of interface

RS-485

Energy type

Effective power and reactive power

Tariff type

Multi-tariff

Tariff control

Internal/external

Escapement mechanism

No

Calibrated

No

Approval

Domestic

Pulse output

Electrical

Pulse type

D0

Pole type

Three conductor/four conductor

Measurement type load profile

No

EEC40 signature

No

With lock code

No

HS Code

9028.30
