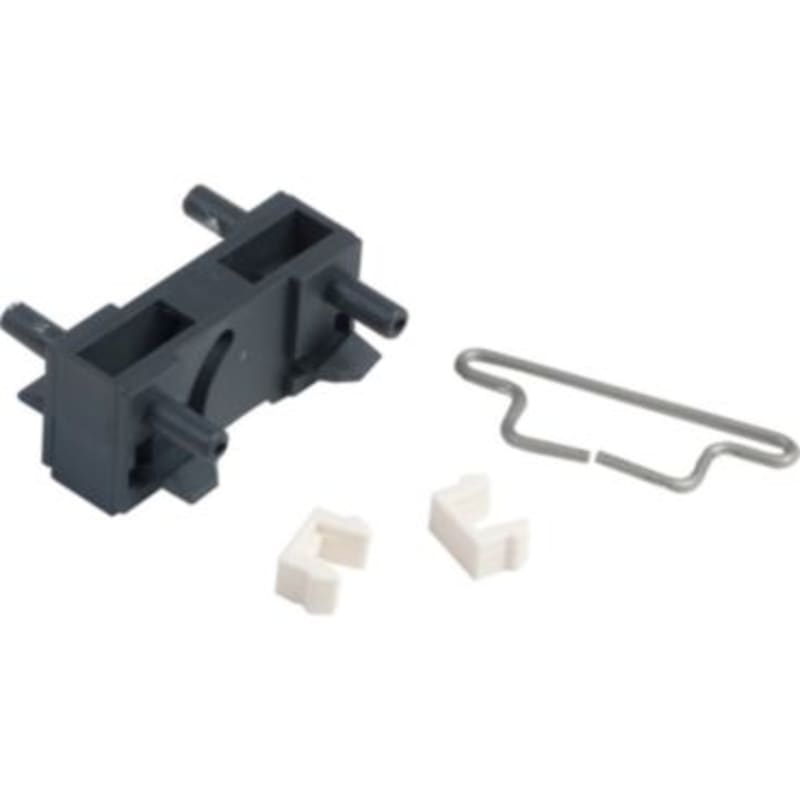

Schneider Electric Mechanical interlock, TeSys D contactors LC1D09-D38 LC1DT20-DT40 LAD9V2
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LAD9V2 — Buy Mechanical Interlock LC1D09-D38 LC1DT20-DT40 from Schneider's range of TeSys island Motor Management System.
Technical Specifications
- Manufacturer part number (MPN)
- LAD9V2
- EAN / GTIN
- 3389110111699
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- TeSys Deca
- Range
- TeSys
- Device short name
- LAD9
- Product or component type
- Mechanical interlock
- Accessory / separate part category
- Interlocking accessory
- Interlocking type
- Mechanical
- Poles description
- 3P; 4P
- Electrical circuit type
- Reversing; Changeover
- Range compatibility
- TeSys TeSys D contactor
- Product compatibility
- LC1D09; LC1D12; LC1D18; LC1D25; LC1D32; LC1D38; LC1DT20; LC1DT25; LC1DT32; LC1DT40
- Product weight
- 0.04 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.000 cm
- Package 1 Width
- 8.000 cm
- Package 1 Length
- 9.000 cm
- Package 1 Weight
- 11.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 9.500 cm
- Package 2 Width
- 10.000 cm
- Package 2 Length
- 15.200 cm
- Package 2 Weight
- 138.000 g
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 140
- Package 3 Height
- 30.000 cm
- Package 3 Width
- 30.000 cm
- Package 3 Length
- 40.000 cm
- Package 3 Weight
- 2.359 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Type of accessory/spare part
- Mechanical locking
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110111699
- SAP 1000259840
- Code 8173244
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric iCT plus 20A 1P Uc 230VAC A9C15030
Schneider Electric
ACTI9 IC65 RCBO 2P C 20A 30MA, I2=1,3
A9DC4220
Schneider Electric
Schneider Electric Cable entry membrane, PanelSeT, PanelSet, type FL21 with 25 entrances IP66 NSYAECPFLT25
Schneider Electric
Schneider Electric ZB5AW353 Harmony XB5 Push-Button Head — Ø22 mm, Yellow, flush, spring return, illuminated (LED), plastic bezel
Schneider Electric
Metal Clamp TKK 8-12 screw 2.7X25MM
IMT23625
Schneider Electric
Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 4P, 40A, A type, 300MA, double terminal A9Z24440
Schneider Electric

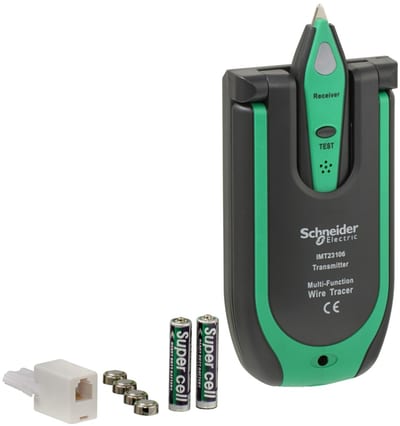

THORSMAN Multi. Cable Tracer
IMT23106
Schneider Electric

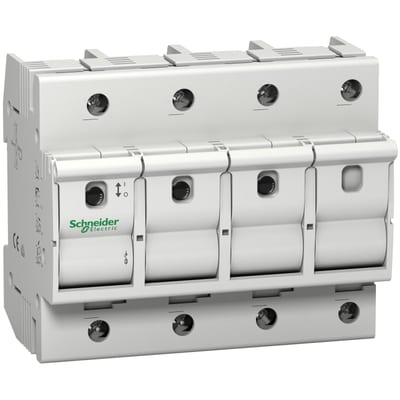

Fuse.skillebr. D02 3P+N 63A
