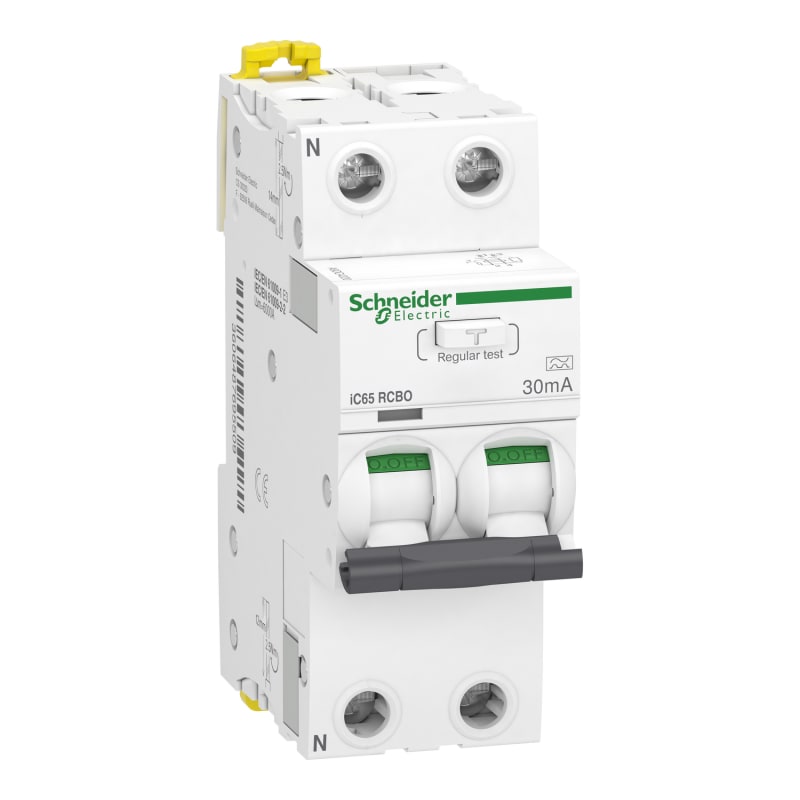

ACTI9 IC65 RCBO 2P C 20A 30MA, I2=1,3
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9DC4220 — Acti9 iC60 RCBO. Residual current circuit breaker with overcurrent per IEC 61009, DIN-rail modular. Residual current circuit breaker with overcurrent 2 pole, C curve, 20A, 30mA, I2=1,3.
Technical Specifications
- Manufacturer part number (MPN)
- A9DC4220
- EAN / GTIN
- 3606487695509
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 42 pcs
- Rated current
- 20 A
- Number of poles
- 2P
- Power loss
- 2.25 W
- Number of protected poles
- 2
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Disconnection characteristic
- Undelayed
- Voltage type
- AC
- Frequency
- 50/60 Hz
- Release characteristic
- C
- Overvoltage category
- 3
- Pollution degree
- 3
- Width in number of modular spacings
- 2
- Built-in depth
- 44 mm
- Degree of protection (IP)
- IP20
- Flush-mounted installation
- No
- Mounting method
- DIN rail
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606487695509
- SAP 1200846212
- Code 84040272
