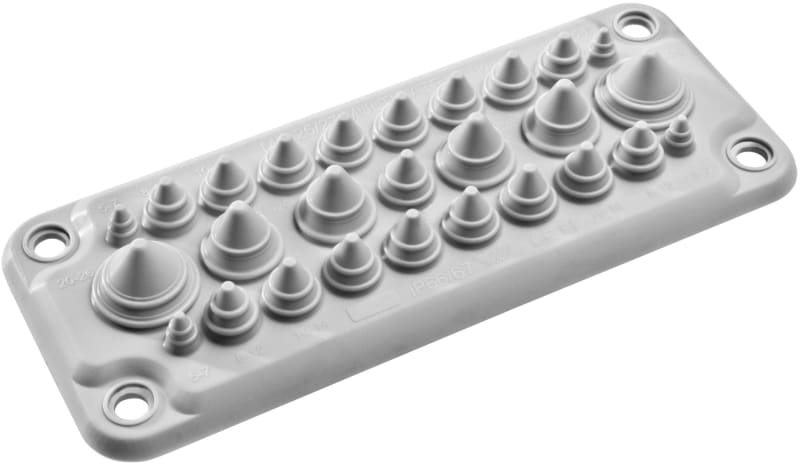

Schneider Electric Cable entry membrane, PanelSeT, PanelSet, type FL21 with 25 entrances IP66 NSYAECPFLT25
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYAECPFLT25 Spacial - Membrane Gland for cable gland - FL21 with 25 input IP66.
Technical Specifications
- Manufacturer part number (MPN)
- NSYAECPFLT25
- EAN / GTIN
- 3606480169052
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Range
- PanelSeT
- Product or component type
- Cable entry membrane
- Accessory / separate part category
- Cable management accessory
- Device application
- Multi-purpose
- Range compatibility
- PanelSeT S3D compact enclosure; PanelSeT CRN compact enclosure; PanelSeT SF SF suitable enclosure
- Device composition
- 1 membrane; 1 fixing elements
- Quantity per set
- Set of 1
- Mounting support
- Cable gland plate
- Material
- TPE (thermoplastic elastomer)
- Fixing mode
- By fixing element
- Total cable entry number
- 25
- Cable entry number
- 4 x 5…7 mm; 4 x 8…12 mm; 4 x 14…20 mm; 12 x 10…14 mm; 1 x 20…26 mm
- Height
- 30 mm
- Width
- External: 214 mm; Fixing center: 194 mm
- Depth
- Fixing center : 62 mm; External : 88 mm
- Colour
- Grey (RAL 7035)
- Product weight
- 0.32 kg
- IP degree of protection
- IP66
- Flame retardance
- V0 conforming to UL 94
- Ambient air temperature for operation
- -40…100 °C
- Environmental characteristic
- Oil resistant conforming to UL 157 FIMKO; UV resistant; Weatherproof; Fire resistance conforming to UL 94 V0
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Number of Units in Package 3
- 400
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606480169052
- SAP 1000470490
- Code 8113875
Product Documentation
