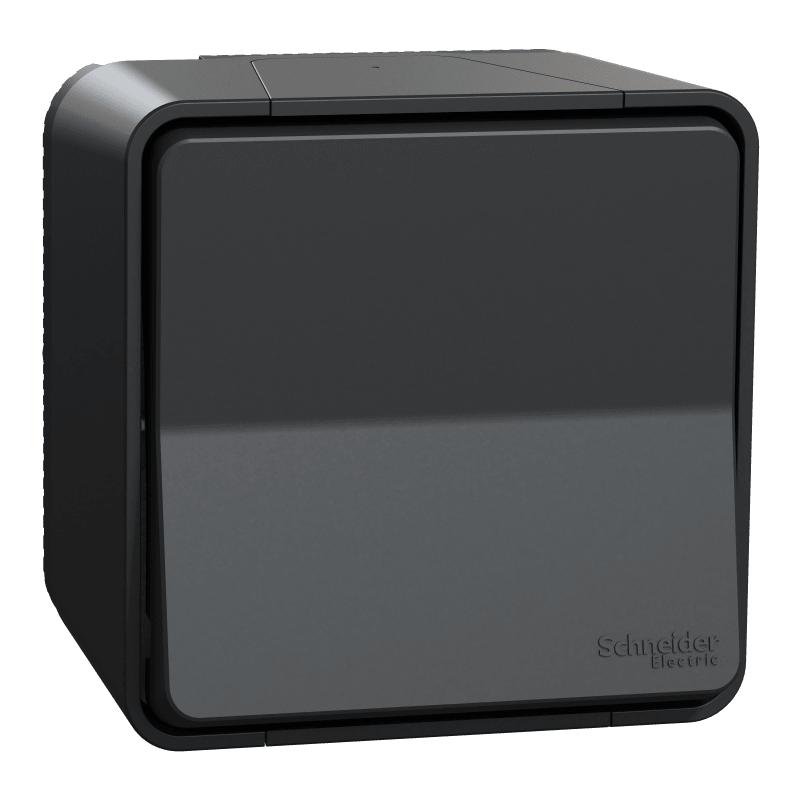

Schneider Electric Push-button, Mureva Styl, 10A, 250V, IP55, anthracite MUR35026
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric MUR35026 Mureva Styl impulse switch wall-mounted 10A, grey.
Technical Specifications
- Manufacturer part number (MPN)
- MUR35026
- EAN / GTIN
- 3606480789281
- Sales unit
- pcs
- Range
- Mureva Styl
- Range of product
- Mureva Styl
- Product or component type
- Push-button
- Colour tint
- Anthracite (RAL 7016)
- Device presentation
- Complete product
- Device mounting
- Surface
- Rated current
- 10 A
- Technology type
- Electromechanical
- fixing mode
- By screws
- [Ue] rated operational voltage
- 250 V AC
- Number of rocker
- 1
- Actuator
- Push-button
- Cable entry
- Easy valve access diameter: 6…20 mm
- Clamping connection capacity
- 1.5...2.5 mm² for rigid cable(s); 1.5...2.5 mm² for stranded cable(s); 1.5...2.5 mm² for flexible cable(s)
- Width
- 76 mm
- Height
- 76 mm
- Depth
- 64 mm
- Projecting depth
- 64 mm
- Material
- SEBS; ABS (acrylonitrile butadiene-styrene); Brass
- Condition of use
- Indoor/outdoor
- Wire stripping length
- 13 mm
- Chemical and detergent products resistance
- Resistant to alcohol (70 %); Resistant to alcohol (96 %); Resistant to A-Lactic Acid; Resistant to diluted quaternary ammonium; Resistant to diluted bleach; Resistant to diluted ammonia; Resistant to soapy water; Resistant to crystal cleaner; Resistant to hydrogen peroxide 10 volumes; Resistant to hexane
- Quality labels
- NF; EAC; CE; AENOR
- IP degree of protection
- IP55
- IK degree of protection
- IK08
- Flame retardance
- Self-extinguishing 650 °C conforming to IEC 60695-2-1
- Standards
- EN 60669-1
- Ambient air temperature for operation
- -5…40 °C
- Ambient air temperature for storage
- -25…55 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 60
- Warranty (in months)
- 18
- Nominal voltage
- 250 V
- Mounting method
- Surface mounted
- Assembly arrangement
- Basic element with complete housing
- Method of operation
- Push button
- Colour
- Grey
- Model
- Single push button
- Halogen free
- Yes
- Contacts
- 1 make contact (NO)
- Imprint
- None
- Surface protection
- Untreated
- With signal lamp
- No
- Label space/information surface
- No
- Monitoring contact
- No
- Material quality
- Thermoplastic
- Number of poles
- 1
- Type of fastening
- Screw mounting
- With lighting
- No
- RAL-number (similar)
- 7035
- Operating principle
- Electromechanical
- With light source
- No
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP55
- Device width
- 76 mm
- Device height
- 76 mm
- Device depth
- 64 mm
- IFTTT support available
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Contactless type
- No
- Anti-bacterial treatment
- No
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606480789281
- SAP 1200195815
- Code 82138347
