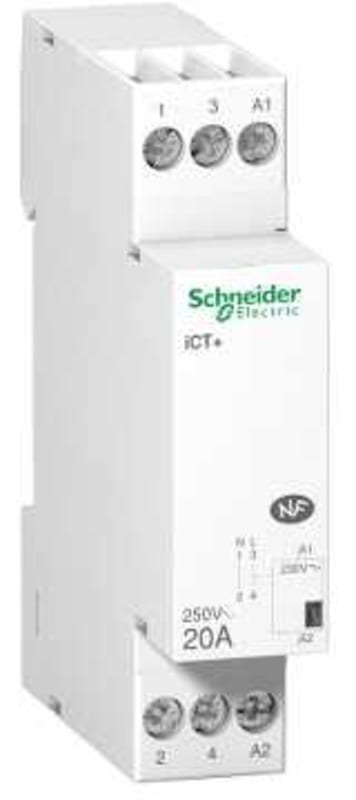

Schneider Electric iCT plus 20A 1P Uc 230VAC A9C15030
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9C15030 Contactor iCT+ 20A 1P+N.
Technical Specifications
- Manufacturer part number (MPN)
- A9C15030
- EAN / GTIN
- 3606480376955
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 230 V AC
- Rated current
- 20 A
- Contact configuration
- 1 NO
- range of product
- Acti9
- Product name
- Acti9 iCT+
- Product or component type
- Contactor
- Device short name
- iCT+
- Device application
- Control circuit
- Poles
- 1P
- [Ie] rated operational current
- 20 A AC-7A; 20 A AC-7B
- Pole contact composition
- 1 NO
- Network type
- AC
- Control type
- Remote control
- [Uc] control circuit voltage
- 230 V AC 50 Hz
- Network frequency
- 50 Hz
- [Ue] rated operational voltage
- 250 V AC 50 Hz
- Maximum power
- 3.6 kW at 250 V AC
- [Ui] rated insulation voltage
- 300 V
- Control signal type
- Maintained
- Switching frequency
- 6 switching operation/minute
- Local signalling
- Color indicator
- Hold-in power consumption in VA
- 1.1 VA
- Inrush power in VA
- 11 VA
- mounting mode
- Clip-on
- Mounting support
- 35 mm symmetrical DIN rail
- 9 mm pitches
- 2
- Height
- 81 mm
- Width
- 18 mm
- Depth
- 60 mm
- Product weight
- 70 g
- Colour
- White
- Mechanical durability
- 5000000 cycles
- Electrical durability
- 5000000 cycles
- Connections - terminals
- Tunnel type terminal2 cable(s) 1.5 mm² rigid; Tunnel type terminal2 cable(s) 1.5 mm² flexible with ferrule; Tunnel type terminal2 cable(s) 2.5 mm² rigid; Tunnel type terminal2 cable(s) 2.5 mm² flexible; Tunnel type terminal1 cable(s) 4 mm² rigid; Tunnel type terminal1 cable(s) 4 mm² flexible
- Tightening torque
- 1 N.m
- Wire stripping length
- 10 mm
- Product compatibility
- No auxiliary
- Compatibility code
- ICT+
- Market segment
- Residential; Small commercial
- Standards
- EN 60669-2-1
- Product certifications
- NF
- Noise level
- 10 dB
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- Pollution degree
- 3
- Tropicalisation
- 2 conforming to IEC 60068-1
- Relative humidity
- 95 % at 55 °C
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- -5…55 °C
- Ambient air temperature for storage
- -40…60 °C
- Country of origin
- FR
- Warranty (in months)
- 18
