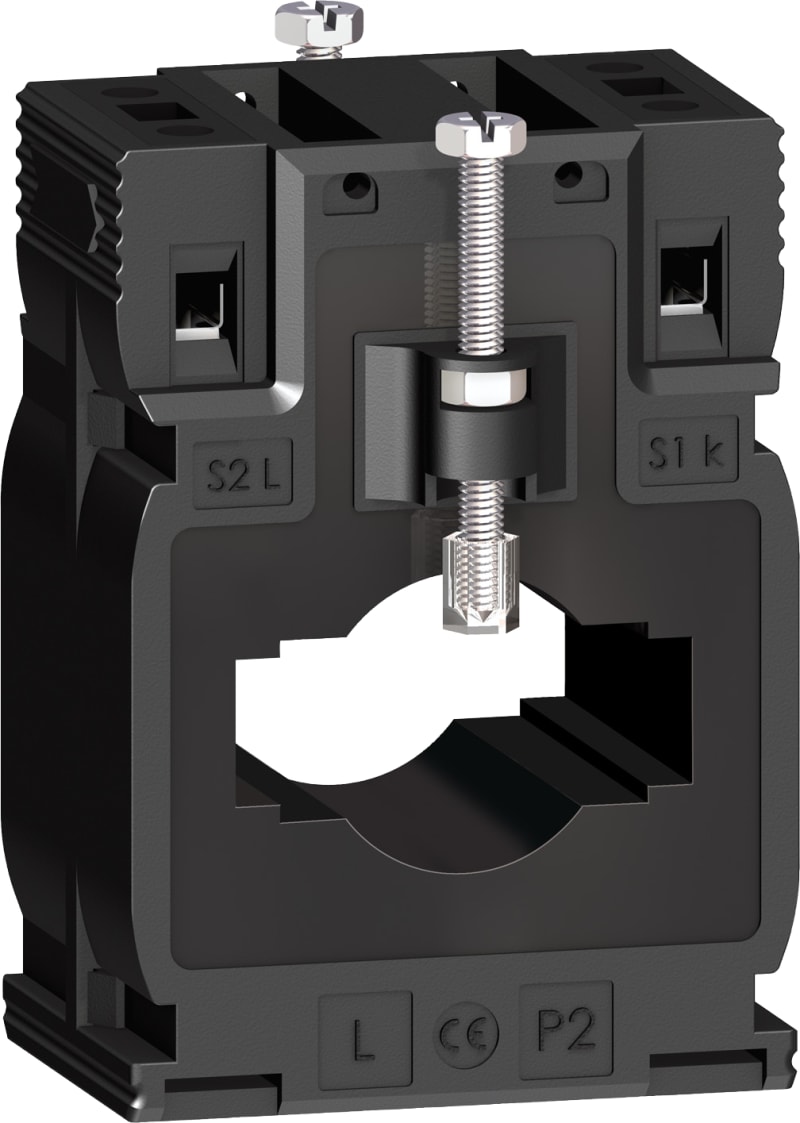

Schneider Electric current transformer tropicalised DIN mount 250 5 cables d. 26 - bars 12X40 15X32 METSECT5MB025

Schneider Electric METSECT5MB025 CT Current transformers with 5 A secondary current used together with an ammeter.

Manufacturer part number (MPN)

METSECT5MB025

EAN / GTIN

3606480618758

Sales unit

pcs

Diameter

26 mm

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 0.5 at 3 VA; Class 1 at 4 VA

[In] rated current

250 A

Current transformer type

Tropicalised for busbar and cable; Solid core

Current transformer ratio

250/5

[Ith] conventional free air thermal current

15 kA

Dynamic withstand current

2.5 Ith

Maximum safety factor

5

[Ue] rated operational voltage

< 720 V AC 50/60 Hz

[Ui] rated insulation voltage

3 kV 50 Hz for 1 minute

mounting mode

Insulated locking screw; By screws; Clip-on

Mounting support

Mounting plate; DIN rail; Busbar

Width

Outside: 60 mm

Height

Outside: 85 mm

Depth

Frame : 43 mm; Total : 63 mm

Product weight

0.305 kg

[Uimp] rated impulse withstand voltage

3 kV

Electrical insulation class

Class B

Cable outer diameter

26 mm

Opening of bars

32.5 x 15.5; 40.5 x 12.5

Sealing

Without

Standards

IEC 61869-2; VDE 0414

Product certifications

CE

IP degree of protection

IP20

Relative humidity

0…95 %

Ambient air temperature for operation

-25…60 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.500 cm

Package 1 Width

7.000 cm

Package 1 Length

9.000 cm

Package 1 Weight

309.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

40

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

12.760 kg

Country of origin

TN

Warranty (in months)

18

Model

Through-feed current converter

Rated primary current

250 A

Rated secondary current

5 A

Rated secondary apparent power

4 VA

Overcurrent limiting factor

FS 5

Calibrated

No

With contact protection

No

Height opening

12 mm

Width opening

40 mm

Opening diameter

26 mm

Snap mounting

No

With copper rail

No

Number of primary inputs

1

Secondary connection

Screw connection

HS Code

8504.31

• EAN 3606480618758
• SAP 1000632743
• Code 8147062
