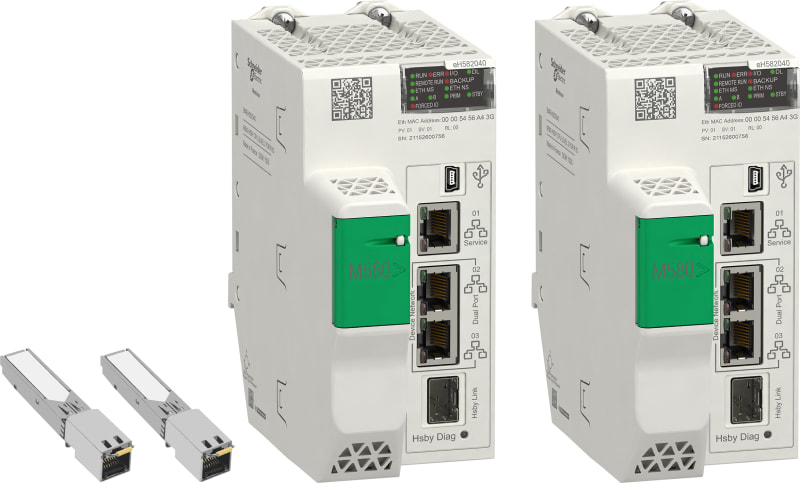

Schneider Electric Kit made of: 2X BMEH582040 + 2X 490NAC0100 BMEH582040K
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BMEH582040K M580 L2 Hotstandby kit, 2*H582040 & 2*NAC0100.
Technical Specifications
- Manufacturer part number (MPN)
- BMEH582040K
- EAN / GTIN
- 3606480927416
- Sales unit
- pcs
- Range of product
- Modicon M580
- Marking
- CE
- Vibration resistance
- 3 gn
- Shock resistance
- 30 gn
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…85 °C
- Operating altitude
- 0...2000 m; 2000...5000 m with derating factor
- Relative humidity
- 5…95 % at 55 °C without condensation
- IP degree of protection
- IP20
- Directives
- 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
- Product certifications
- CE; UL; CSA; RCM; EAC; Merchant Navy
- Standards
- IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G
- Environmental characteristic
- Hazardous location class I division 2
- Product weight
- 1.698 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 15.000 cm
- Package 1 Width
- 30.000 cm
- Package 1 Length
- 40.000 cm
- Package 1 Weight
- 2.230 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 130.3 mm
- Model
- Modular
- Height
- 134.6 mm
- Depth
- 64.6 mm
- Voltage type (supply voltage)
- DC
- Type of memory
- NVRAM
- Memory size
- 8192 kByte
- Processing time (1K, binary operation)
- 0.1 ms
- Number of HW-interfaces industrial Ethernet
- 4
- Number of HW-interfaces USB
- 1
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
- Explosion safety category for dust
- ATEX dust-ex-protection, Cat. 3D
- Performance level according to EN ISO 13849-1
- None
- Long-Term Evolution (LTE)
- No
- SIL according to IEC 61508
- None
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3606480927416
- SAP 1200083576
- Code 81946181
Product Documentation
