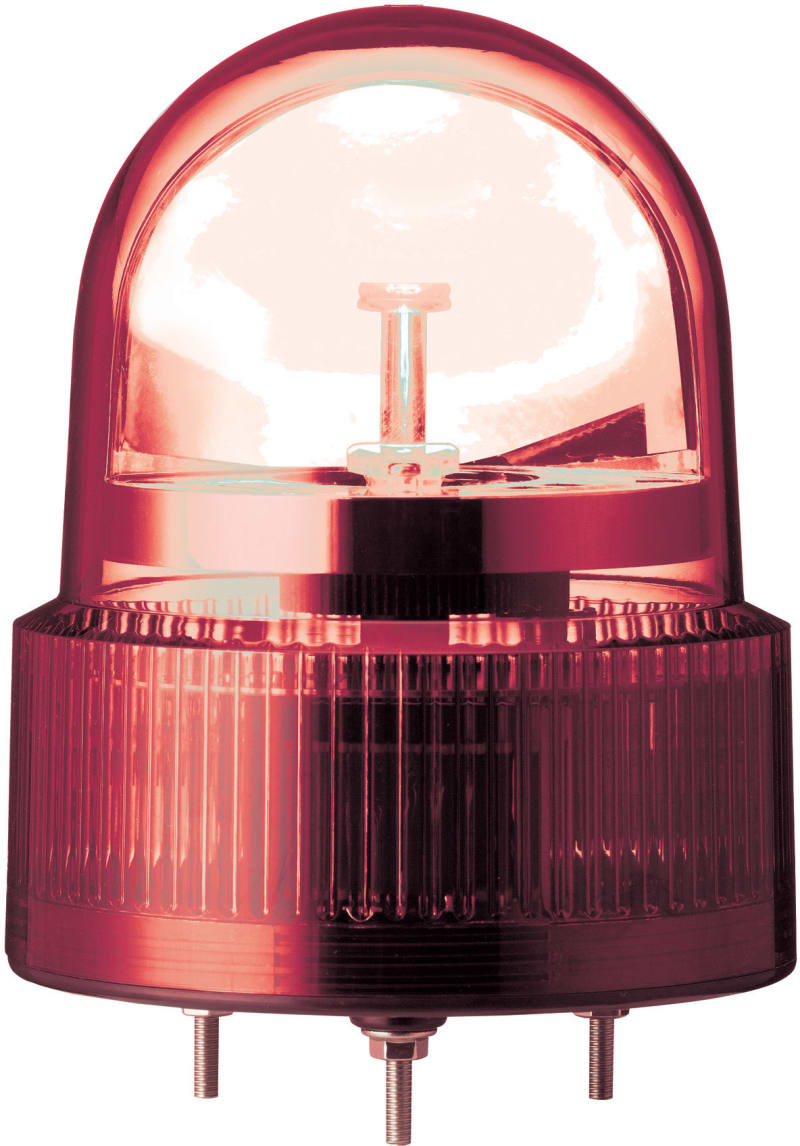

Schneider Electric Prewired rotating mirror beacon, Harmony XVR, 120 mm, red, without buzzer, 24 V AC DC XVR12B04
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XVR12B04 Rotary light 120mm 24V red LED.
Technical Specifications
- Manufacturer part number (MPN)
- XVR12B04
- EAN / GTIN
- 3606480033155
- Sales unit
- pcs
- Voltage
- 24 V
- Range of product
- Harmony XVR
- Product or component type
- Prewired rotating mirror beacon
- Sound signalling
- Without
- Device short name
- XVR
- Mounting diameter
- 120 mm
- IP degree of protection
- IP23 conforming to IEC 60529
- [Us] rated supply voltage
- 24 V AC/DC
- Light source
- High luminosity LED, red
- Material
- ABS (acrylonitrile butadiene-styrene): body part; AS: globe
- CAD overall width
- 120 mm
- CAD overall depth
- 120 mm
- Product weight
- 0.5 kg
- Marking
- CE
- Product mounting
- By 3 M5 screws
- Supply voltage limits
- 19…30 V DC; 21.6…26.4 V AC
- [Uimp] rated impulse withstand voltage
- 0.8 kV
- Current consumption
- 125 mA
- Flashing frequency
- 2.3 Hz
- Clamping connection capacity
- 0.83 mm²
- AWG gauge
- 18 AWG
- Cable length
- 400 mm
- Standards
- IEC 61000-6-2; IEC 61000-6-4
- Protective treatment
- TC
- Ambient air temperature for storage
- -35…70 °C
- Ambient air temperature for operation
- -10…50 °C
- Electrical shock protection class
- Class II conforming to IEC 61140
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 19.5 cm
- Package 1 Width
- 13.8 cm
- Package 1 Length
- 14 cm
- Package 1 Weight
- 612 g
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 8
- Package 2 Height
- 30 cm
- Package 2 Width
- 40 cm
- Package 2 Length
- 60 cm
- Package 2 Weight
- 6.186 kg
- Country of origin
- ID
- Warranty (in months)
- 18
- Nominal voltage
- 24 V
- Type of current
- AC/DC
- Electricity consumption
- 0.125 A
- Power
- 3.2 W
- Degree of protection (IP)
- IP23
- Colour of lamp hood
- Red
- Lamp type
- LED
- Optics
- Mirror
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606480033155
- SAP 1000253174
- Code 81133798
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric LED bulb with BA9S base - white - 24 V AC/DC DL1CJ0241
Schneider Electric
Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(11kW)/400...440V(22kW) ATS22D47Q
Schneider Electric
Schneider Electric FDP FX K I/O Card 4-In 2-Out
FFS00702530
Schneider Electric
Fan for ATV650/950 0,75-22kW
VX5VP50A001
Schneider Electric
Schneider Electric Soft starter, Altistart 480, 17A, 208 to 690V AC, control supply 110 to 230V AC ATS480D17Y
Schneider Electric
Schneider Electric APC Easy Rack PDU, Basic, 0U, 1 Phase, 3.7kW, 230V, 16A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet EPDU1116B
Schneider Electric
Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(37kW)/400...440V(75kW) ATS22C14Q
Schneider Electric

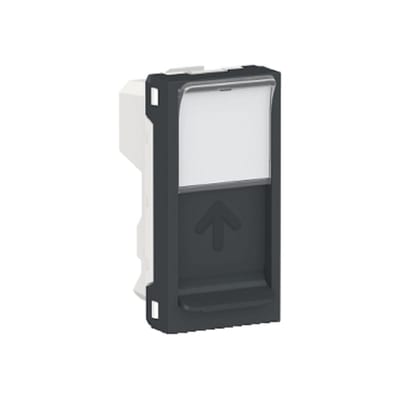

RJ45 Keyst cover, 1 mod ant
