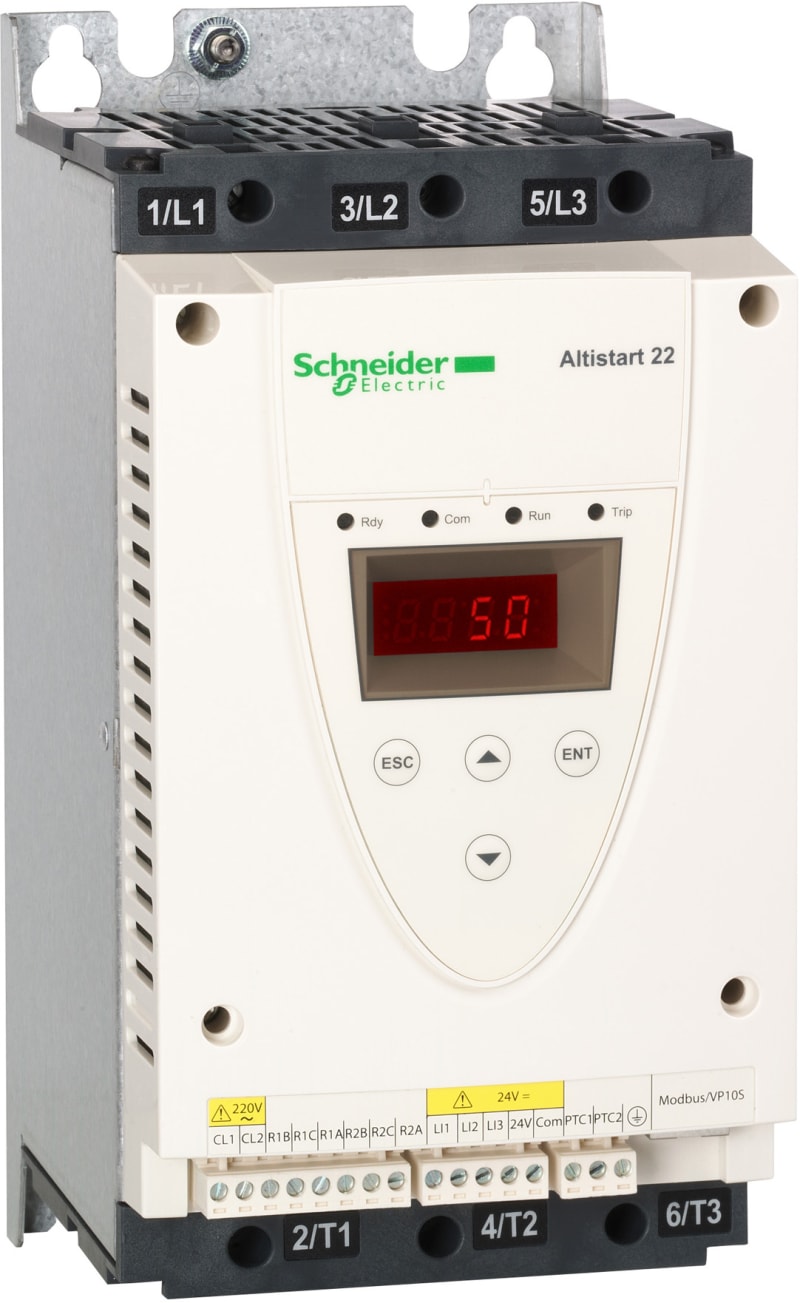

Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(11kW)/400...440V(22kW) ATS22D47Q

Schneider Electric ATS22D47Q Soft starter 47 A 230 - 440 V.

Manufacturer part number (MPN)

ATS22D47Q EAN / GTIN: 3606480167201 Sales unit: pcs Package quantity: 10 pcs Voltage: 440 V Rated current: 47 A Range of product: Altistart 22 Product or component type: Soft starter Product destination: Asynchronous motors Product specific application: Pumps and fans Component name: ATS22 Network number of phases: 3 phases [Us] rated supply voltage: 230...440 V - 15...10 % Motor power kW: 11 kW 230 V; 22 kW 400 V; 22 kW 440 V Factory setting current: 42 A Power dissipation in W: 48 W for standard applications Utilisation category: AC-53A Type of start: start with torque control (current limited to 3.5 In) IcL starter rating: 47 A for connection in the motor supply line for standard applications IP degree of protection: IP20 Assembly style: With heat sink Function available: Internal bypass Supply voltage limits: 195…484 V Supply frequency: 50...60 Hz - 10...10 % Network frequency: 45...66 Hz Device connection: To the motor delta terminals; In the motor supply line [Uc] control circuit voltage: 230 V - 15...10 % 50/60 Hz Control circuit consumption: 20 W Discrete output number: 2 Discrete output type: Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O; Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O minimum switching current: 100 mA at 12 V DC (relay outputs) Maximum switching current: 5 A 250 V AC resistive 1 relay outputs; 5 A 30 V DC resistive 1 relay outputs; 2 A 250 V AC inductive 0.4 20 ms relay outputs; 2 A 30 V DC inductive 7 ms relay outputs Discrete input number: 3 Discrete input type: (LI1, LI2, LI3) logic, 5 mA 4.3 kOhm Discrete input voltage: 24 V <= 30 V Discrete input logic: Positive logic LI1, LI2, LI3 at State 0: 11 V, >= 5 mA Output current: 0.4...1 Icl adjustable PTC probe input: 750 Ohm Communication port protocol: Modbus Connector type: 1 RJ45 Communication data link: Serial Physical interface: RS485 multidrop Transmission rate: 4800, 9600 or 19200 bps Installed device: 31 Protection type: Phase failure: line; Thermal protection: motor; Thermal protection: starter Marking: CE Type of cooling: Forced convection Operating position: Vertical +/- 10 degree Height: 265 mm Width: 130 mm Depth: 169 mm Product weight: 7 kg Motor power range AC-3: 7…11 kW at 200…240 V 3 phases; 15…25 kW at 380…440 V 3 phases Motor starter type: Soft starter Electromagnetic compatibility: Conducted and radiated emissions level A conforming to IEC 60947-4-2; Damped oscillating waves level 3 conforming to IEC 61000-4-12; Electrostatic discharge level 3 conforming to IEC 61000-4-2; Immunity to electrical transients level 4 conforming to IEC 61000-4-4; Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3; Voltage/current impulse level 3 conforming to IEC 61000-4-5 Standards: IEC 60947-4-2 Product certifications: CCC; C-Tick; UL; GOST; CSA Vibration resistance: 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6; 1.5 mm (f= 2…13 Hz) conforming to IEC 60068-2-6 Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27 Noise level: 45 dB Pollution degree: Level 2 conforming to IEC 60664-1 Relative humidity: 0…95 % without condensation or dripping water conforming to IEC 60068-2-3 Ambient air temperature for operation: -10…40 °C (without derating); 40…60 °C (with current derating 2.2 % per °C) Ambient air temperature for storage: -25…70 °C Operating altitude: 1000...< 2000 m with current derating of 2.2 % per additional 100 m Country of origin: ID Warranty (in months): 18 Function: Single direction With display: No Rated operating voltage Ue: 230–440 V Rated control supply voltage AC 50 Hz: 230 V Rated control supply voltage AC 60 Hz: 220–230 V Rated control supply voltage DC: 24 V Degree of protection (IP): IP20 Rated operation current Ie at 40 °C Tu: 47 A Rated power three-phase motor, inline, at 230 V: 11 kW Rated power three-phase motor, inline, at 400 V: 22 kW Rated power three-phase motor, inside delta, at 230 V: 18.5 kW Rated power three-phase motor, inside delta, at 400 V: 45 kW Rated surrounding temperature without derating: 40 °C Integrated motor overload protection: Yes Voltage type for actuating: AC Internal bypass: Yes Torque control: Yes
