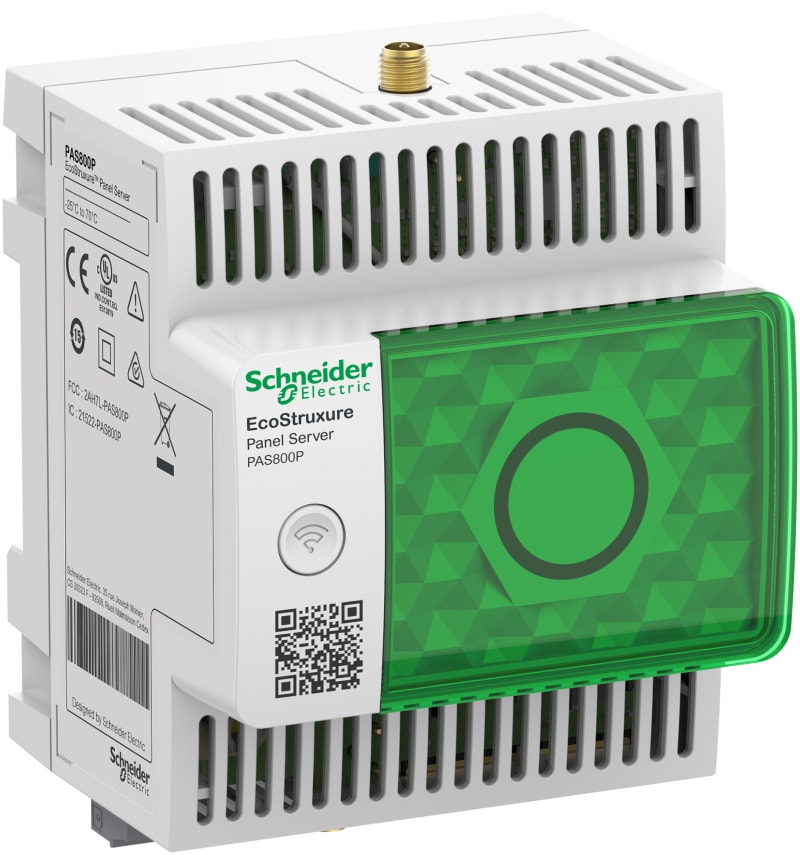

advanced data logger PAS800P

Schneider Electric PAS800P PAS800P advanced datalogger, energiserver, POE.

Manufacturer part number (MPN)

PAS800P

EAN / GTIN

3606481014368

Sales unit

pcs

Package quantity

27 pcs

Range

EcoStruxure

Product name

Panel Server Advanced

Product or component type

Gateway

Device short name

PAS800P

Device application

Gateway & energy server; Data logger

[Us] rated supply voltage

PoE

Communication gateway

Ethernet TCP/IP to wireless devices; Ethernet/serial

Product compatibility

Wireless access point

Maximum power consumption in W

3.5 W via PoE

Communication network type

Wi-Fi infrastructure5 GHz; Wi-Fi infrastructure2.4 GHz; Ethernet 10/100BASE-T; Ethernet PPPoE (Point-to-Point Protocol over Ethernet); Wi-Fi access point2.4 GHz; Wireless IEEE 802.15.4; Modbus RTU Modbus RTU client even/odd or none parity 1.2...115.2 kbit/s

Communication port protocol

Modbus TCP; DHCP; HTTPS; NTP/SNTP; IPv4; IPv6; TCP/IP

Communication port support

2 RJ45: ETHERNET; Screw terminal block: RS485

Number of server device(s)

32 Modbus RTU product(s) ; 128 Modbus TCP/IP product(s) ; 40 wireless (IEEE 802.15.4) product(s) - mixed; 85 wireless (IEEE 802.15.4) product(s) - depending on configuration

Number of devices

64 Modbus TCP/IP

Memory capacity

HW V2: 64 GB eMMC; HW V1: 32 GB eMMC; HW V1: 512 MB NAND

Number of inputs

0

Connections - terminals

Communication: screw terminal block (bottom) 0.14…1.5 mm² cable(s) ; Power supply: screw terminal block (top) 1.5…2.5 mm² cable(s)

Tightening torque

Communication: 0.25 N.m; Power supply: 0.6 N.m

Wire stripping length

Power supply: 7 mm; Communication: 7 mm

Number of connectors

2 screw connector for Wi-Fi and IEEE 802.15.4

Connector type

connector(s)1 x RP-SMA Wi-Fi for antenna bottom; connector(s)1 x RP-SMA IEEE 802.15.4 for antenna top

mounting mode

Clip-on

Mounting support

DIN rail

Product certifications

CE; cULus; CB; RCM; UKCA; FCC; IC; DNV Marine; ANSI RF; IACS E10

Standards

IEC 61010; IEC 61010-1; IEC 61010-2-201; UL 61010; UL 61010-1; UL 61010-2-201; EN 61010-1; EN 61010-2-201; CAN/CSA C22.2 No. 61010-1-12; CAN/CSA C22.2 No. 61010-2-201; IEC 62974-1; IEC 61326-1; EN 61326-1; ETSI EN 301 489-1; ETSI EN 301 489-17; EN 301-893; EN 55032; CISPR 11; ETSI EN 300 328; IEEE 802.15.4; IEEE 802.11a/b/g/n; IEEE 802.3 of/at; FCC CFR 47 part 15 class A; EN 62311; IEC 62311; IEC 60945; EN 62974-1

Depth

70.2 mm

Height

93 mm

Width

72 mm

Product weight

184 g

Data recording

Historical dashboarding and trending; 3 years data logs

Function available

Embedded web page for configuration and upgrade; Diagnosis capabilities; Diagnostic report; Diagnostics on communication; Embedded data logger; Event Logger; Energy management; With integrated web server; Firmware update; Configurable event; Backup/restore configuration; CSV export

Product specific application

Wireless Schneider Electric devices ecosystem

Topology

Separated Ethernet network; Switched Ethernet network

Web services

HTTPS server; SFTP publication (CSV / JSON); HTTPS publication (CSV / JSON); Alarm notification by e-mail

Communication service

Device Profile for Web Services (DPWS); Modbus TCP client; Modbus TCP server; SNTP client; DHCP client; Web server (energy & operation efficiency); RSTP

Commissioning interface

EcoStruxure Power Commission desktop; EcoStruxure Power Commission Mobile (through Wi-Fi Access point); EcoStruxure Power Commission web (for third party device integration); Web page

Realtime clock

With RTC-battery set; With user calibration

Time synchronisation protocol

NTP; SNTP

Range compatibility

EcoStruxure Facility Expert; EcoStruxure Building Operation; EcoStruxure Power Operation; EcoStruxure Power Monitoring Expert; EcoStruxure Asset Advisor; EcoStruxure Energy Hub; EcoStruxure Resource Advisor; Third party SCADA

Communication iinterface

Modbus and wireless (IEEE802.15.4) product

Relative humidity

5…95 %

IP degree of protection

IP40 (front face); IP20 (casing)

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Pollution degree

2

Operating altitude

< 2000 m

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.8 cm

Package 1 Width

9 cm

Package 1 Length

11.2 cm

Package 1 Weight

276 g

Unit Type of Package 2

S03

Number of Units in Package 2

27

Package 2 Height

30 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

8.106 kg

Country of origin

IN

Warranty (in months)

18

Mounting method

Built-in installation

Operating voltage

24 V

Voltage type

DC

Number of channels

1

Power consumption

3.5 W

Bus system KNX

No

Bus system radio frequency

Yes

Bus system Powernet

No

Width in number of modular spacings

4

Bus system LON

No

Demounting protection

No

Radio interface

Yes

IR interface

No

Protocol

TCP/IP

Provider dependent

No

Updateable

Yes

Visualization

No

Web-Server

Yes

Degree of protection (IP)

IP30

With LED indication

Yes

Bus system KNX-RF (Radio Frequency)

No

Radio frequency bidirectional

Yes

Max. number of devices per channel

128

HS Code

8517.62

• EAN 3606481014368
• SAP 1200595196
• Code 82968259
