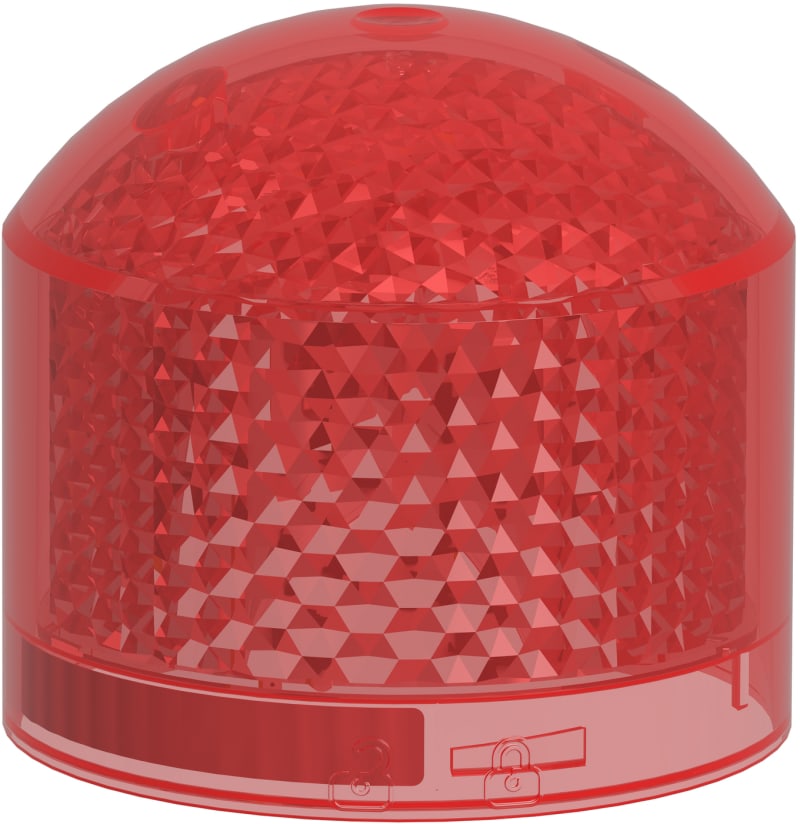

Light Unit for top 2J flash LED in red

Schneider Electric XVB7L64 Light Unit for XVB7 lyskolonne in Ø70 mm for mounting on top in red with LED flash on 2J.

Manufacturer part number (MPN)

XVB7L64

EAN / GTIN

3606487129561

Sales unit

pcs

Package quantity

30 pcs

Range of product

Harmony XVB7

Product or component type

Light module

Device composition

Beacon lens

Device short name

XVB7

Mounting diameter

70 mm

Signalling type

Flashing

Light color

LED, red

Material

PC (polycarbonate)

Product weight

0.108 kg

Mounting position

Upright/inverted

Flashing frequency

2 Hz

Service life in hours

50000 h

[Ue] rated operational voltage

24 V AC/DC

Rated operational voltage limits

21.6...26.4 V AC/DC

Current consumption

180 mA at 24 V AC; 250 mA at 24 V DC

Inrush current

1 A

Electrical shock protection class

Class II

[Ui] rated insulation voltage

50 V

[Uimp] rated impulse withstand voltage

0.5 kV

Pollution degree

2

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…70 °C

IP degree of protection

IP66

Environmental Type ratings

UL type 4X/13

Vibration resistance

6 gn, amplitude = +/- 0.5 mm (f = 10…500 Hz)in operation

Shock resistance

30 gn (duration = 6 ms) for in operation

Standards

UL 60947-5-1; IEC 60947-5-1; CSA C22.2 No 60947-5-1

Product certifications

cULus; CCC; RCM; UKCA; CE

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.500 cm

Package 1 Width

7.300 cm

Package 1 Length

7.500 cm

Package 1 Weight

95.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

60

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.177 kg

Country of origin

DE

Warranty (in months)

18

Colour

Red

Outer diameter

70 mm

Function

Flash light

Housing colour

Red

Voltage type

AC/DC

Lamp type

LED

Degree of protection (IP)

IP66

Repetition frequency settable

No

HS Code

8531.80

• EAN 3606487129561
• SAP 1200846282
• Code 84041286
