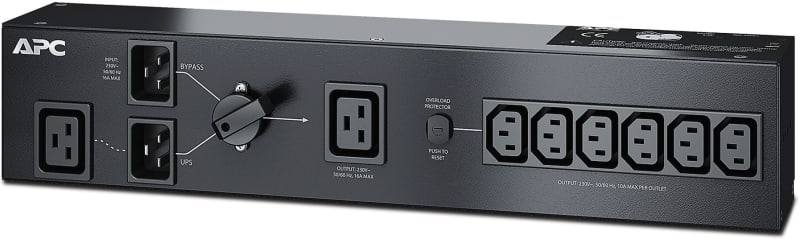

Schneider Electric APC Service Bypass PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C19 SBP3000RMI
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SBP3000RMI APC/Easy bypasspanel - 16A, 230V, Rack 2U, for 2-3kVA, in: 1x C20, out: 6x C13 1x C19.
Technical Specifications
- Manufacturer part number (MPN)
- SBP3000RMI
- EAN / GTIN
- 0731304266747
- Sales unit
- pcs
- Voltage
- 230 V
- Rated current
- 16 A
- Main Input Voltage
- 230 V
- Product or component type
- Bypass kit
- Main Output Voltage
- 230 V
- Input Connection Type
- IEC 60320 C20
- Number of rack unit
- 2U
- Cable length
- 2.5 m
- Number of cables
- 1
- Provided equipment
- User manual; Rack mounting brackets
- Range of product
- Maintenance Bypass Panels
- Colour
- Black
- Height
- 89 mm
- Width
- 432 mm
- Depth
- 76 mm
- Product weight
- 2.09 kg
- Mounting location
- Front
- Mounting preference
- No preference
- mounting mode
- Rack-mounted
- Network frequency
- 50/60 Hz
- permissible voltage
- 220…240 V
- Max line current
- 16 A
- Input current limits
- 16 A
- Load capacity
- 3000 VA
- Power factor
- 0…1
- Max current draw
- 16 A
- Number of power socket outlets
- 6 IEC 60320 C13 ; 1 IEC Jumpers ; 1 IEC 60320 C19
- Protection type
- Circuit breaker
- Power cable length
- 1.00 m
- Efficiency
- 99 %
- Product certifications
- VDE
- Standards
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...15000 ft
- Ambient air temperature for storage
- -15…45 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0…15240 m
- Number of Units in Package 1
- 1
- Country of origin
- IN
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304266747
- SAP 1000177546
- Code 8693662
