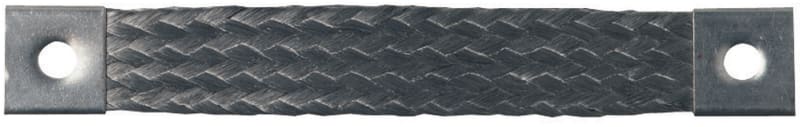

Schneider Electric NSYEB2050D8 Earthing Braid 50 mm² 200 mm 8.5 mm Eyelet Pack 10

Schneider Electric NSYEB2050D8 is an earthing braid from the PanelSeT range, supplied in packs of ten. Each tinned-copper braid is 200 mm long by 33 mm wide with a 50 mm² nominal cross section and an 8.5 mm eyelet hole for nut-and-washer fixing at the earth connection point. Typical use is bonding cabinet doors, mounting plates and removable panels to the enclosure earth in low-voltage switchgear. Manufactured in Italy.

Manufacturer part number (MPN)

NSYEB2050D8

EAN / GTIN

3606480064074

Sales unit

pcs

Package quantity

10 pcs

Range

PanelSeT

Anwendung

Multi-purpose

Product or component type

Earthing braid

Device composition

1 braid

Quantity per set

Set of 10

Material

Tinned copper

Fixing mode

Nut and washer - on earth connection location

Length

200 mm

Width

33 mm

Nominal cross section

50 mm²

Diameter

8.5 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.000 cm

Package 1 Width

2.000 cm

Package 1 Length

20.000 cm

Package 1 Weight

174.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

3.000 cm

Package 2 Width

8.500 cm

Package 2 Length

24.500 cm

Package 2 Weight

1.744 kg

Unit Type of Package 3

PAM

Number of Units in Package 3

1000

Package 3 Height

45.000 cm

Package 3 Width

100.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

520.000 kg

Country of origin

IT

Warranty (in months)

18

Model

Ground strap

Height

205 mm

Depth

4 mm

HS Code

7419.99

• EAN 3606480064074
• SAP 1000317467
• Code 8775750
