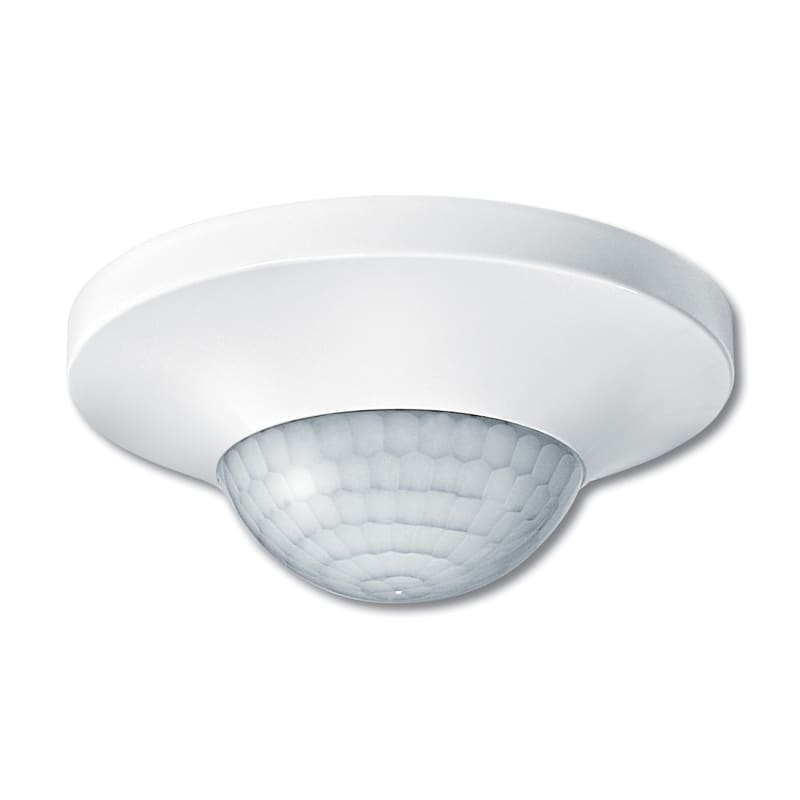

Schneider Electric MTN630919 SpaceLogic KNX ARGUS Presence Detector 360° with Light Control and IR
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric MTN630919 is a SpaceLogic KNX ARGUS presence detector with integrated constant-light control and an infrared receiver, in a polar-white flush-mount housing. The 360° scan gives a 7 m lateral detection radius at the recommended 2.5 m mounting height, with light-sensitivity adjustment and six configurable channels on the KNX bus. Power supply input is approximately 10 mA and the detector is rated IP20 for indoor ceiling installation. Typical use is combined presence and daylight-linked lighting control in offices, classrooms and meeting rooms.
Technical Specifications
- Manufacturer part number (MPN)
- MTN630919
- EAN / GTIN
- 3606485099804
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- SpaceLogic KNX
- Product or component type
- Presence detector
- Bus type
- KNX
- Colour tint
- Polar white
- Power supply input current
- 10 mA
- Device presentation
- Complete product
- Number of channels
- 6
- Protection type
- Creep zone protection
- Type of setting
- Light sensitivity adjustable
- Duty cycle
- 15300 minutes
- Time delay range
- 0...1 s (switch-on)
- Detection face
- Lateral: 7 m
- Detection angle
- 360° horizontal
- Device mounting
- Flush
- Mounting height
- 2.5 m
- IP degree of protection
- IP20
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.000 cm
- Package 1 Width
- 14.300 cm
- Package 1 Length
- 18.200 cm
- Package 1 Weight
- 184.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 6
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 1.512 kg
- Country of origin
- LV
- Warranty (in months)
- 18
- Other bus systems
- None
- Model
- Presence detector
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9010
- Optimum mounting height
- 2.5 m
- Max. reach sideways
- 7 m
- Max. reach frontally
- 7 m
- Diameter reach on floor
- 14 m
- Min. switch-on time
- 1 s
- Max. duty cycle
- 15300 min
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606485099804
- SAP 1000503258
- Code 8881569
Product Documentation
More from Schneider Electric
Schneider Electric

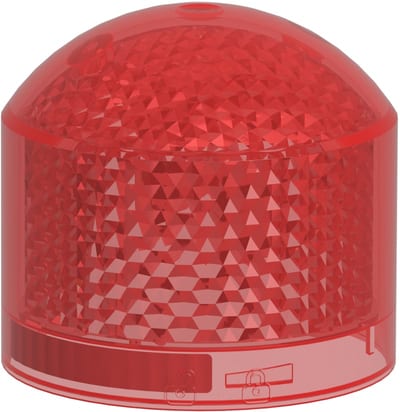

Light Unit for top 2J flash LED in red
XVB7L64
Schneider Electric

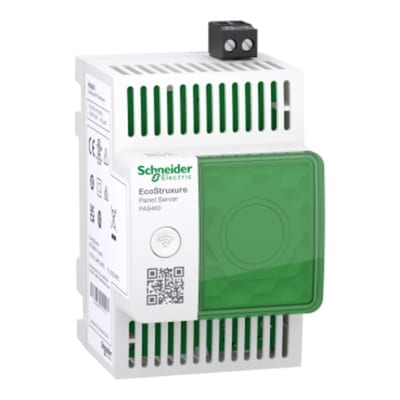

Panel Server Entry 110-277VAC/DC
PAS400
Schneider Electric

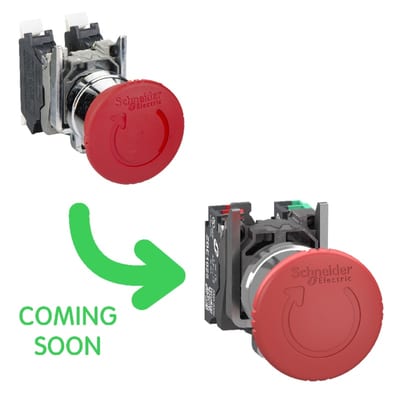

Schneider Electric Emergency stop switching off, Harmony XB4, metal, red mushroom 40mm, 22mm, trigger turn to release, 1 NO + 1 NC, push in XB4BS84455
Schneider Electric

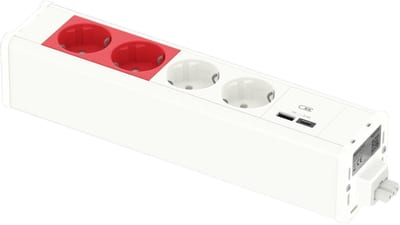

Module unit 2HV 2RED kraft+USB
INS44244
Schneider Electric

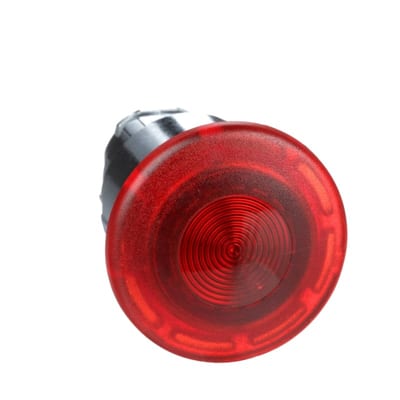

Mushroom Button with Light, Push/Pull, Red
ZB4BW643
Schneider Electric
Schneider Electric 5583042 Wall Bracket KV123M with Loose Rib Holder for 80-140 mm Duct
Schneider Electric

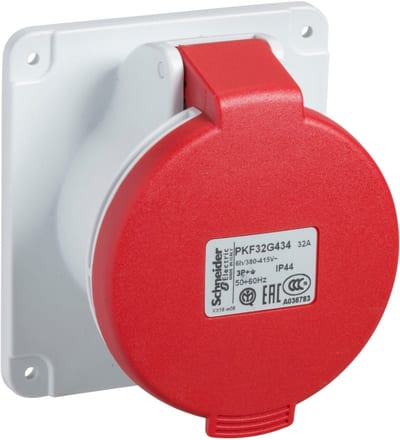

Schneider Electric Socket, Mureva PK, panel-mounted, straight, 32A, 3P+N+E, 400V, IP44 PKF32G435
Schneider Electric

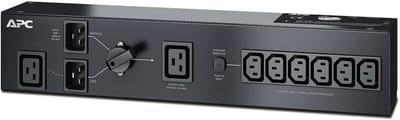

Schneider Electric APC Service Bypass PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C19 SBP3000RMI
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy MTN630919?
- MTN630919 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is MTN630919.
- What is the HS code for MTN630919?
- The customs tariff (HS) code for MTN630919 is 8536.50.
- Who manufactures MTN630919?
- MTN630919 is a Schneider Electric product in the Lighting & Electrical Accessories range.
- Is a datasheet available for MTN630919?
- Yes — the MTN630919 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for MTN630919?
- The minimum order quantity is 1.
- Is MTN630919 available?
- Yes — MTN630919 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
