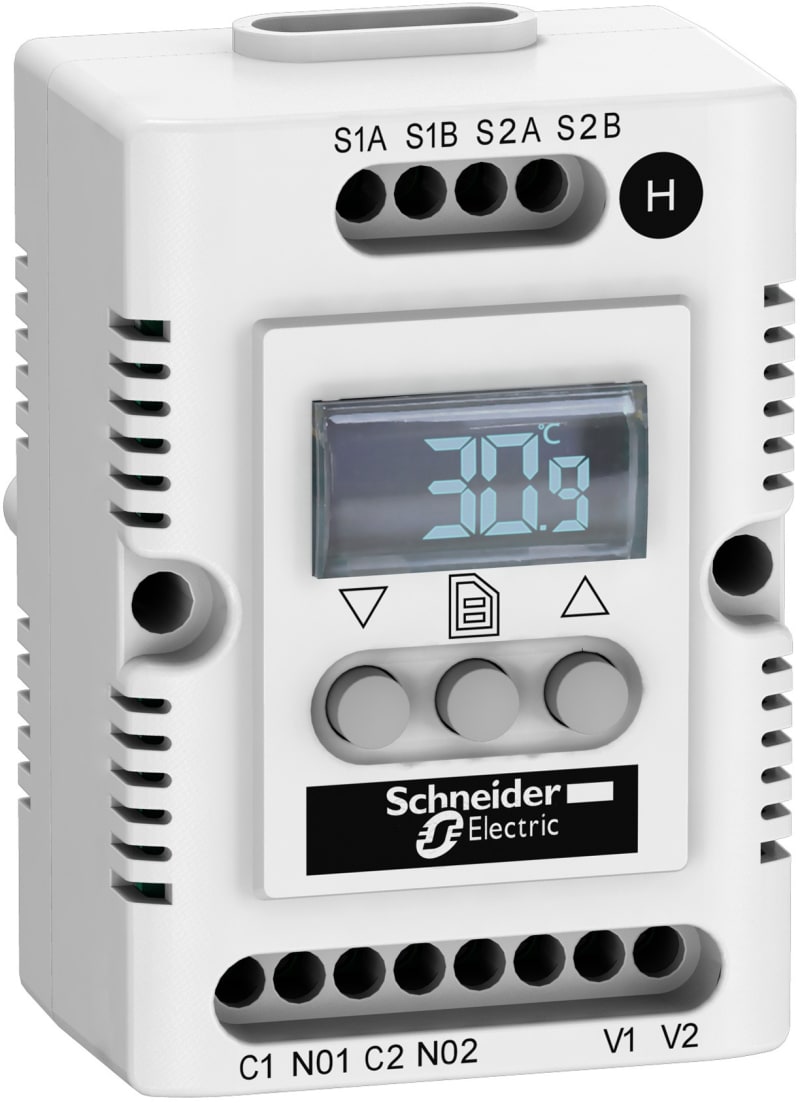

Schneider Electric Climasys CC - Electronic thermostat 200..240V - range of temperature -40…80°C NSYCCOTH230VID
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCCOTH230VID ELECTRONIC THERMOSTAT 230V.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCCOTH230VID
- EAN / GTIN
- 3606480152627
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 75 pcs
- Voltage
- 230 V
- Range
- ClimaSys
- Product name
- ClimaSys CC
- Product or component type
- Electronic thermostat
- Temperature setting range
- -40…80 °C
- Display type
- OLED screen
- Information displayed
- Temperature in °F; Temperature in °C
- Input voltage
- 200...240 V AC
- Sensor type
- Optional NTC external sensor
- Maximum switching capacity
- 4 A 230 V AC
- Electrical connection
- 10 terminals, clamping capacity: 2.5 mm²
- mounting mode
- Clipped; By screws
- Height
- External: 85 mm
- Width
- External: 56 mm
- Depth
- External : 44 mm
- Mounting location
- Cross rails; On mounting plate; Spacial upright; 35 mm DIN rail
- Ambient air temperature for operation
- -40…80 °C
- Hysteresis
- 2 K programmed value
- Number of outputs
- 2 ventilation/heating function
- Material
- PC
- Colour
- Light grey
- Flame retardance
- Self-extinguishing conforming to UL94 (material V0)
- Product certifications
- UR
- Country of origin
- CN
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480152627
- SAP 1000470043
- Code 8579535
Product Documentation
More from Schneider Electric
Schneider Electric

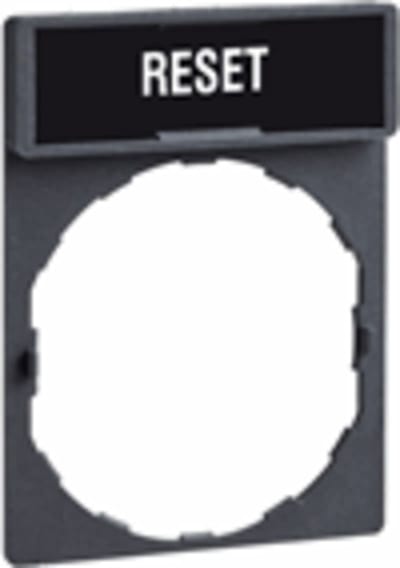

Schneider Electric Legend Holder with 'RESET' Legend
ZBY2323
Schneider Electric

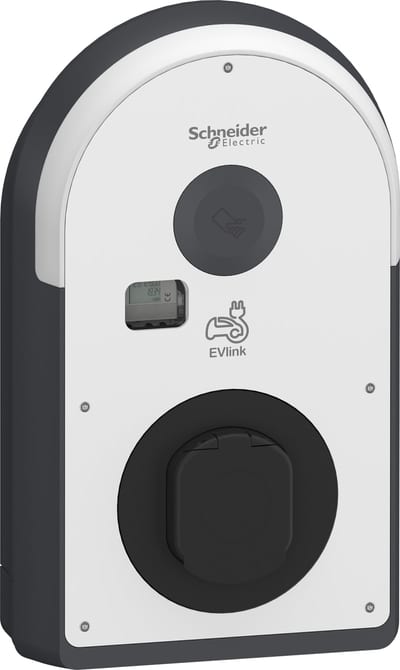

Schneider Electric Charging station, EVlink Pro AC/AC Metal, 7.4kW, 32A, 1P+N, T2S socket-outlet, RDC-DD 6MA, MNx aux., MID meter EVB3S07N40M
Schneider Electric

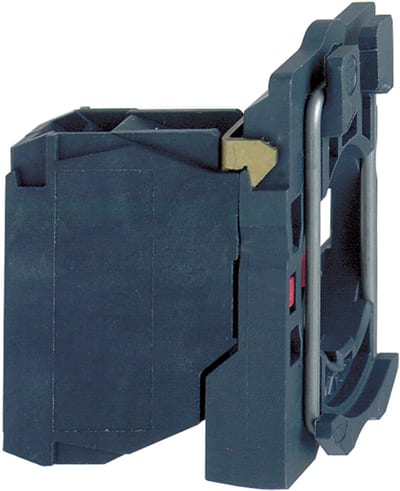

Schneider Electric Single contact block with body/fixing collar, plastic, screw clamp terminal, 1 NC ZB5AZ102
