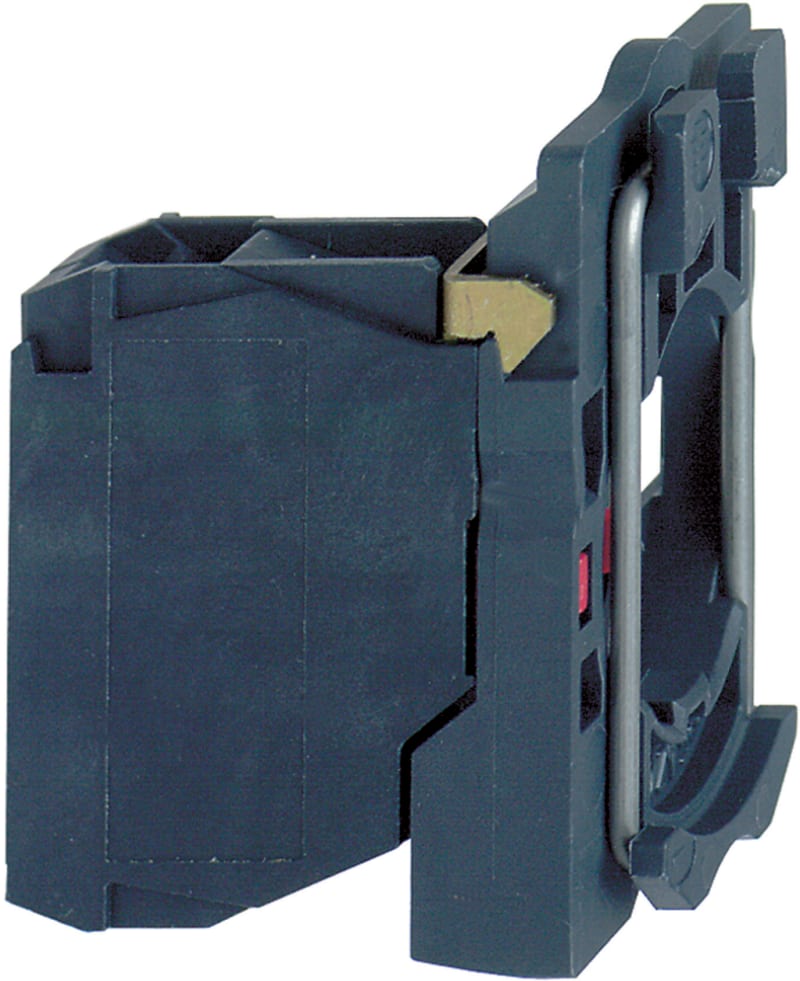

Schneider Electric Single contact block with body/fixing collar, plastic, screw clamp terminal, 1 NC ZB5AZ102

Schneider Electric ZB5AZ102 Push Button Body with 1NC Element.

Manufacturer part number (MPN)

ZB5AZ102

EAN / GTIN

3389110924411

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5

Product or component type

Complete body/contact assembly

Device short name

ZB5

Fixing collar material

Plastic

Sale per indivisible quantity

1

Head type

Standard

Contacts type and composition

1 NC

Contact operation

Slow-break

Contact block type

Single

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

CAD overall width

30 mm

CAD overall height

42 mm

CAD overall depth

32 mm

Terminals description ISO n°1

(11-12)NC

Product weight

0.021 kg

Device composition

Body; Fixing collar

Contacts usage

Standard contacts

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

1.5 mm (NC changing electrical state); 4.3 mm (total travel)

Operating force

2 N NC changing electrical state

Mechanical durability

10000000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4

Device presentation

Basic sub-assemblies

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

IP degree of protection

IP20 conforming to IEC 60529

Standards

UL 508; IEC 60947-5-1; JIS C8201-5-1; IEC 60947-1; CSA C22.2 No 14; IEC 60947-5-4; JIS C8201-1

Product certifications

BV; UL; CSA; DNV; LROS (Lloyds register of shipping)

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.500 cm

Package 1 Width

3.400 cm

Package 1 Length

5.400 cm

Package 1 Weight

20.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

300

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.512 kg

Unit Type of Package 3

P06

Number of Units in Package 3

2400

Package 3 Height

75.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

64.604 kg

Country of origin

FR

Warranty (in months)

18

HS Code

8536.50
