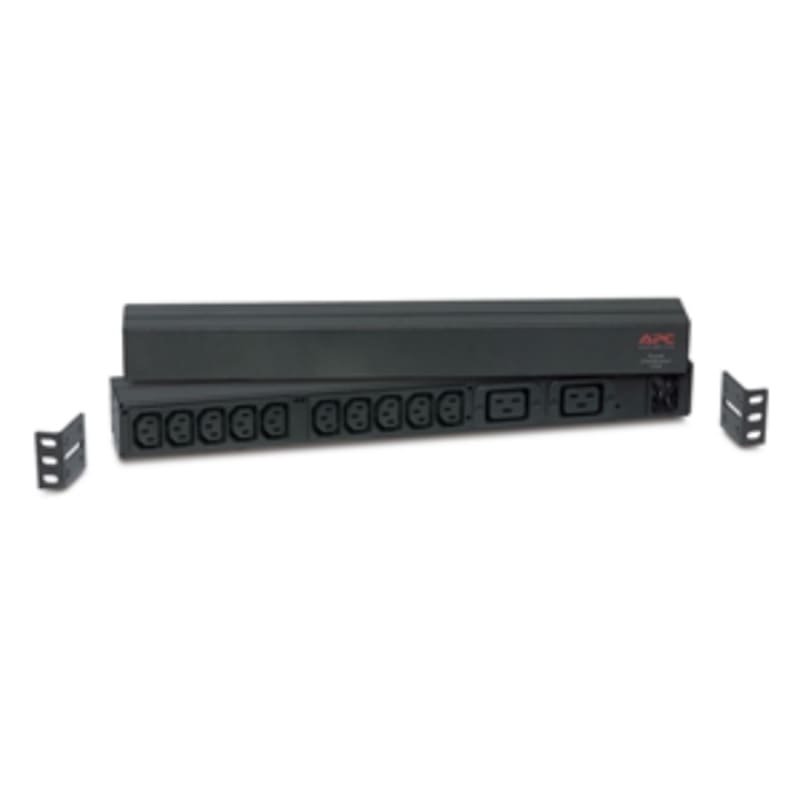

Schneider Electric Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19 AP9559
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AP9559 Spare parts / accessories.
Technical Specifications
- Manufacturer part number (MPN)
- AP9559
- EAN / GTIN
- 0731304123521
- Sales unit
- pcs
- Package quantity
- 70 pcs
- Colour
- Black
- Product or component type
- PDU
- PDU type
- Basic
- Cord length
- 2.49 m
- Number of cables
- 1
- Provided equipment
- User manual; Rack mounting brackets
- Input Voltage
- 120 V; 208 V; 230 V
- Height
- 44 mm
- Width
- 447 mm
- Output Voltage
- 120 V; 208 V; 230 V
- Depth
- 57 mm
- Product weight
- 0.98 kg
- Mounting location
- Front; Rear
- Mounting preference
- No preference
- Input Plug Type
- IEC 60320 C20
- mounting mode
- Rack-mounted
- Rack units
- 1U
- Mounting position
- Horizontal
- permissible voltage
- 90…250 V
- Max line current
- 16 A
- Input current limits
- 16 A
- Load capacity
- 3680 VA
- Network frequency
- 50/60 Hz
- Outlet type and quantity
- 10 IEC 60320 C13 ; 2 IEC 60320 C19
- Product certifications
- cUL listed; CE; UL listed; VDE; Victoria
- Ambient air temperature for operation
- 0…45 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0…15240 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 16.5 cm
- Package 1 Width
- 48.3 cm
- Package 1 Length
- 15.2 cm
- Package 1 Weight
- 2.355 kg
- Country of origin
- IN
- Warranty (in months)
- 24
- Nominal current
- 16 A
- Mounting direction
- Horizontal
- Electrical connection
- Connection cable with plug
- Cable length
- 2.5 m
- Number of C13 socket outlets
- 10
- Number of C19 socket outlets
- 2
- Number of height units
- 1
- Length
- 57 mm
- Supply voltage
- 230 V
- Overvoltage category
- 1
- Interface ethernet
- No
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 0731304123521
- SAP 1000577545
- Code 8272515
Product Documentation
More from Schneider Electric
Schneider Electric

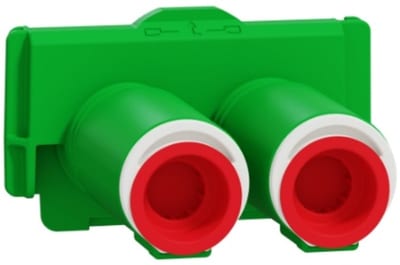

Double flex spigot 2X16/20 mm
IMT80292
Schneider Electric
Exiway Smartled pictogram 4SC45°SG
OVA53165
Schneider Electric
Schneider Electric APC Easy Rack PDU, Basic, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet EPDU1132B
Schneider Electric

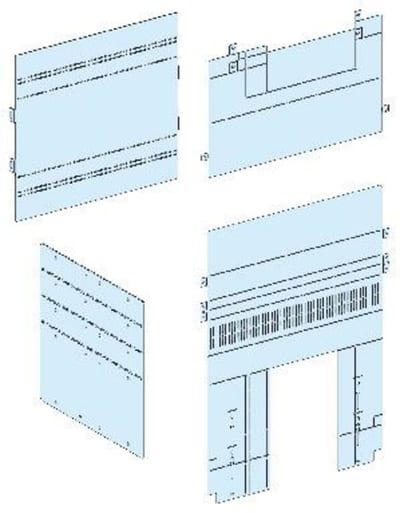

Schneider Electric Front Vertical Connection Cover NS-MTZ1/NT PrismaSet P LVS04852
Schneider Electric

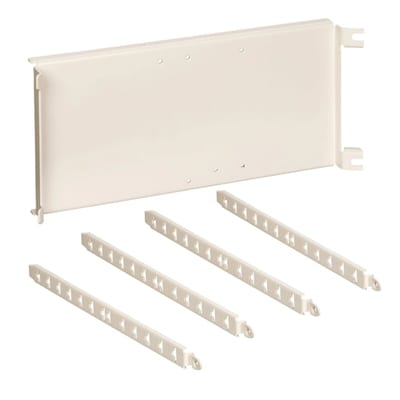

Mounting plate NSXM-VERTICAL-B400-PRISMASET P
LVS03405
Schneider Electric

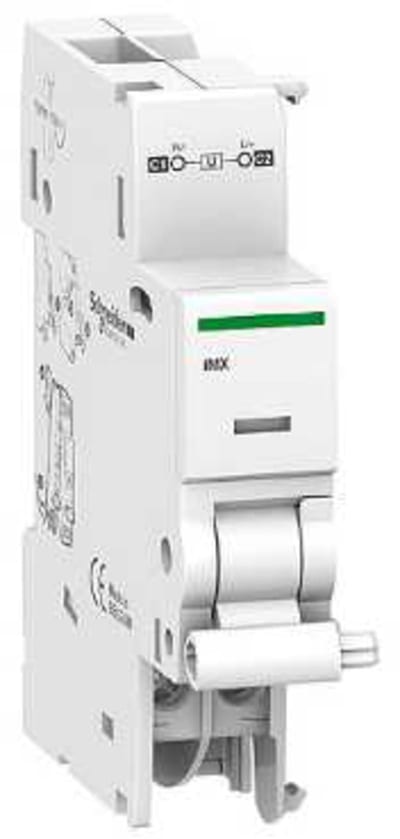

Schneider Electric Shunt trip release, ACTI9 iMX, 12V…24V AC or DC A9A26478
Schneider Electric

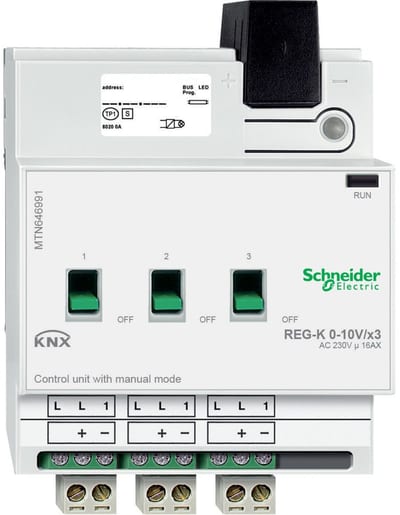

Schneider Electric Control unit 0-10 V REG-K/3-GANG with manual mode, light grey MTN646991
