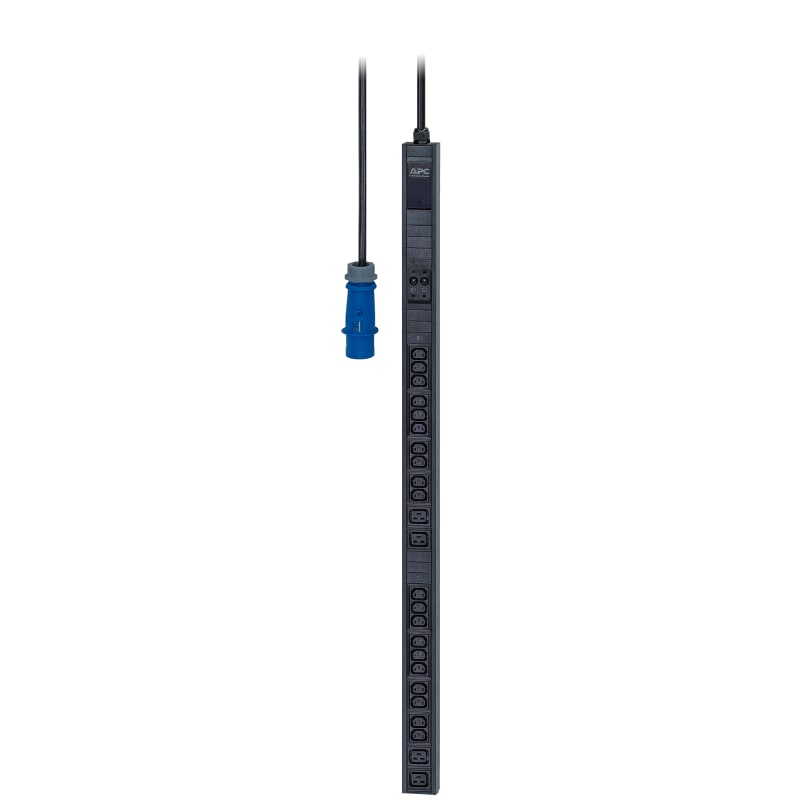

Schneider Electric APC Easy Rack PDU, Basic, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet EPDU1132B

Schneider Electric EPDU1132B Easy PDU Basic Free-standing 32A 230V OUTLET: 20 pcs C13 & 4 pcs C19 / 1 pcs POWER SUPPLY:1 pcs IEC60309 Blue.

Manufacturer part number (MPN)

EPDU1132B

EAN / GTIN

0731304405023

Sales unit

pcs

Voltage

230 V

Rated current

32 A

Colour

Black

Product or component type

PDU

PDU type

Basic

Cord length

2.99 m

Number of cables

1

Provided equipment

Installation guide; Toolless mounting kit; Vertical mounting brackets

Input Voltage

200 V; 208 V; 230 V

Height

1175 mm

Width

62 mm

Output Voltage

230 V

Depth

44.4 mm

Product weight

3.58 kg

Mounting location

Side

Mounting preference

No preference

Input Plug Type

IEC 60309 32 A 2P + E

mounting mode

Rack-mounted

Rack units

0U

Mounting position

Vertical

Input current limits

32 A

Load capacity

7360 VA

Network frequency

50/60 Hz

Outlet type and quantity

20 IEC 60320 C13 ; 4 IEC 60320 C19

Product certifications

CE; TÜV

Ambient air temperature for operation

0…45 °C

Relative humidity

5…95 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-25…65 °C

Storage Relative Humidity

5…95 %

Storage altitude

0…9144 m

Number of Units in Package 1

1

Country of origin

CN

Warranty (in months)

12

With surge protection module

No

Mounting direction

Vertical

Electrical connection

Connection cable with plug

Cable length

3 m

Number of C13 socket outlets

20

Number of C19 socket outlets

4

Length

1175 mm

Supply voltage

230 V

Mains filter

No

Switchable

Yes

With meter

No

Control function

Yes

SNMP

No

Interface ethernet

Yes

With display

No

With LED indication

Yes

With fuse

No

Ampere meter

No

Temperature measurement

No

With mounting material

Yes

HS Code

8544.42

• EAN 0731304405023
• SAP 1200422144
• Code 82461923
