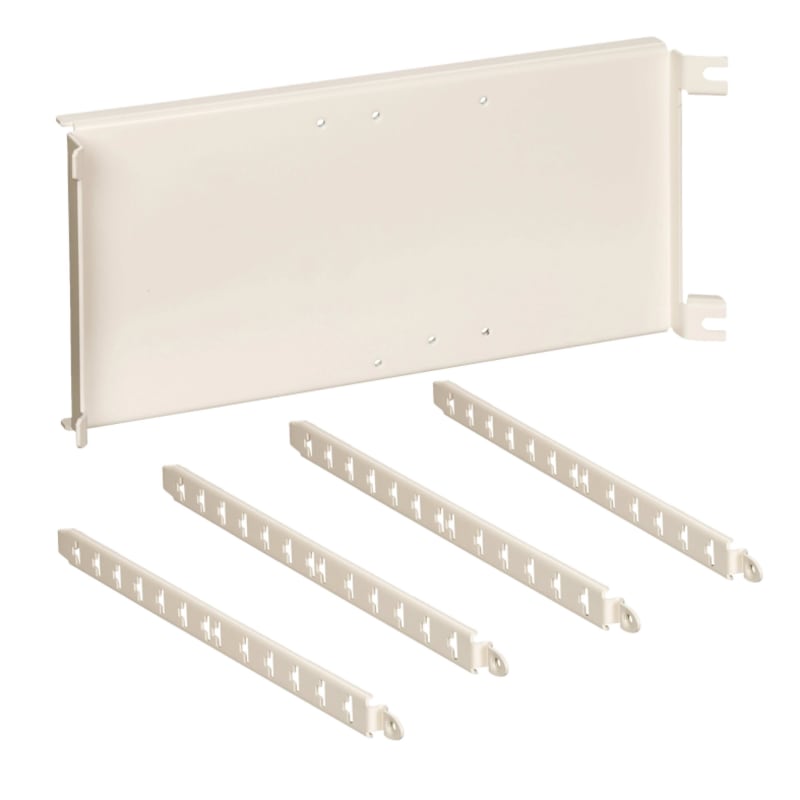

Mounting plate NSXM-VERTICAL-B400-PRISMASET P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03405 Mounting plate NSXm-tilting or dreiehandtak-vertical mounting in 400mm section-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03405
- EAN / GTIN
- 3606481870971
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 400 mm depth 400 mm
- Mounting plate description
- Dedicated
- Installed device
- ComPact: fixed NSXm without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSXm without earth leakage protection - control: direct rotary handle - vertical installation; ComPact: fixed NSXm with earth leakage protection - control: toggle - vertical installation
- Poles description
- 1 x 3P or 4P: fixed NSXm vertical installation
- Number of vertical modules [50 mm]
- 8 module(s): NSXm without earth leakage protection , direct in 400 mm Widecubicle; 8 module(s): NSXm with earth leakage protection , direct in 400 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 325 mm
- Height
- 150 mm
- Functional unit
- 400 mm 400 mm PrismaSeT P cubicle ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 8 162.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSXm without fixed direct rotary handle vertical 3P or 4P 1 direct 8 162.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 8 162.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.300 cm
- Package 1 Width
- 14.900 cm
- Package 1 Length
- 37.500 cm
- Package 1 Weight
- 1.493 kg
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 10
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 15.729 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 120
- Package 3 Height
- 102.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 200.000 kg
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481870971
- SAP 1200547264
- Code 82880348
