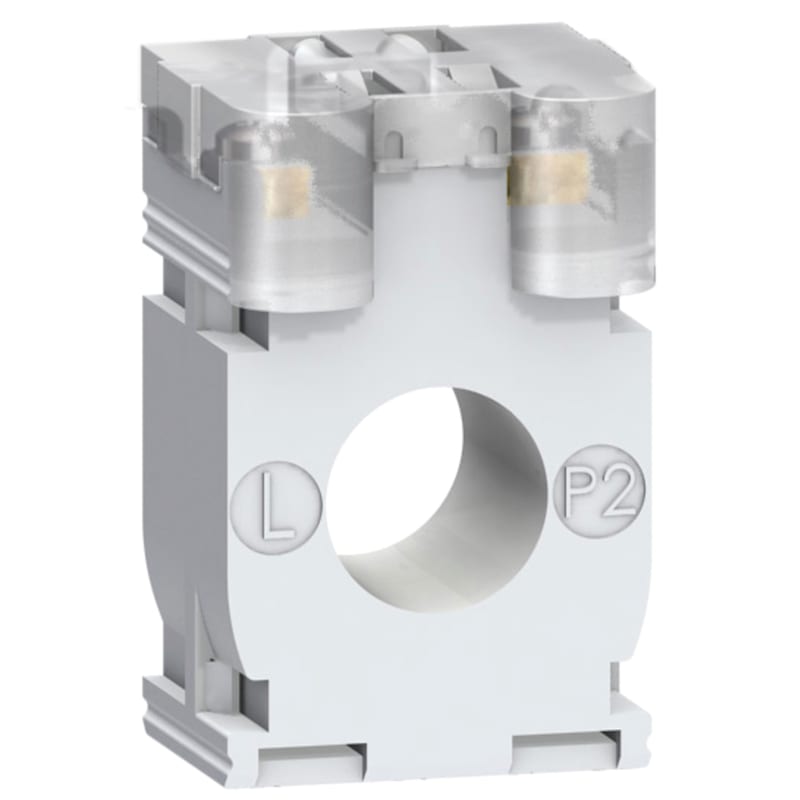

Current Transformer 50/5 Cable Ø21

Schneider Electric METSECT5CC005 CT Current transformers with 5 A secondary current used together with an ammeter.

Manufacturer part number (MPN)

METSECT5CC005

EAN / GTIN

3303431123414

HS code

8544.42

Sales unit

pcs

Diameter

21 mm

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 1 at 1.25 VA; Class 3 at 1.5 VA

[In] rated current

50 A

Current transformer type

Tropicalised for cable; Solid core

Current transformer ratio

50/5

[Ith] conventional free air thermal current

3 kA

Dynamic withstand current

2.5 Ith

Maximum safety factor

5

[Ue] rated operational voltage

< 720 V AC 50/60 Hz

[Ui] rated insulation voltage

3 kV 50 Hz for 1 minute

mounting mode

Clip-on; By screws

Mounting support

Mounting plate; DIN rail

Width

Outside: 44 mm

Height

Outside: 65 mm

Depth

Frame : 30 mm; Total : 37 mm

Product weight

0.19 kg

[Uimp] rated impulse withstand voltage

3 kV

Electrical insulation class

Class B

Cable outer diameter

21 mm

Sealing

With

Standards

VDE 0414; IEC 61869-2

Product certifications

CE

IP degree of protection

IP20

Relative humidity

0…95 %

Ambient air temperature for operation

-25…60 °C

Number of Units in Package 1

1

Number of Units in Package 2

50

Country of origin

TN

Warranty (in months)

18

HS Code

8544.42
