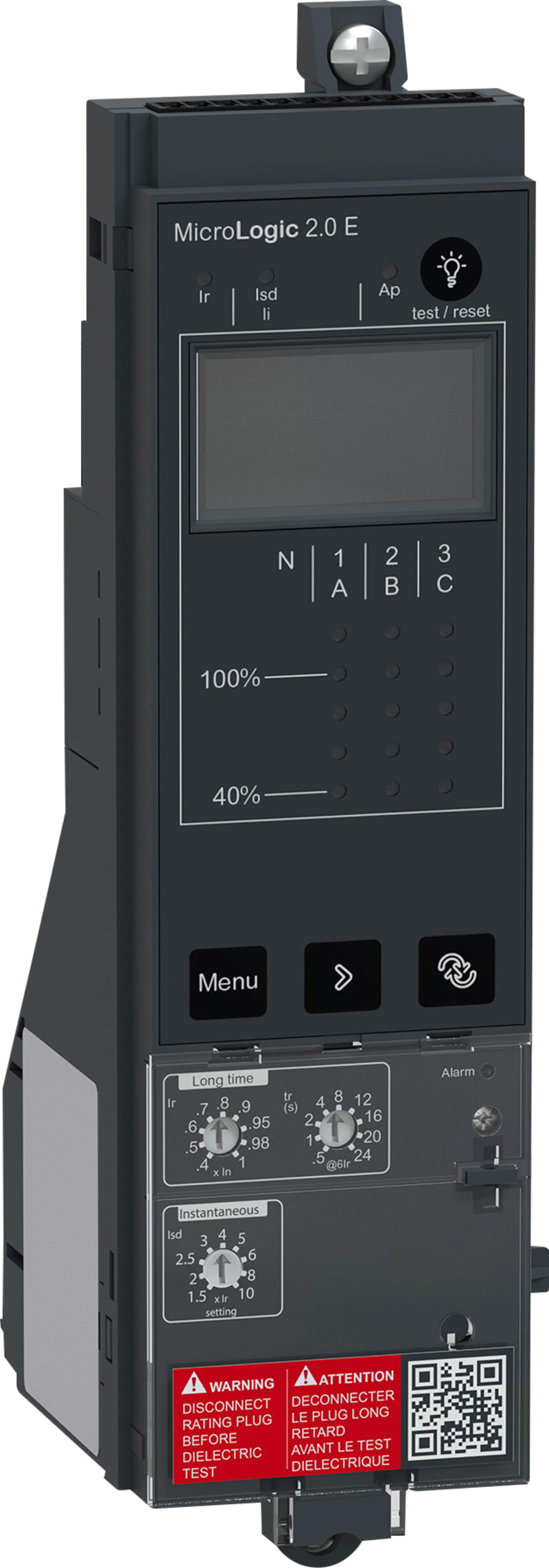

Schneider Electric Control unit MicroLogic 2.0E, ComPacT NS630B to NS3200 fixed and manually operated, basic protections C2EFM

Schneider Electric C2EFM Protection-Micrologic 2.0E for Circuit breaker ComPacT NS630b for NS3200-manual-fixed-mounted.

Manufacturer part number (MPN)

C2EFM

EAN / GTIN

3606482098299

HS code

8536.90

Sales unit

pcs

Range

ComPacT

Range of product

ComPacT NS630b...1600 new generation; ComPacT NS1600b...3200 new generation

Product or component type

Control unit

Trip unit name

MicroLogic 2.0 E

Trip unit technology

Electronic

Range compatibility

ComPacT NS630b...1600; ComPacT NS1600b...3200

Device application

Distribution

Number of poles

4P; 3P

Protected poles description

4t; 3t; 3t + N/2

Trip unit protection functions

Basic protection

Protection type

L : for overload protection (long time); I : for instantaneous short-circuit protection

Trip unit rating

630 A at 50 °C; 800 A at 50 °C; 1000 A at 50 °C; 1250 A at 50 °C; 1600 A at 50 °C; 2000 A at 50 °C; 2500 A at 50 °C; 3200 A at 50 °C

Network type

AC

Network frequency

50/60 Hz

Circuit breaker mounting mode

Fixed

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable 9 settings

[Ir] long-time protection pick-up adjustment range

0.4...1 x In

Long-time protection delay adjustment type tr

Adjustable 9 settings

[tr] long-time protection delay adjustment range

0.7…16.6 s at 7.2 x Ir; 0.7…24 s at 6 x Ir; 12.5…600 s at 1.5 x Ir

Thermal memory

20 mn

Instantaneous protection pick-up adjustment type Ii

Adjustable 9 settings

[Ii] instantaneous protection pick-up adjustment range

1.5...10 x Ir

Earth-leakage protection

Without

Zone selective interlocking ZSI

Without

Local signalling

3 LEDs (red) for electrical fault; 1 LED (red) for internal error; 1 LED (yellow) for overload

Display type

Digital display

Type of measurement

Energy meter

Communication of data

Measurement readout; Protection and alarm settings

Standards

IEC 60947-4-2

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-25…85 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.0 cm

Package 1 Width

1.0 cm

Package 1 Length

2.0 cm

Package 1 Weight

10.0 g

Country of origin

IT

Warranty (in months)

18

HS Code

8536.90

• EAN 3606482098299
• SAP 1200663734
• Code 83099206
