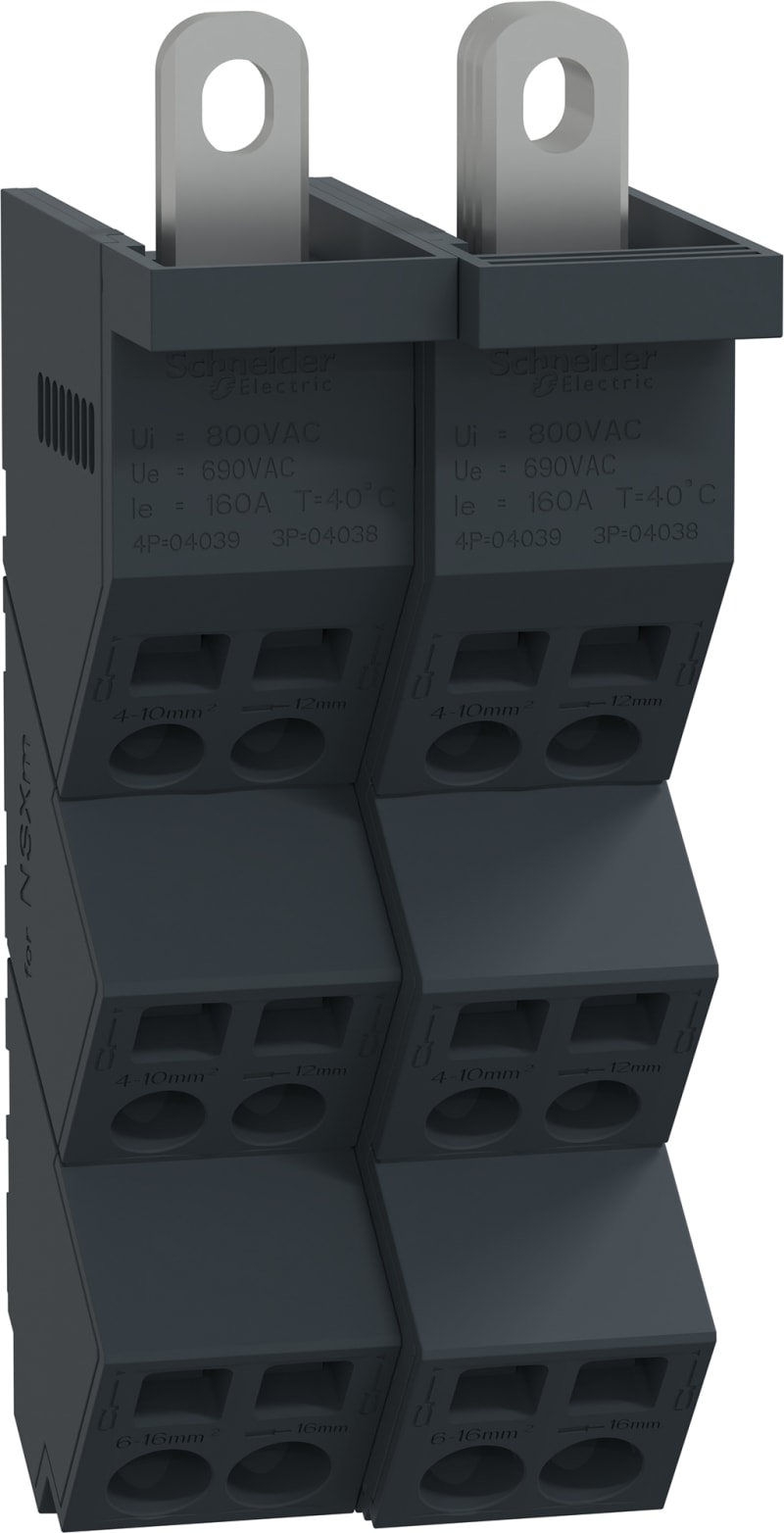

Schneider Electric LINERGY DP DISTRIBUTION BLOCK, 4P, 160 A, 24 OUTGOING TERMINALS, DIRECT CONNECTION TO NSXm LVS04039

Schneider Electric LVS04039 Tilkoblingsblokk-4P-Linergy DP-for NSXm-PrismaSeT G/P.

Manufacturer part number (MPN)

LVS04039

EAN / GTIN

3606481868114

Sales unit

pcs

Package quantity

10 pcs

Number of poles

4

Range

Linergy

Range of product

Linergy

Product or component type

Distribution block

Product name

Linergy DP

Range compatibility

PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure; PrismaSeT Prisma POLAR WHITE enclosure; PrismaSeT PrismaSeT Pack 250 enclosure; ComPact ComPact NSXm circuit breaker

Accessory / separate part category

Current distribution accessory

IP degree of protection

IPxx B

Mounting support

Prisma mounting plate; DIN rail

Installed device

ComPact: fixed NSXm without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSXm without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSXm integrated earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSXm integrated earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSXm without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSXm without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSXm integrated earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSXm integrated earth leakage protection - control: direct front rotary handle - vertical installation

Poles description

4P

[Ue] rated operational voltage

690 V AC

[Ui] rated insulation voltage

800 V AC

[Uimp] rated impulse withstand voltage

8 kV

[Ie] rated operational current

160 A at 40 °C

[Ipk] rated peak withstand current

20 kA

I²t on activation

4700000 A².s

Connections - terminals

Supply: lug (per phase) 70 mm²; Distribution: spring terminal (per phase) , 4 x 4…10 mm² (rigid or flexible) ; Distribution: spring terminal (per phase) , 2 x 6…16 mm² (rigid or flexible)

9 mm pitches

12

Height

140 mm

Width

108 mm

Depth

58 mm

Colour

Black

Pollution degree

3

Overvoltage category

III

Resistance to incandescent wire

960 °C conforming to IEC 60695-2-11

Standards

IEC 60947-7-1; IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure

Product certifications

ASTA

Ambient air temperature for operation

-25…55 °C

Number of Units in Package 1

1

Number of Units in Package 2

10

Warranty (in months)

18

Nominal current

160 A

Mounting method

DIN rail

Connection type

Without screws

Contact safe

Yes

Suitable for fine strand conductors

No

Suitable for solid conductors

No

Suitable for stranded conductors

No

Suitable for fine strand conductors without cable end sleeve

No

Suitable for extra fine-strand conductors

No

Country of origin

France

HS Code

8536.90
