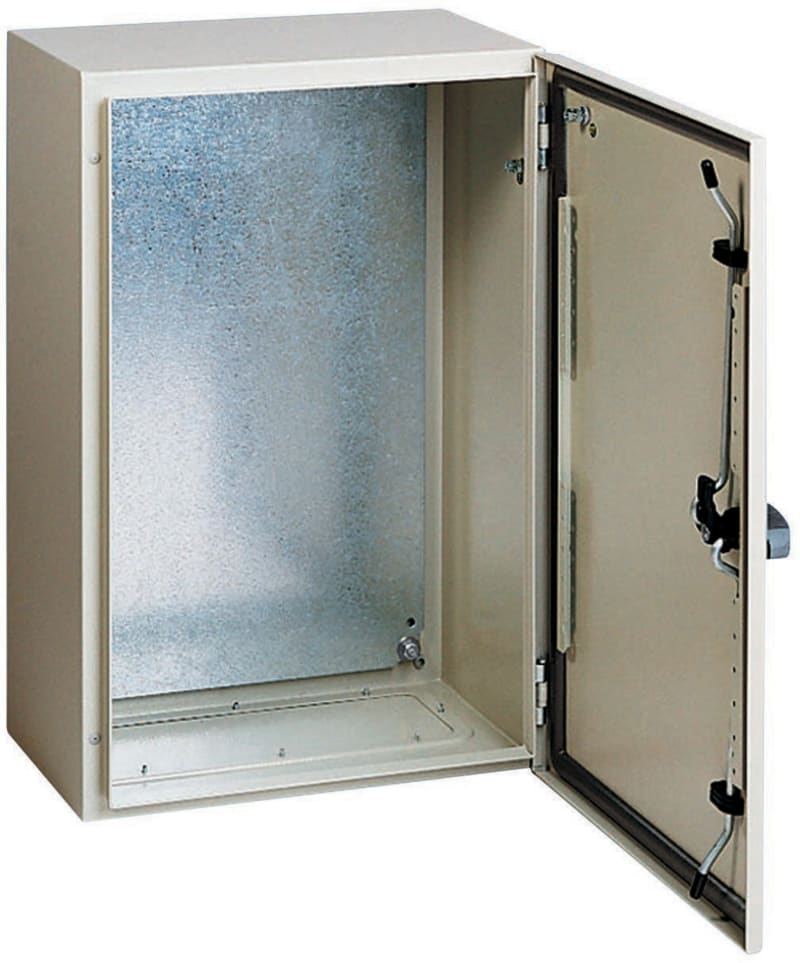

WALL-Mount Cabinet S3D without PL 4X4X2
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D4420 Wall-mount cabinet S3D Without Pl 4X4X2.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D4420
- EAN / GTIN
- 3606480159572
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 400 mm
- Enclosure nominal width
- 400 mm
- Enclosure nominal depth
- 200 mm
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door; 1 lock; 1 cable gland plate
- body type
- Gutter-shaped front rail double sheet thickness; Single piece body
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 mm double-bar lock
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Steel
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- GL; UL; DNV; BV; cUL
- Product weight
- 6.5 kg
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 24.500 cm
- Package 1 Width
- 41.500 cm
- Package 1 Length
- 42.000 cm
- Package 1 Weight
- 7.000 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 14
- Package 2 Height
- 98.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 108.500 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 400 mm
- Height
- 400 mm
- Depth
- 200 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159572
- SAP 1000089590
- Code 8883105
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Push button, Harmony XB4, metal, projecting, green, 22mm, spring return, booted, unmarked, 1NO XB4BP31
Schneider Electric
M340 Cable FTB 20 LED, SK, 3M
BMXFTW301S
Schneider Electric
Push Button Cap flush white (ZBAF133)
Schneider Electric
Schneider Electric Miniature plug-in relay, 6 A, 4 CO, 220 V DC RXM4AB1MD
Schneider Electric
Sign Frame flush with sign (ZBYF2304)
Schneider Electric
Schneider Electric Floor standing enclosure polyester vers.PLA completely sealed 1500X1000X320 IP65 NSYPLA15103G
Schneider Electric
Schneider Electric universal plug-in relay - Harmony RUM - 3 C/O - 48 V DC - 10 A - with LED RUMC32ED
Schneider Electric
Schneider Electric OptiLine 50 - floor grommet INS40550
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYS3D4420?
- NSYS3D4420 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYS3D4420.
- What is the HS code for NSYS3D4420?
- The customs tariff (HS) code for NSYS3D4420 is 9403.20.
- Who manufactures NSYS3D4420?
- NSYS3D4420 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYS3D4420?
- Yes — the NSYS3D4420 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYS3D4420?
- The minimum order quantity is 1.
- Is NSYS3D4420 available?
- Yes — NSYS3D4420 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
