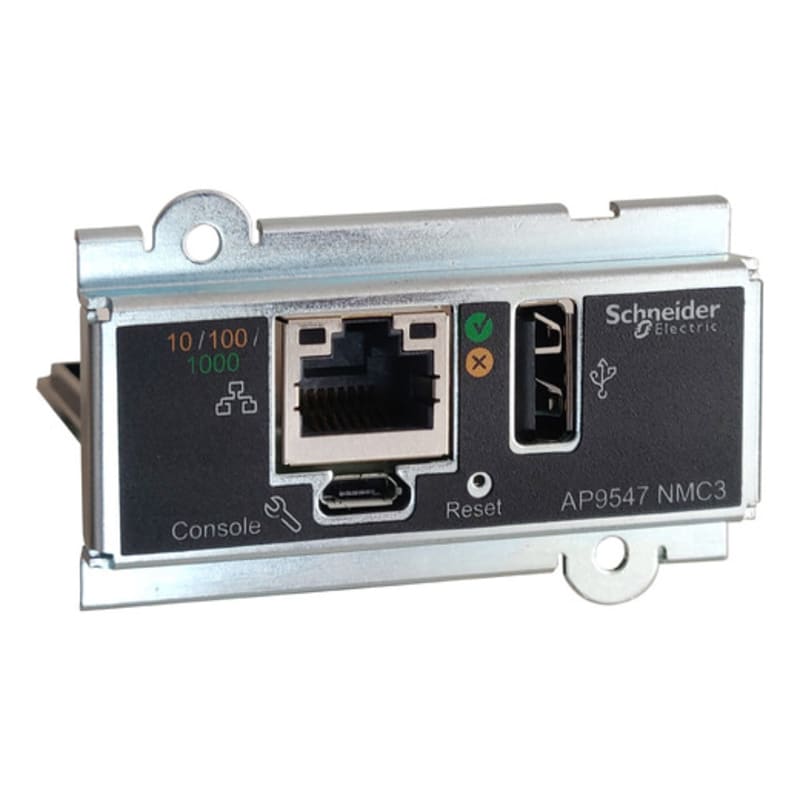

Easy UPS 3-Phase Networkskort NMC

Schneider Electric AP9547 Easy UPS 3-phase Nettverkskort NMC.

Manufacturer part number (MPN)

AP9547

EAN / GTIN

0731304422495

Sales unit

pcs

Package quantity

44 pcs

Presentation

The Network Management Card for Easy UPS 3 Series (AP9547) enables secure remote monitoring and control of one Easy UPS 3S, Easy UPS 3S Pro, Easy UPS 3M or Easy UPS 3L through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system. A 1-year Secure NMC System with IEC 62443-4-2 compliant NMC firmware updates is included with the purchase of the Network Management Card. After expiration of the 1-year included Secure NMC System, the purchase of an Advantage Plan (Plus, Prime, Ultra) or EcoCare membership with onsite maintenance visits for the UPS is required to get future NMC firmware updates.

Range of product

Network Management Cards

Range compatibility

Easy UPS 3S; Easy UPS 3M; Easy UPS 3L; Easy UPS 3S Pro; Galaxy PW 2nd generation

Product or component type

Device monitoring and management

Provided equipment

Micro-USB cable; Installation manual

Number of input phases

3

Standards

CISPR 32; VCCI class A; ICES-003; EN 55024; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-8; EN 61000-6-2; EN/IEC 62040-2

Product weight

0.05 kg

Width

5.2 cm

Height

4.4 cm

Depth

8.0 cm

Product certifications

FCC Class A; AS/NZS

Storage Relative Humidity

0…95 %

Relative humidity

0…95 %

Ambient air temperature for storage

-15…65 °C

Ambient air temperature for operation

-15…65 °C

Storage altitude

0…15240 m

Operating altitude

0...10000 ft

Communication network type

10/100/1000BASE-T

Authentication

Radius

Communication port protocol

HTTP over secure sockets; Layer (HTTPS); SSH; FTP; HTTP; SNMP; DHCP; BOOTP (Bootstrap Protocol); TCP/IP

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.000 cm

Package 1 Width

16.500 cm

Package 1 Length

24.000 cm

Package 1 Weight

314.000 g

Unit Type of Package 2

P06

Number of Units in Package 2

44

Package 2 Height

55.000 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

17.000 kg

Country of origin

PH

HS Code

8504.40

• EAN 0731304422495
• SAP 1200723200
• Code 83837007
