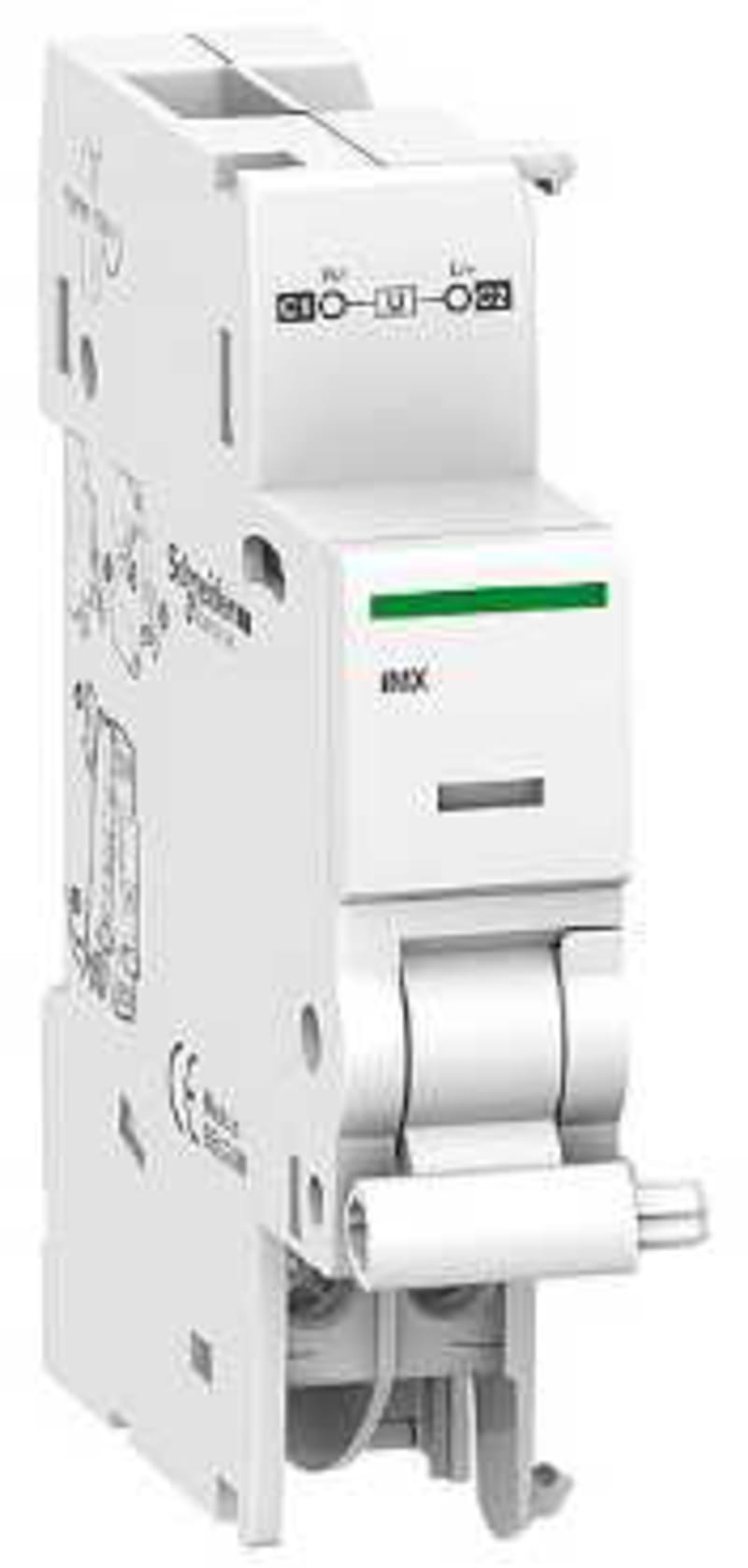

Schneider Electric Shunt trip release, ACTI9 iMX, 12V…24V AC or DC A9A26478

Schneider Electric A9A26478 Shunt-trip release iMX 12 -24V AC/DC.

Manufacturer part number (MPN)

A9A26478

EAN / GTIN

3606480087936

Sales unit

pcs

Package quantity

8 pcs

Voltage

12-24 V

range of product

Acti9

Product or component type

Shunt trip release

Device short name

iMX

[Uc] control circuit voltage

12...24 V AC 50/60 Hz; 12...24 V DC

9 mm pitches

2

Range compatibility

Acti9 iC60H RCBO; Acti9 iC60H RCBO PoN; Acti9 iC60H2 RCBO; Acti9 iC60N RCBO; Acti9 iKQE RCBO; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40

Local signalling

Action indicator

mounting mode

Clip-on

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top and bottom: YES

Width

18 mm

Colour

White

Connections - terminals

Clamp terminal - 2 cable(s) 2.5 mm² - flexible with cable end; Clamp terminal - 1 cable(s) 6 mm² - rigid; Clamp terminal - 2 cable(s) 2.5 mm² - rigid; Clamp terminal - 1 cable(s) 4 mm² - flexible

Tightening torque

1 N.m

Standards

EN/IEC 60947-1

Tropicalisation

2 conforming to EN/IEC 60947-5-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

8

Number of Units in Package 3

72

Warranty (in months)

18

Function

Shunt release (for power circuit breaker)

Voltage type

AC/DC

Rated voltage

24 V

Installed at the factory

No

Width in number of modular spacings

1

Device fitting

Miniature circuit breaker (MCB)

Additional equipment

Shunt release (for power circuit breaker)

Voltage type for actuating

AC/DC

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

63 A

Country of origin

Belgium

HS Code

8536.30

• EAN 3606480087936
• SAP 1000326876
• Code 8355775
