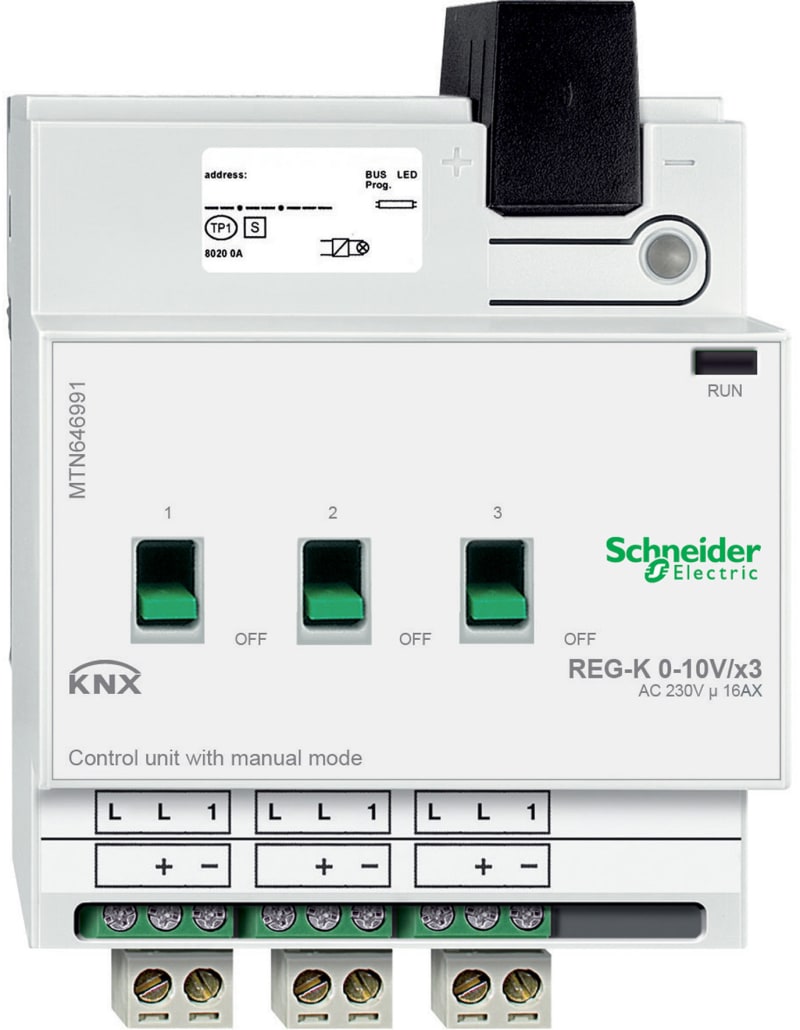

Schneider Electric Control unit 0-10 V REG-K/3-GANG with manual mode, light grey MTN646991

Schneider Electric MTN646991 KNX control unit 1-10V 3 channel. For lysregulering with grensesnitt 0-10V or 1-10V.

Manufacturer part number (MPN)

MTN646991 EAN / GTIN: 3606485100036 Sales unit: pcs Package quantity: 10 pcs Range of product: SpaceLogic KNX Product or component type: Dimming actuator Operating mode: KNX bus system; Manual Bus type: KNX Colour tint: Light grey Range: SpaceLogic KNX Power supply input current: 17.5 mA total number of 18 mm modules: 4 Mounting support: DIN rail [Ue] rated operational voltage: 100...240 V AC 50...60 Hz Input current: 0.12…100 mA Analogue output type: Voltage Analogue output range: 1...10 V Number of outputs: 3 [In] rated current: 16 A Load type: Incandescent lamps: <= 1600 W, 100 V AC; Incandescent lamps: <= 3600 W, 16 A, 200 µF, 230 V AC; Incandescent lamps: <= 3840 W, 240 V AC; Halogen lamps: <= 1086 W, 100 V AC; Halogen lamps: <= 2500 W, 230 V AC; Halogen lamps: <= 2608 W, 240 V AC; Parallel compensated fluorescent lamp: <= 1086 VA, 100 V AC; Parallel compensated fluorescent lamp: <= 2500 VA, 230 V AC; Parallel compensated fluorescent lamp: <= 2608 VA, 240 V AC; Capacitive: <= 2608 VA, 16 A, 200 µF, 100...240 V AC Main colour tint: Light grey IP degree of protection: IP20 Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 8.200 cm Package 1 Width: 12.600 cm Package 1 Length: 15.800 cm Package 1 Weight: 340.000 g Unit Type of Package 2: S03 Number of Units in Package 2: 10 Package 2 Height: 30.000 cm Package 2 Width: 30.000 cm Package 2 Length: 40.000 cm Package 2 Weight: 3.580 kg Country of origin: LV Warranty (in months): 18 Other bus systems: None Width in number of modular spacings: 4 Max. switching power: 3600 W Max. control current: 100 mA Degree of protection (IP): IP20 Mounting method: DRA (DIN-rail adaptor) Max. switching current (resistive load): 16 A

HS Code

8504.40

• EAN 3606485100036
• SAP 1000325172
• Code 8725094
