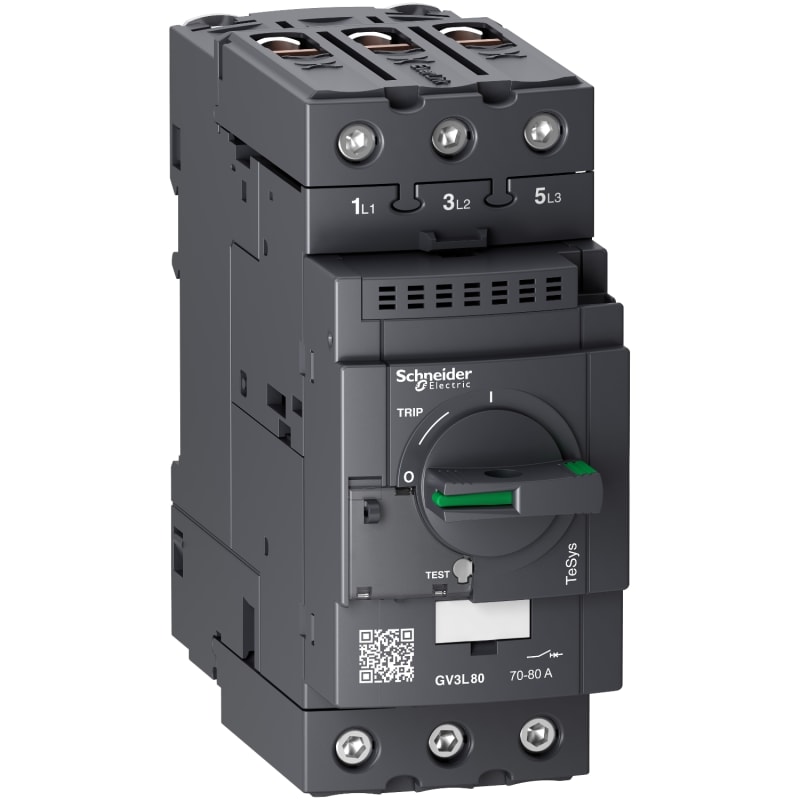

Schneider Electric TeSys GV3L magnetic motor circuit breaker 80A EverLink GV3L80

Schneider Electric GV3L80 GV3L Motor Motor protection circuit breaker magnetic 80A EverLink.

Manufacturer part number (MPN)

GV3L80

EAN / GTIN

3606481304575

HS code

8536.90

Sales unit

pcs

Package quantity

120 pcs

Rated current

80 A

Range

TeSys Deca

Product name

TeSys GV3

Product or component type

Motor circuit breaker

Device short name

GV3L

Device application

Motor protection

Trip unit technology

Magnetic

Poles description

3P

Network type

AC

Utilisation category

Category A conforming to IEC 60947-2; AC-3 conforming to IEC 60947-4-1

Network frequency

50/60 Hz conforming to IEC 60947-2

Motor power kW

45 kW at 400/415 V AC 50/60 Hz maximum peak current 750 A; 45 kW at 500 V AC 50/60 Hz maximum peak current 750 A; 55 kW at 690 V AC 50/60 Hz maximum peak current 750 A

Breaking capacity

65 kA Icu at 230/240 V AC 50/60 Hz; 50 kA Icu at 400/415 V AC 50/60 Hz; 50 kA Icu at 440 V AC 50/60 Hz; 12 kA Icu at 500 V AC 50/60 Hz; 6 kA Icu at 690 V AC 50/60 Hz

[Ics] rated service short-circuit breaking capacity

100 % at 230/240 V AC 50/60 Hz; 60 % at 400/415 V AC 50/60 Hz; 60 % at 440 V AC 50/60 Hz; 50 % at 500 V AC 50/60 Hz; 50 % at 690 V AC 50/60 Hz

Control type

Rotary handle

[In] rated current

80 A

Magnetic tripping current

1120 A

[Ith] conventional free air thermal current

80 A conforming to IEC 60947-2

[Ue] rated operational voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Ui] rated insulation voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-2

Suitability for isolation

Yes conforming to IEC 60947-1

Power dissipation per pole

8 W

Mechanical durability

50000 cycles

Electrical durability

20000 cycles for AC-3 at 415 V In

Rated duty

Uninterrupted conforming to IEC 60947-4-1

Tightening torque

5 N.m - on screw clamp terminal

Fixing mode

35 mm symmetrical DIN rail: clipped; Panel: screwed (with 3 x M4 screws)

Mounting position

Horizontal; Vertical

Width

55 mm

Height

132 mm

Depth

136 mm

Product weight

0.96 kg

Colour

Dark grey

Standards

EN/IEC 60947-2; EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-1:Clause 30.2; IEC/EN 60335-2-40:Annex JJ

Product certifications

CCC; CSA; EAC; LROS (Lloyds register of shipping); BV; ABS; DNV-GL; UKCA

IP degree of protection

IP20 conforming to IEC 60529

Climatic withstand

conforming to IACS E10

Ambient air temperature for storage

-40…80 °C

Fire resistance

960 °C conforming to IEC 60695-2-11

Ambient air temperature for operation

-20…60 °C

Mechanical robustness

Shocks: 5 Gn for 11 ms contactor open; Shocks: 30 Gn for 11 ms contactor closed; Vibrations: 4 Gn, 5...300 Hz

Operating altitude

3000 m

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481304575
• SAP 1200219930
• Code 82141428
