Schneider Electric NSYS3D6525P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 600X500X250MM, IP66, IK10
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYS3D6525P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 600X500X250MM, IP66, IK10 is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Dimensions: 60×50×25; Range: PanelSeT; Product name: PanelSeT S3D; Application: Multi-purpose; Enclosure nominal height: 600 mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D6525P
- EAN / GTIN
- 3606480159268
- Sales unit
- pcs
- Dimensions
- 60×50×25
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 600 mm
- Enclosure nominal width
- 500 mm
- Enclosure nominal depth
- 250 mm
- Door type
- Plain
- Mounting plate description
- Plain
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 mounting plate; 1 door with lock; 1 cable gland plate
- body type
- Gutter-shaped front rail double sheet thickness; Single piece body
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws; Mounting plate by fixing element
- Material
- Enclosure: steel; Mounting plate: galvanised steel
- Surface finish
- Enclosure: epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- UL; GL; cUL; BV; DNV
- Product weight
- 17 kg
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 30.000 cm
- Package 1 Width
- 52.000 cm
- Package 1 Length
- 62.000 cm
- Package 1 Weight
- 17.000 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 18
- Package 2 Height
- 190.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 319.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 500 mm
- Height
- 600 mm
- Depth
- 250 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159268
- SAP 1000089620
- Code 8581957
Product Documentation
More from Schneider Electric
Schneider Electric
WALL-Mount Cabinet WITH PLATE. 10X12X3 2D
NSYS3D101230DP
Schneider Electric
Schneider Electric TeSys Vario enclosed, main switch disconnector, 63A, IP65 VBF4GE
Schneider Electric

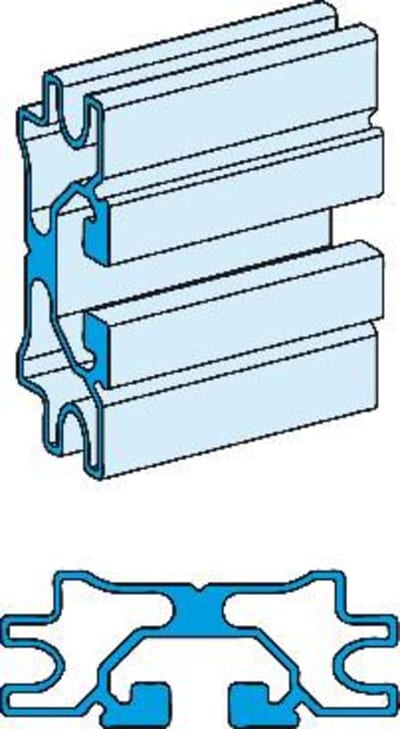

Busbar Horizontal -Linergy-LGYE 630
LVS04560
Schneider Electric

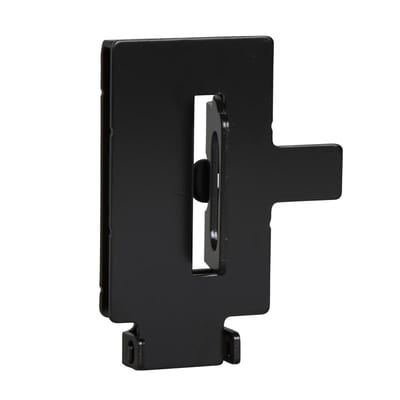

Schneider Electric ComPacT NSX Toggle Padlocking Device
LV429371T
Schneider Electric

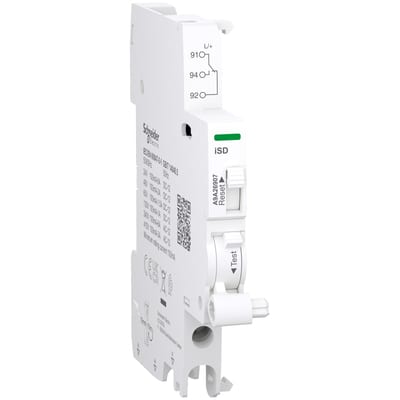

Schneider Electric Auxiliary contact, ACTI9 A9A, iSD, 1 C/O, 100MA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection A9A26907
Schneider Electric

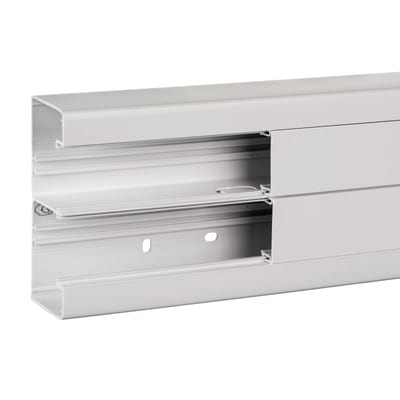

Schneider Electric ISM10300P OptiLine 45 - installation trunking - 140X55 mm - PVC - polar white - 2000 mm
Schneider Electric

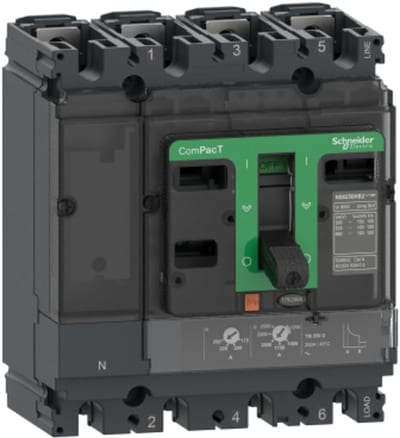

Schneider Electric Circuit breaker, ComPacT NSX100N, 50KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 63A C10N4TM063
Schneider Electric

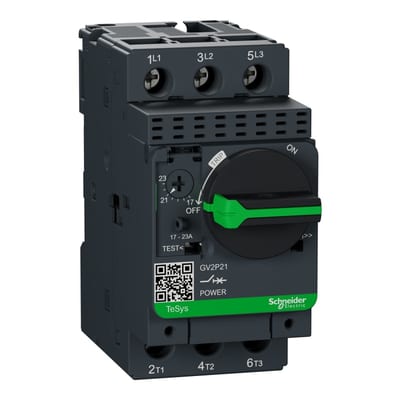

Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 17-23 A, thermal magnetic, screw clamp terminals GV2P21
