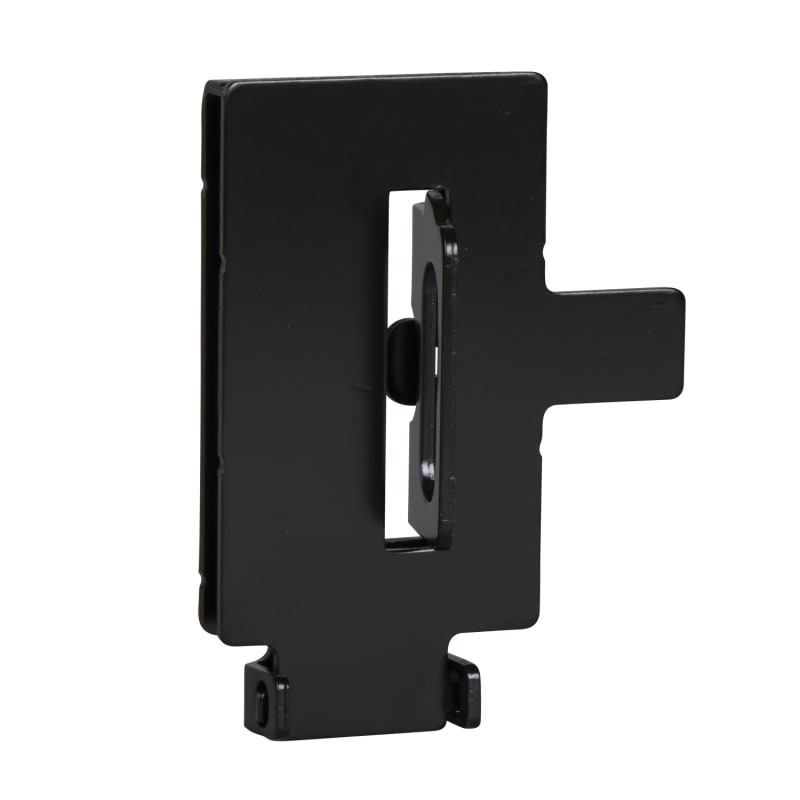

Schneider Electric ComPacT NSX Toggle Padlocking Device

Schneider Electric LV429371T is a fixed padlocking device for ComPacT NSX100, NSX160 and NSX250 circuit breakers, including the DC variants of these ranges. The accessory allows the toggle to be locked in either the OFF or ON position using up to three padlocks fitted from the front. It is intended for lockout/tagout procedures during maintenance and for authorised on-state locking where required.

Manufacturer part number (MPN)

LV429371T

EAN / GTIN

3606481094537

Sales unit

pcs

Package quantity

80 pcs

Device short name

locking for 1 to 3 padlocks

Product or component type

Padlocking device

Range compatibility

ComPacT ComPacT NSX100; ComPacT ComPacT NSX160; ComPacT ComPacT NSX250; ComPacT Compact NSX100 DC; ComPacT Compact NSX160 DC; ComPacT Compact NSX250 DC

mounting mode

Fixed

Keylock destination

Toggle

Key locking position

In front

Locking options description

Fixed; Locks On or Off; Without keylocks

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.000 cm

Package 1 Width

10.000 cm

Package 1 Length

16.000 cm

Package 1 Weight

57.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

80

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

5.040 kg

Country of origin

FR

Warranty (in months)

18

Sealable

No

Switching-off blocking

Yes

Switching-on blocking

Yes

HS Code

8501.20

• EAN 3606481094537
• SAP 1200534625
• Code 82688257
