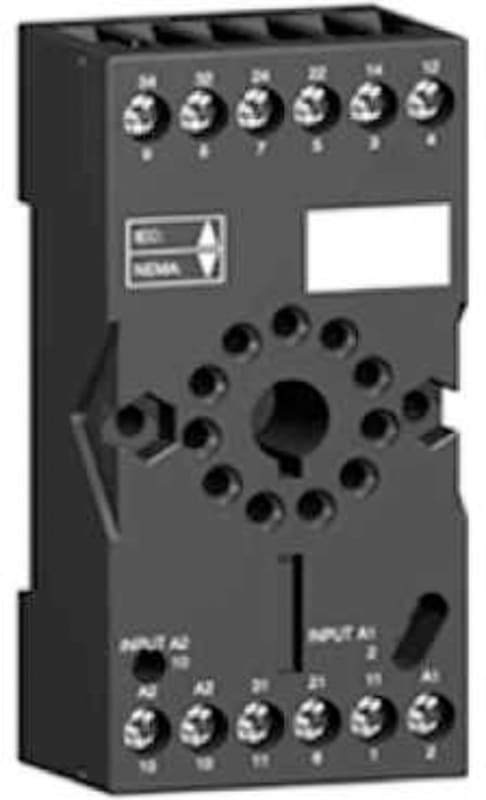

Schneider Electric RUZC3M Socket, mixed contact, 10 A, relay type RUMC3, screw connector, 250 V AC

Schneider Electric RUZC3M Socket, mixed contact, 10 A, relay type RUMC3, screw connector, 250 V AC is listed under Control & Automation / Relay Modules. Sales unit: pcs; Package quantity: 10 pcs; Device short name: RUZ; Product or component type: Socket; [Ue] rated operational voltage: < 250 V; Contacts type and composition: 3 C/O.

Manufacturer part number (MPN)

RUZC3M

EAN / GTIN

3389119403207

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony Electromechanical Relays; Harmony Timer Relays

Device short name

RUZ

Product or component type

Socket

Product compatibility

Plug-in relay RUM with 3 C/O contact; Plug-in relay RE48A with 2 C/O contact

[Ith] conventional free air thermal current

10 A

[Ue] rated operational voltage

< 250 V

Contacts type and composition

3 C/O

Connections - terminals

Connector, 1 x 0.25...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end; Connector, 2 x 0.25...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end; Connector, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Connector, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end

Shape of pin

Cylindrical

Tightening torque

< 1 N.m for M3.5 screw(s)

Fixing mode

By screw (panel); Clip-on (35 mm symmetrical DIN rail)

Contact terminal arrangement

Mixed

[Uimp] rated impulse withstand voltage

4 kV

Overvoltage category

III

Pollution degree

3

Sale per indivisible quantity

10

Width

38 mm

Product weight

0.054 kg

IP degree of protection

IP20 conforming to IEC 60529

Standards

IEC 61984

Product certifications

CSA; UL

Marking

CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…55 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.700 cm

Package 1 Width

3.800 cm

Package 1 Length

7.800 cm

Package 1 Weight

57.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

8.300 cm

Package 2 Width

8.400 cm

Package 2 Length

14.600 cm

Package 2 Weight

618.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

200

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

12.600 kg

Country of origin

CN

Warranty (in months)

18

Mounting method

DIN rail (top hat rail) 35 mm

Height

75 mm

Depth

27 mm

With detachable clamps

No

Function extension possible

Yes

Type of electric connection

Screw connection

Number of pins

11

HS Code

8536.69
