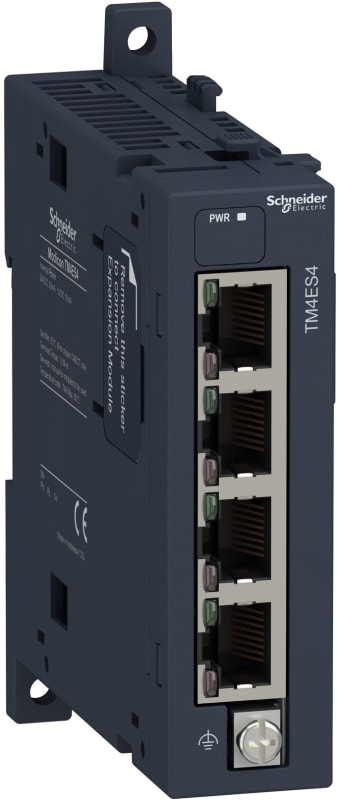

Schneider Electric module network TM4 4 Ethernet switchs TM4ES4

Schneider Electric TM4ES4 Accessories Modicon PLS - Communication Module - Ethernet switch.

Manufacturer part number (MPN)

TM4ES4

EAN / GTIN

3606480611216

HS code

8536.90

Sales unit

pcs

Package quantity

20 pcs

Product or component type

Ethernet unmanaged switch

Range compatibility

Modicon M251; Modicon M241

Product compatibility

Modicon M241 logic controller; Modicon M251 logic controller

Current consumption

360 mA at 5 V DC for communication bus

Integrated connection type

Ethernet: 4 RJ45 connector

Transmission rate

10/100 Mbit/s

Port Ethernet

10BASE-T/100BASE-TX - 4 port(s) copper cable

Web services

Web server

Communication service

Modbus TCP server; Modbus TCP slave device; FTP; NGVL; Monitoring; IEC VAR ACCESS; Programming; SNMP; Modbus TCP client; Downloading; Updating firmware; Ethernet/IP slave device; DHCP client

Maximum number of connections

8 Modbus server; 16 Ethernet/IP device

Communication port protocol

Ethernet IP/Modbus TCP; TCP (Transmission Control Protocol); UDP (User Datagram Protocol); SNMP

Redundancy

No

Local signalling

1 LED (green) for PWR; 1 LED per channel (green/yellow) for Ethernet link; 1 LED per channel (green) for Ethernet port activity

Electrical connection

RJ45 4 connectors for connecting Ethernet network; Screw connector terminal for connecting the functional ground

Marking

CE

Surge withstand

1 kV power lines (DC) common mode conforming to IEC 61000-4-5; 2 kV power lines (AC) common mode conforming to IEC 61000-4-5; 2 kV relay output common mode conforming to IEC 61000-4-5; 1 kV I/O common mode conforming to IEC 61000-4-5; 1 kV shielded cable common mode conforming to IEC 61000-4-5; 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5; 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5; 1 kV relay output differential mode conforming to IEC 61000-4-5; 0.5 kV I/O differential mode conforming to IEC 61000-4-5

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit

Width

25 mm

Height

90 mm

Depth

90 mm

Product weight

0.125 kg

Standards

UL 508; IEC 61131-2

Product certifications

cULus; C-Tick

Resistance to electrostatic discharge

8 kV in air conforming to IEC 61000-4-2; 4 kV on contact conforming to IEC 61000-4-2; 8 kV in air conforming to Marine specification (LR, ABS, DNV, GL); 6 kV on contact conforming to Marine specification (LR, ABS, DNV, GL)

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3; 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3; 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3

Resistance to fast transients

2 kV (power lines) conforming to IEC 61000-4-4; 2 kV (relay output) conforming to IEC 61000-4-4; 1.5 kV (I/O) conforming to IEC 61000-4-4; 1 kV (Ethernet line) conforming to IEC 61000-4-4; 1 kV (serial link) conforming to IEC 61000-4-4

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-6; 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL); 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

Conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15…0.5 MHz conforming to IEC 55011; Conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5…300 MHz conforming to IEC 55011; Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to IEC 55011; Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to IEC 55011; Radiated emissions - test level: 40 dBμV/m QP class A at 30…230 MHz conforming to IEC 55011; Radiated emissions - test level: 60...54 dBμV/m QP at 30…100 MHz conforming to Marine specification (LR, ABS, DNV, GL); Radiated emissions - test level: 24 dBμV/m QP at 156…165 MHz conforming to Marine specification (LR, ABS, DNV, GL); Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to IEC 55011; Radiated emissions - test level: 47 dBμV/m QP class A at 230…1000 MHz conforming to IEC 55011; Radiated emissions - test level: 80...50 dμV/m QP at 150…30000 kHz conforming to Marine specification (LR, ABS, DNV, GL); Radiated emissions - test level: 54 dBμV/m QP at 100…2000 MHz conforming to Marine specification (LR, ABS, DNV, GL)

Ambient air temperature for operation

-10…55 °C horizontal installation; -10…50 °C vertical installation

Ambient air temperature for storage

-25…70 °C

Relative humidity

10…95 %, without condensation (in operation); 10…95 %, without condensation (in storage)

IP degree of protection

IP20 with protective cover in place

Pollution degree

2

Operating altitude

0...2000 m

Storage altitude

0…3000 m

Vibration resistance

1 mm at 5…13.2 Hz on symmetrical rail; 3 gn at 8.7…150 Hz on symmetrical rail; 1 mm at 5…13.2 Hz on panel mounting; 0.7 gn at 13.2…100 Hz on panel mounting

Shock resistance

15 gn for 11 ms

Number of Units in Package 1

1

Number of Units in Package 2

20

Number of Units in Package 3

160

Country of origin

ID

Warranty (in months)

18

HS Code

8536.90
