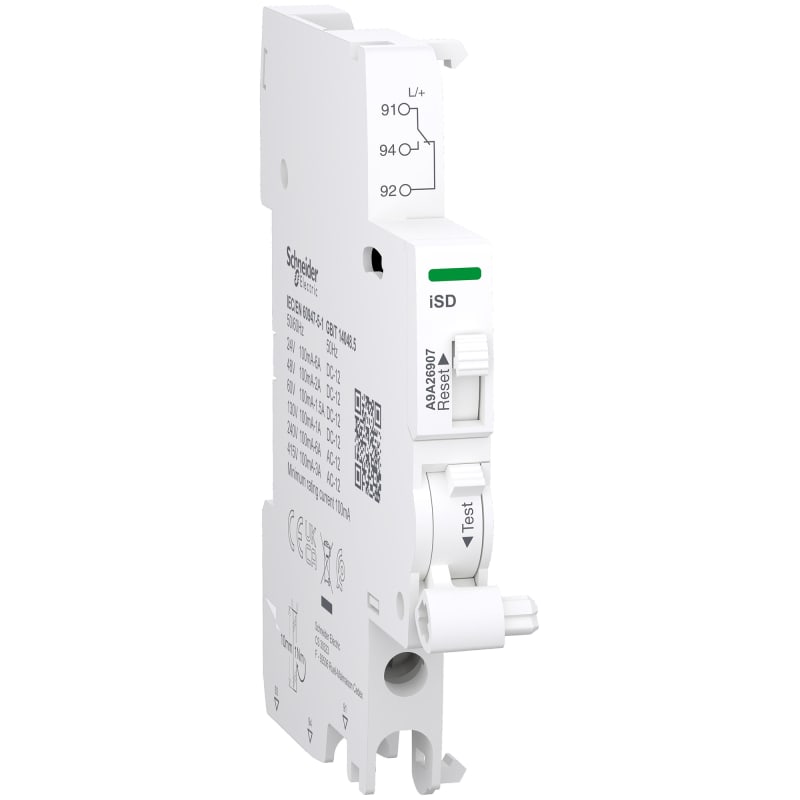

Schneider Electric Auxiliary contact, ACTI9 A9A, iSD, 1 C/O, 100MA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection A9A26907

Schneider Electric A9A26907 Acti9 fault signal contact — 1 changeover contact — standard — not for double terminal.

Manufacturer part number (MPN)

A9A26907

EAN / GTIN

3606486115183

Sales unit

pcs

Package quantity

12 pcs

Rated current

6 A

range of product

Acti9

Product or component type

Fault contact

Device short name

iSD

Signal contacts composition

1 C/O

[In] rated current

0.1…6 A at 24...240 V, AC 50/60 Hz; 0.1…3 A at 415 V, AC 50/60 Hz; 0.1…6 A at 24 V, DC; 0.1…2 A at 48 V, DC; 0.1…1.5 A at 60 V, DC; 0.1…1 A at 130 V, DC

9 mm pitches

1

Standards

EN/IEC 60947-5-1; GB/T 14048.5

Product certifications

CE; UKCA

Quality labels

EAC; CCC; CMIM

Range compatibility

Acti9 iC60H RCBO; Acti9 iC60H RCBO PoN; Acti9 iC60H2 RCBO; Acti9 iC60N RCBO; Acti9 iKQE RCBO; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40

[Ui] rated insulation voltage

500 V

[Uimp] rated impulse withstand voltage

4 kV

Local signalling

Mechanical indicator

mounting mode

Clip-on

Mounting location

Left side of circuit-breaker

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top: YES

Height

86 mm

Width:

HS Code

8536.50

• EAN 3606486115183
• SAP 1200662193
• Code 83095117
