WALL-Mount Cabinet WITH PLATE. 10X12X3 2D
Pricing
Request a quote
We reply within 24 hours
Product Description

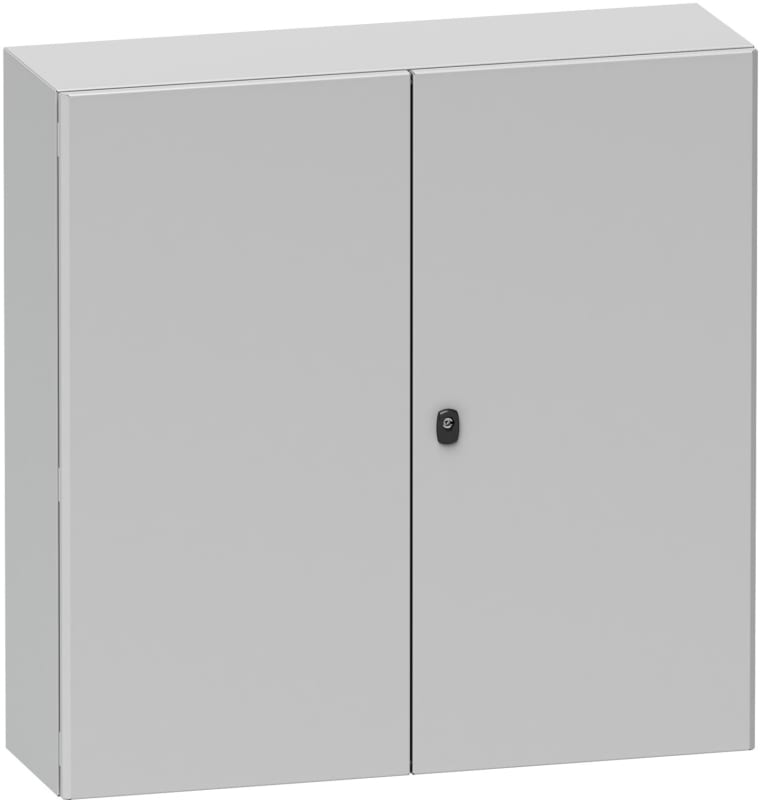

Schneider Electric NSYS3D101230DP — Wall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 1000x1200x300mm, IP55, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D101230DP
- EAN / GTIN
- 3606480160271
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 1000 mm
- Enclosure nominal width
- 1200 mm
- Enclosure nominal depth
- 300 mm
- Door type
- Plain
- Mounting plate description
- Plain
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 2 cable gland plate; 2 door with lock; 1 mounting plate
- body type
- Gutter-shaped front rail double sheet thickness; Single piece body
- Number of doors
- Front face: 2 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws; Mounting plate by fixing element
- Material
- Enclosure: steel; Mounting plate: galvanised steel
- Surface finish
- Enclosure: epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- DNV; cUL; GL; BV; UL
- Product weight
- 75 kg
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP55 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 35.500 cm
- Package 1 Width
- 102.000 cm
- Package 1 Length
- 123.000 cm
- Package 1 Weight
- 72.800 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 2
- Package 2 Height
- 116.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 122.000 cm
- Package 2 Weight
- 158.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 1200 mm
- Height
- 1000 mm
- Depth
- 300 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480160271
- SAP 1000089537
- Code 8581876
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric TeSys Vario enclosed, main switch disconnector, 63A, IP65 VBF4GE
Schneider Electric
Busbar Horizontal -Linergy-LGYE 630
LVS04560
Schneider Electric
Schneider Electric ComPacT NSX Toggle Padlocking Device
LV429371T
Schneider Electric
Schneider Electric Auxiliary contact, ACTI9 A9A, iSD, 1 C/O, 100MA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection A9A26907
Schneider Electric
Schneider Electric ISM10300P OptiLine 45 - installation trunking - 140X55 mm - PVC - polar white - 2000 mm
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100N, 50KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 63A C10N4TM063
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 17-23 A, thermal magnetic, screw clamp terminals GV2P21
Schneider Electric

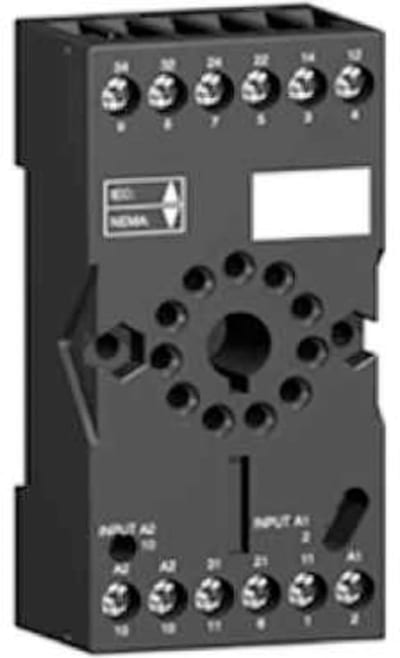

Schneider Electric RUZC3M Socket, mixed contact, 10 A, relay type RUMC3, screw connector, 250 V AC
