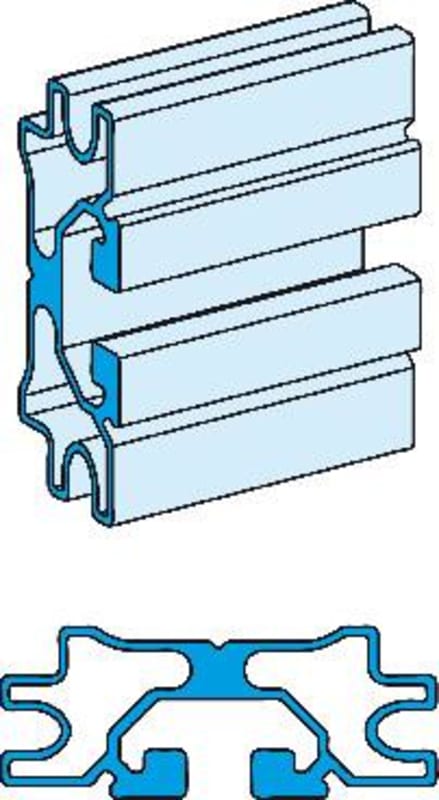

Busbar Horizontal -Linergy-LGYE 630
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04560 — LINERGY LGYE PROFILE 630A LENGTH 2000MM.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04560
- EAN / GTIN
- 3606481870544
- Sales unit
- pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Profile busbar
- Product name
- Linergy LGYE
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Busbar accessory
- Busbar description
- Linergy
- Quantity per set
- Set of 1
- Installation direction
- Horizontal, operating position: top; Horizontal, operating position: bottom
- installation description
- Cubicle - width 650 mm; Cubicle - width 650 + 150 mm; Cubicle duct - width 300 mm; Cubicle duct - width 400 mm
- [Ui] rated insulation voltage
- 1000 V
- [Uimp] rated impulse withstand voltage
- 12 kV (degree of pollution: 3)
- [Ie] rated operational current
- 630 A
- [Icw] rated short-time withstand current
- 30 kA (1 s) for 2 supports (horizontal position)
- Permissible current
- 630 A at 35 °C: <= IP31; 530 A at 35 °C: IP31
- Length
- 2000 mm
- Width
- 60 mm
- Depth
- 23 mm
- Product weight
- 2.11 kg
- Colour
- Natural
- Type of busbar connection
- Single t-slot
- Connection pitch
- Free connection position
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.2 cm
- Package 1 Width
- 6.6 cm
- Package 1 Length
- 210.0 cm
- Package 1 Weight
- 2.347 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 48
- Package 2 Height
- 23.5 cm
- Package 2 Width
- 120.0 cm
- Package 2 Length
- 202.0 cm
- Package 2 Weight
- 132.0 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Profile
- Height
- 23 mm
- Flexible
- No
- Surface protection
- Untreated
- Rated current In
- 630 A
Standards & Compliance
- HS Code
- 7407.29
Cross References
- EAN 3606481870544
- SAP 1200546975
- Code 82879942
