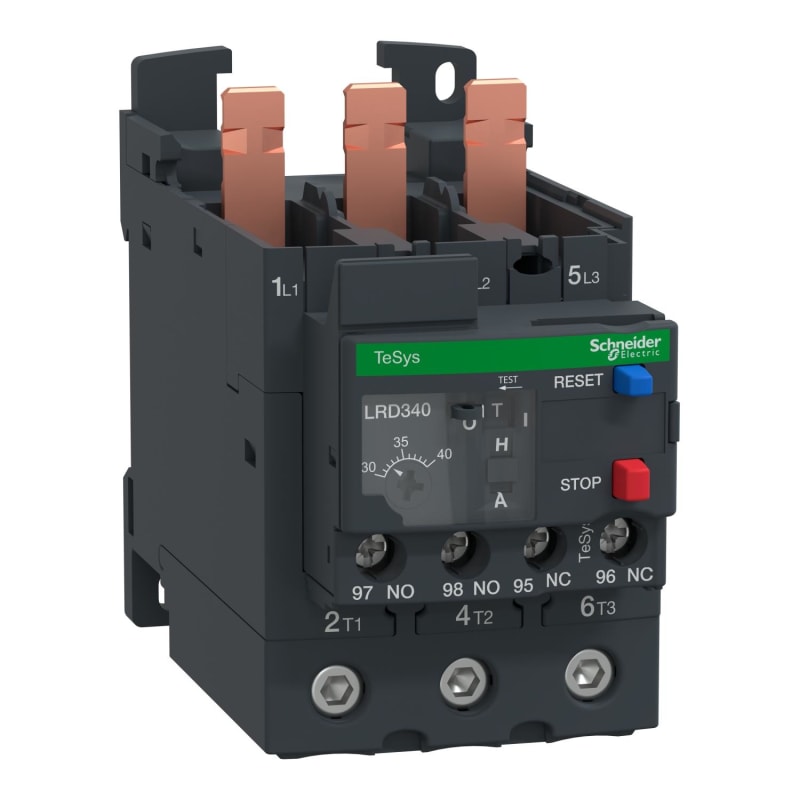

Schneider Electric Thermal overload relay, TeSys Deca, 690VAC, 30 to 40A, 1NO+1NC, class 10A, EverLink BTR screw LRD340

Schneider Electric LRD340 — TeSys thermal overload relay. Bimetallic thermal overload relay for motor protection. Thermal protection, series D. Up to 150 A (0.06 - 75 kW) for both AC and DC motor controls. Integrated manual/automatic reset.

Manufacturer part number (MPN)

LRD340

EAN / GTIN

3389119215497

HS code

8536.90

Sales unit

pcs

Package quantity

13 pcs

Setting range

30-40 A

Range

TeSys; TeSys Deca

Product name

TeSys LRD; TeSys Deca

Product or component type

Differential thermal overload relay

Device short name

LRD

Relay application

Motor protection

Product compatibility

LC1D65A; LC1D50A; LC1D40A

Network type

AC; DC

Thermal overload class

Class 10A conforming to IEC 60947-4-1

Thermal protection adjustment range

30…40 A

[Ui] rated insulation voltage

Power circuit: 600 V conforming to CSA; Power circuit: 600 V conforming to UL; Power circuit: 690 V conforming to IEC 60947-4-1

Network frequency

0...400 Hz

Mounting support

Plate, with specific accessories; Rail, with specific accessories; Under contactor

Tripping threshold

1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

Auxiliary contact composition

1 NO + 1 NC

[Ith] conventional free air thermal current

5 A for signalling circuit

Permissible current

0.9

HS Code

8536.90

• EAN 3389119215497
• SAP 1000060801
• Code 8918786
