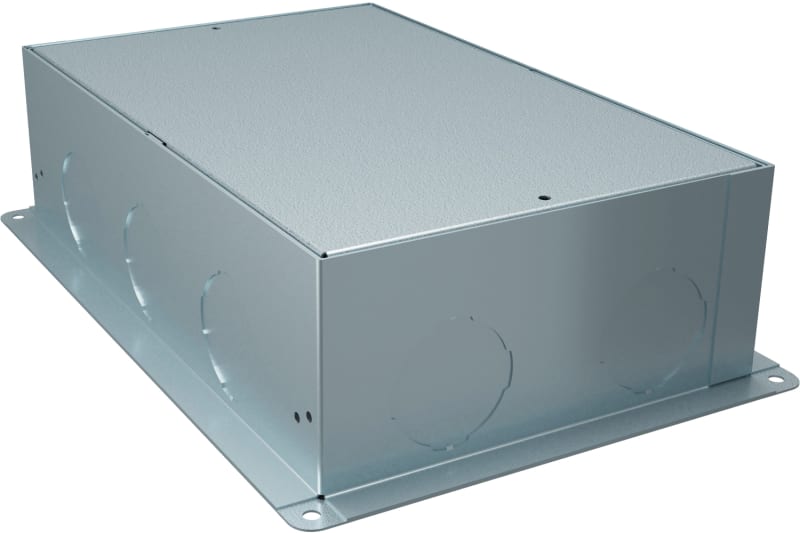

Schneider Electric INS52003 Unica System+ In-Screed Floor Box XL
Pricing
Request a quote
We reply within 24 hours
Product Description
Metal in-screed floor box from the Unica System+ range for casting into concrete floors of at least 100 mm depth. Nominal aperture 376 mm with a levelling range of 100 mm and duct heights of 20-50 mm, supporting overhead-closed subfloor duct connections. Rectangular cover model decouples from the base unit to simplify finishing works.
Technical Specifications
- Manufacturer part number (MPN)
- INS52003
- EAN / GTIN
- 3606490150354
- Sales unit
- pcs
- EAN
- 3606481457387
- Nominal dimension
- 376 mm
- Bottom plate
- Yes
- Suitable for placing of sealing
- No
- Mounting cover insertion
- No
- Levelling range
- 100 mm
- Duct height
- 20–50 mm
- Suitable for subfloor duct countersunk (closed)
- No
- Suitable for subfloor duct overhead closed
- Yes
- Decoupling possibility cover from base unit
- Yes
- Duct width
- 20–50 mm
- Min. height finishing layer
- 0 mm
- Material side wall
- Steel
- Cover model
- Rectangular
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606490150354
- SAP 1200478149
- Code 82564118
Product Documentation
