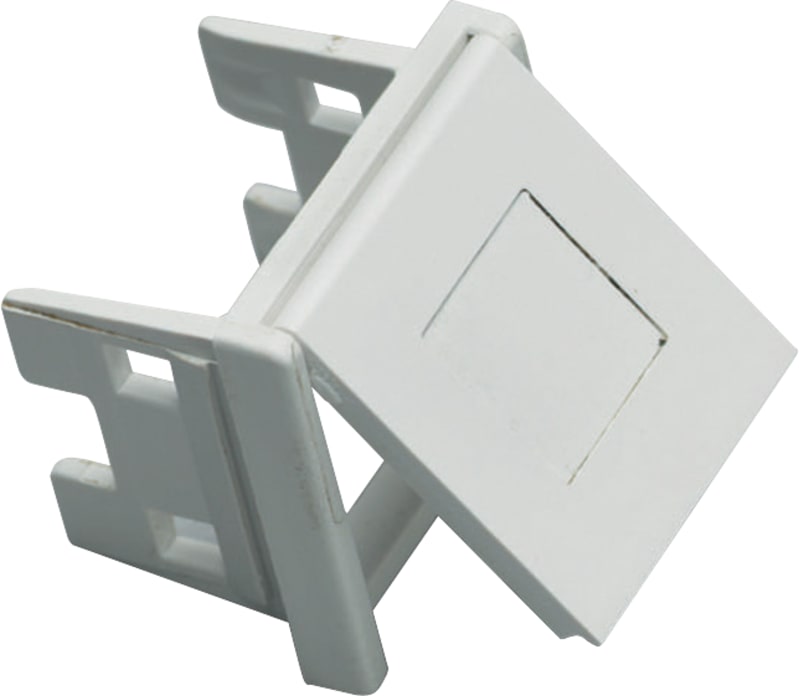

Mounting frame S-One with dust cover, white
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 306580024 Mounting Frame for S-One connector, for mounting in centre plates in CYB, Robust, Renova, Actassi mounting box, etc., white.
Technical Specifications
- Manufacturer part number (MPN)
- 306580024
- EAN / GTIN
- 5703302093101
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Colour
- White
- Width
- 21 mm
- Halogen free
- Yes
- Height
- 21 mm
- Depth
- 15 mm
- Number of units
- 1
- With hinged lid
- Yes
- Surface protection
- Untreated
- Built-in height
- 18.5 mm
- Built-in width
- 17.5 mm
- Label space/information surface
- Yes
- Material quality
- Thermoplastic
- Material
- Plastic
- Type of fastening
- Engage (snap)
- Mounting direction
- Horizontal and vertical
- RAL-number (similar)
- 9003
- Suitable for subfloor installation duct box
- No
- Transparent
- No
- Surface finishing
- Glossy
- Suitable for wall duct
- No
- Suitable for built-in installation
- No
- Number of units horizontal
- 1
- Number of units vertical
- 1
- With mounting grid
- No
- Number of switch inserts
- 1
- Anti-bacterial treatment
- No
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 5703302093101
- SAP 1000000605
- Code 815232
