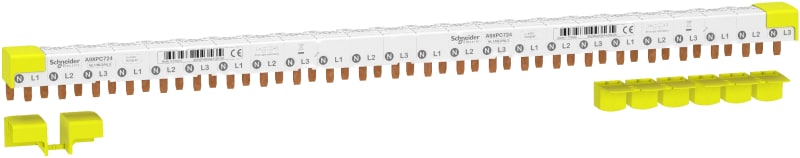

Schneider Electric comb busbar, ACTI9, 3P+N balanced, 9 mm pitch, 24 modules, 80 A A9XPC724

Schneider Electric A9XPC724 Acti 9 busbar 3PN 24 mod iC40.

Manufacturer part number (MPN)

A9XPC724

EAN / GTIN

3606489443535

Sales unit

pcs

Package quantity

8 pcs

Modular width

24 modules

Range

Acti9

Product or component type

Comb busbar

mounting mode

Horizontal

Accessory / separate part category

Connection accessory

Lines description

3L + N

Length in 18 mm modules

24

Standards

EN/IEC 61439-1

Number of ways

8 ways N + 3 L (balanced)

Distribution type

N L1 N L2 N L3

Poles configuration for 1 way

1 x 3P + N; 1 x 3P; 3 x 1P + N

Connection pitch

9 mm between phase and neutral; 18 mm between phases

Connector type

Tooth

Distance between way

54 mm

Marking

N L1 N L2 N L3

Insulation

Insulated

Device presentation

Cuttable

Provided equipment

end-pieces; tooth covers

[Ie] rated operational current

80 A at 40 °C

[Ue] rated operational voltage

230 V AC Ph/N; 400 V AC Ph/Ph

[Ui] rated insulation voltage

440 V AC conforming to IEC 61439-1

[Uimp] rated impulse withstand voltage

4 kV

Mounting location

Top on tunnel type terminals

9 mm pitches

48

Height

32 mm

Width

434 mm

Depth

28 mm

Product weight

301 g

Colour

White (RAL 9003)

Range compatibility

Acti9 Acti9 C40; Acti9 Acti9 C40 Vigi; Acti9 Acti9 iDPN; Acti9 Acti9 iDPN Vigi; Multi9 Multi9 N40; Multi9 Multi9 N40 Vigi; Acti9 Acti9 iC40; Acti9 Acti9 iCV40; Acti9 Vigi iCG40; Acti9 Acti9 iID40

Fire resistance

960 °C ( 30 s ) conforming to IEC 60695-2-1

Pollution degree

3 conforming to EN/IEC 60439-1

IP degree of protection

IP20 with end-pieces and tooth covers

Number of Units in Package 1

1

Number of Units in Package 2

8

Number of Units in Package 3

392

Warranty (in months)

18

Insulated

Yes

Number of phases

3

Rated permanent current Iu

80 A

Number of poles

4

Length

491 mm

Width in number of modular spacings

24

Rated surge voltage

4 kV

Type of electric connection

Pin

Suitable for devices with auxiliary switch

No

Suitable for devices with N-conductor

Yes

Suitable for number of devices

8

Max. rated operation voltage Ue

400 V

Module width

9 mm

Can be cut to size

Yes

Country of origin

Poland

HS Code

8536.90
