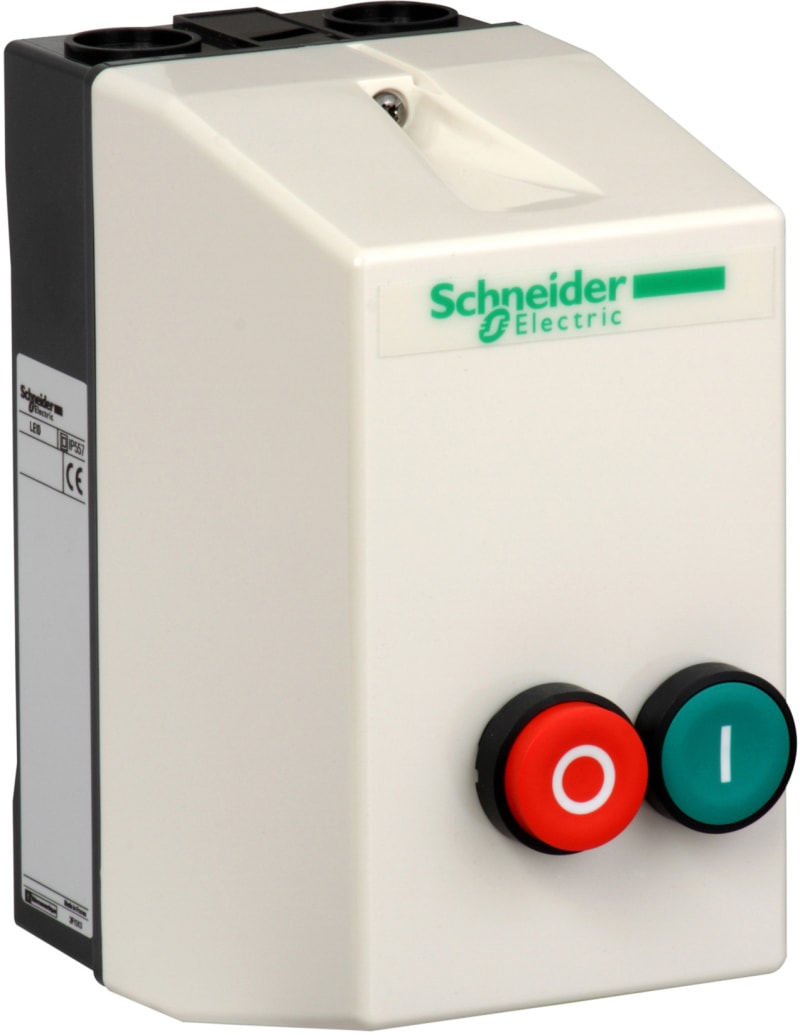

Schneider Electric TeSys LE - enclosed DOL starter - 18 A - 230 V AC coil LE1D18P7

Schneider Electric LE1D18P7 Motor starter Enclosed 18A230VAC, without isolating function.

Manufacturer part number (MPN)

LE1D18P7

EAN / GTIN

3389110541366

Sales unit

pcs

Package quantity

22 pcs

Voltage

230 V AC

Range

TeSys

Product name

TeSys LE

Device short name

LE1D

Product or component type

Enclosed DOL starter

Device application

Standard

Utilisation category

AC-3

Device composition

Thermal overload relay ordered separately; Contactor

Control type

Push-button start green I; Push-button stop/reset red O

Motor power kW

10 kW at 500 V AC 50/60 Hz; 10 kW at 660/690 V AC 50/60 Hz; 4 kW at 220/230 V AC 50/60 Hz; 9 kW at 415 V AC 50/60 Hz; 9 kW at 440 V AC 50/60 Hz; 7.5 kW at 380/400 V AC 50/60 Hz

[Uc] control circuit voltage

230 V AC 50/60 Hz

[Ith] Conventional free air thermal current

17 A

Cable entry number

2 ISO20 top; 2 ISO25 top; 2 ISO20 bottom; 2 ISO25 bottom

Width

101 mm

Height

201 mm

Depth

153.5 mm

Product weight

1.015 kg

Standards

IEC 60947-4-1; UL 60947-4-1

Product certifications

CB Scheme; UL; CE; UKCA

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 60529

Ambient air temperature for operation

-5…40 °C

Material

Polycarbonate

Environmental characteristic

Standard environment

Number of Units in Package 1

1

Number of Units in Package 2

22

Country of origin

FR

Warranty (in months)

18

With transformer

No

Rated operation power at AC-3, 400 V

7.5 kW

Number of command positions

2

Number of auxiliary contacts as normally open contact

1

Number of auxiliary contacts as normally closed contact

1

Suitable for emergency stop

No

Rated operation current Ie

18 A

Supporting protocol for LON

No

Supporting protocol for TCP/IP

No

Supporting protocol for ASI

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for other bus systems

No

External reset possible

Yes

Suitable for rail mounting

No

Rated control supply voltage AC 50 Hz

230 V

Rated control supply voltage AC 60 Hz

230 V

Degree of protection (IP)

IP65

Supporting protocol for SERCOS

No

Supporting protocol for INTERBUS-Safety

No

With short-circuit release

No

With fuse

No

Type of electrical connection of main circuit

Screw connection

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Voltage type for actuating

AC

Type of motor starter

Direct online starter (DOL)

Rated operation power at AC-3, 230 V, 3-phase

4 kW

Rated power, 460 V, 60 Hz, 3-phase

7.5 kW

Rated power, 575 V, 60 Hz, 3-phase

10 kW

Rated operation current at AC-3, 400 V

18 A

Ambient temperature, upper operating limit

40 °C

Temperature compensated overload protection

No

HS Code

8531.80
